KP36L- (1969)
Toyota Toyota1000
Production
Nov 1969
-
Aug 1988
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

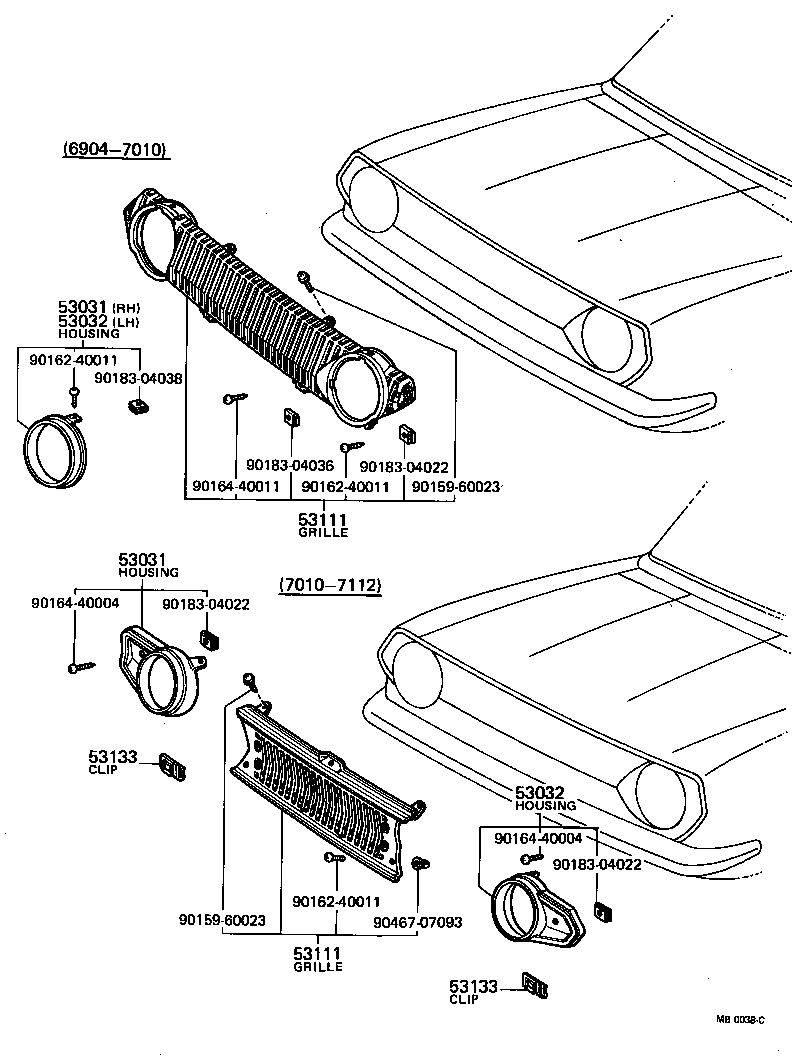

(6904-7112)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19066 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53131-19065 |
KP3# |
1 | ||
| 53031-19025 |
KP3# |
1 | ||
| 53131-19067 |
KP3# |
1 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19066 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53131-19065 |
KP3# |
1 | ||
| 53031-19025 |
KP3# |
1 | ||
| 53131-19067 |
KP3# |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19065 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53032-19015 |
KP3# |
1 | ||
| 53132-19066 |
KP3# |
1 | ||
| 53132-19067 |
KP3# |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19065 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53032-19015 |
KP3# |
1 | ||
| 53132-19066 |
KP3# |
1 | ||
| 53132-19067 |
KP3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19088 |
KP3# |
1 | ||
| 53101-19355 |
KP3# |
1 | ||
| 53101-19087 |
KP3# |
1 | ||
| 53101-19086 |
KP3# |
1 | ||
| 53101-19085 |
KP3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19088 |
KP3# |
1 | ||
| 53101-19355 |
KP3# |
1 | ||
| 53101-19087 |
KP3# |
1 | ||
| 53101-19086 |
KP3# |
1 | ||
| 53101-19085 |
KP3# |
1 | ||
| 53133 - CLIP, HEADLAMP RIM | ||||
| 53133-10031 |
KP3# |
2 | ||
| 53133 - CLIP, HEADLAMP RIM | ||||
| 53133-10031 |
KP3# |
2 | ||
| Common parts | ||||
| 90159-60023 | ||||
| 90162-40011 | ||||
| 90164-40004 | ||||
| 90164-40011 | ||||
| 90183-04022 | ||||
| 90183-04036 | ||||
| 90183-04038 | ||||
| 90467-07093 | ||||

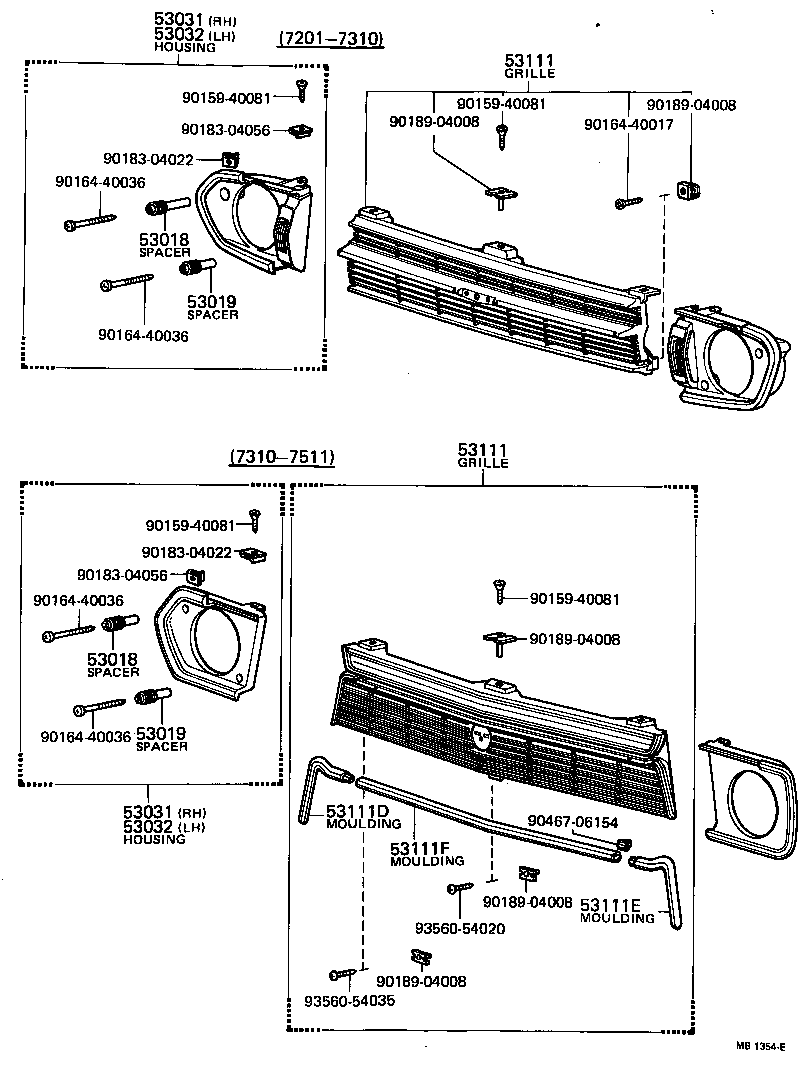

(7201-7511)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53018 - SPACER SUB-ASSY, HEADLAMP HOUSING, NO.1 | ||||
| 53018-10010 |
KP3# L=46.5 |
2 | ||
| 53018 - SPACER SUB-ASSY, HEADLAMP HOUSING, NO.1 | ||||
| 53018-10010 |
KP3# L=46.5 |
2 | ||
| 53019 - SPACER SUB-ASSY, HEADLAMP HOUSING, NO.2 | ||||
| 53019-10010 |
KP3# L=36 |
2 | ||
| 53019 - SPACER SUB-ASSY, HEADLAMP HOUSING, NO.2 | ||||
| 53019-10010 |
KP3# L=36 |
2 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19066 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53131-19065 |
KP3# |
1 | ||
| 53031-19025 |
KP3# |
1 | ||
| 53131-19067 |
KP3# |
1 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19066 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53131-19065 |
KP3# |
1 | ||
| 53031-19025 |
KP3# |
1 | ||
| 53131-19067 |
KP3# |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19065 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53032-19015 |
KP3# |
1 | ||
| 53132-19066 |
KP3# |
1 | ||
| 53132-19067 |
KP3# |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19065 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53032-19015 |
KP3# |
1 | ||
| 53132-19066 |
KP3# |
1 | ||
| 53132-19067 |
KP3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19088 |
KP3# |
1 | ||
| 53101-19355 |
KP3# |
1 | ||
| 53101-19087 |
KP3# |
1 | ||
| 53101-19086 |
KP3# |
1 | ||
| 53101-19085 |
KP3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19088 |
KP3# |
1 | ||
| 53101-19355 |
KP3# |
1 | ||
| 53101-19087 |
KP3# |
1 | ||
| 53101-19086 |
KP3# |
1 | ||
| 53101-19085 |
KP3# |
1 | ||
| 53111D - MOULDING, RADIATOR GRILLE, RH | ||||
| 53138-10050 |
KP3# |
1 | ||
| 53111E - MOULDING, RADIATOR GRILLE, LH | ||||
| 53139-10060 |
KP3# |
1 | ||
| 53111F - MOULDING, RADIATOR GRILLE, CENTER | ||||
| 53125-10011 |
KP3# |
1 | ||
| Common parts | ||||
| 90159-40081 | ||||
| 90164-40017 | ||||
| 90164-40036 | ||||
| 90183-04022 | ||||
| 90183-04056 | ||||
| 90189-04008 | ||||
| 90467-06154 | ||||
| 93560-54020 | ||||
| 93560-54035 | ||||

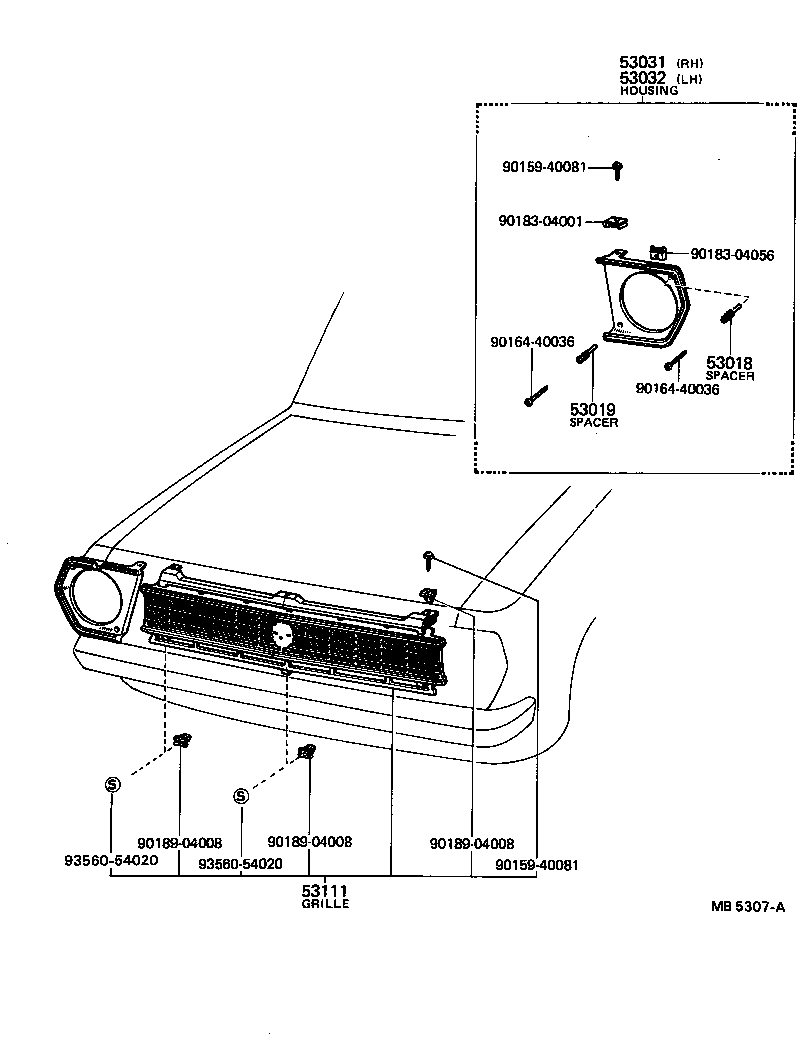

(7511- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53018 - SPACER SUB-ASSY, HEADLAMP HOUSING, NO.1 | ||||
| 53018-10010 |
KP3# L=46.5 |
2 | ||
| 53019 - SPACER SUB-ASSY, HEADLAMP HOUSING, NO.2 | ||||
| 53019-10010 |
KP3# L=36 |
2 | ||
| 53031 - HOUSING, HEADLAMP, RH | ||||
| 53131-19066 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53131-19065 |
KP3# |
1 | ||
| 53031-19025 |
KP3# |
1 | ||
| 53131-19067 |
KP3# |
1 | ||
| 53032 - HOUSING, HEADLAMP, LH | ||||
| 53132-19065 |
KP3# |
1 | ||
| 53031-19015 |
KP3# |
1 | ||
| 53032-19015 |
KP3# |
1 | ||
| 53132-19066 |
KP3# |
1 | ||
| 53132-19067 |
KP3# |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-19088 |
KP3# |
1 | ||
| 53101-19355 |
KP3# |
1 | ||
| 53101-19087 |
KP3# |
1 | ||
| 53101-19086 |
KP3# |
1 | ||
| 53101-19085 |
KP3# |
1 | ||
| Common parts | ||||
| 90159-40081 | ||||
| 90164-40036 | ||||
| 90183-04001 | ||||
| 90183-04056 | ||||
| 90189-04008 | ||||
| 93560-54020 | ||||
