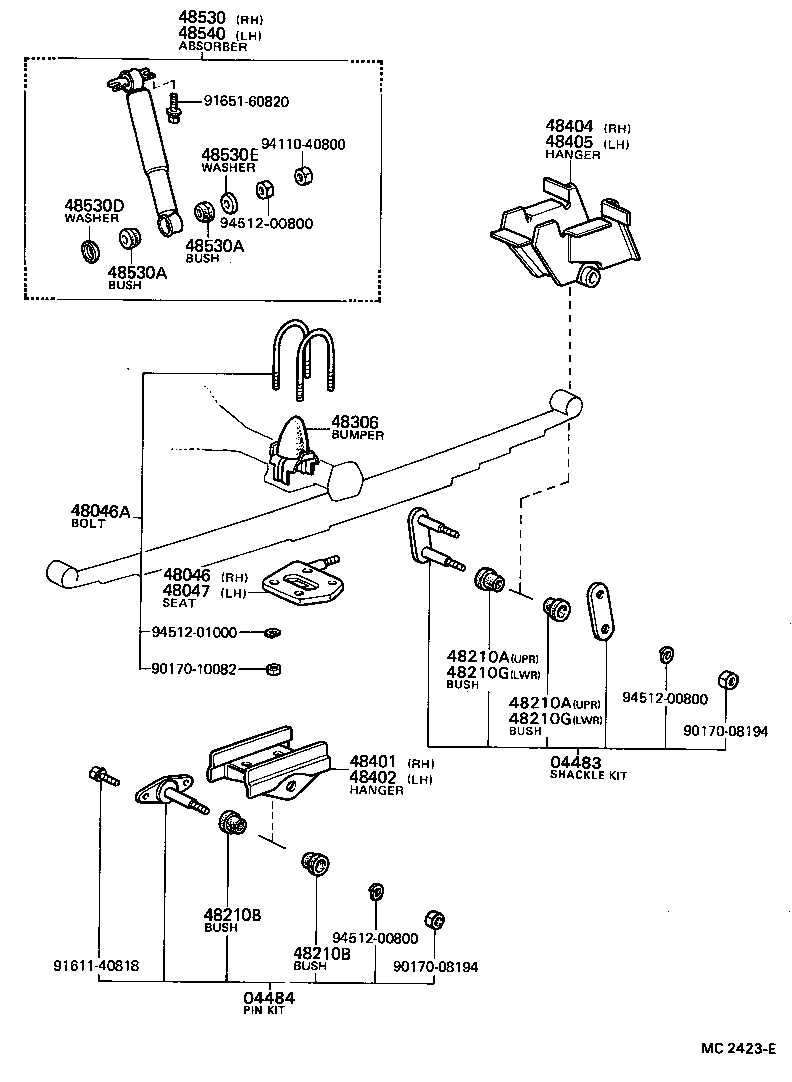

KP36L- (1969)
Toyota Toyota1000
(7310- )KP36,37
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-11060 |
KP36..PIC |
4 | ||
| 48241-10070 |
KP36,37..PIC RR |
2 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11071 |
KP36,37..PIC FR |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-11060 |
KP36..PIC |
4 | ||
| 48241-10070 |
KP36,37..PIC RR |
2 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11071 |
KP36,37..PIC FR |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-11060 |
KP36..PIC |
4 | ||
| 48241-10070 |
KP36,37..PIC RR |
2 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11071 |
KP36,37..PIC FR |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-11070 |
KP36..PIC |
2 | ||
| 48242-11070 |
KP36..PIC |
2 | ||
| 48242-11071 |
KP36,37 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-11070 |
KP36..PIC |
2 | ||
| 48242-11070 |
KP36..PIC |
2 | ||
| 48242-11071 |
KP36,37 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-11070 |
KP36..PIC |
2 | ||
| 48242-11070 |
KP36..PIC |
2 | ||
| 48242-11071 |
KP36,37 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-11070 |
KP36..PIC |
2 | ||
| 48242-11070 |
KP36..PIC |
2 | ||
| 48242-11071 |
KP36,37 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-11060 |
KP36..PIC |
2 | ||
| 48247-11071 |
KP36,37..PIC |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-11060 |
KP36..PIC |
2 | ||
| 48247-11071 |
KP36,37..PIC |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-11010 |
KP36 |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-11010 |
KP36 |
2 | ||
| Common parts | ||||
| 90999-90202 | ||||
| 94110-40800 | ||||
| 95111-00612 | ||||
| 95111-00613 | ||||
| 95111-00816 | ||||
| 95111-00819 | ||||
(6911- )PIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-11031 |
KP36,37..PIC |
2 | ||
| 04483-11030 |
KP36..PIC |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04484-12010 |
KP36..PIC |
2 | ||
| 04484-12020 |
KP36,37..PIC |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-11030 |
KP36,37..PIC |
1 | ||
| 48046-13011 |
KP36..PIC |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-10073 |
KP36,37..PIC |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-11030 |
KP36,37..PIC |
1 | ||
| 48047-13011 |
KP36..PIC |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-10015 |
KP3# |
4 | ||
| 90385-10015 |
KP36,37 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-10015 |
KP3# |
4 | ||
| 90385-10015 |
KP36,37 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-10014 |
KP36,37..PIC |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-10014 |
KP36,37..PIC |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-10015 |
KP3# |
4 | ||
| 90385-10015 |
KP36,37 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-10015 |
KP3# |
4 | ||
| 90385-10015 |
KP36,37 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-13011 |
KP36,37..PIC |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 57701-11010 |
KP36,37..PIC |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 57701-11010 |
KP36,37..PIC |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 57703-11010 |
KP36,37..PIC |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 57703-11010 |
KP36,37..PIC |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-19095 |
KP36,37..PIC |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-12008 |
KP3# |
4 | ||
| 90385-12008 |
KP36,37 |
4 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-12008 |
KP3# |
4 | ||
| 90385-12008 |
KP36,37 |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03001 |
KP3# |
2 | ||
| 90948-03002 |
KP36,37 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03013 |
KP36,37 |
2 | ||
| 90948-03002 |
KP3# |
2 | ||
| 90948-03001 |
KP36 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-19095 |
KP36,37..PIC |
1 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-10082 | ||||
| 91611-40818 | ||||
| 91651-60820 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
(6904-7310)KP36
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-11070 |
KP36..PIC |
1 | ||
| 48210-11050 |
KP36 |
1 | ||
| 48210-11071 |
KP36,37..PIC |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-11060 |
KP36..PIC |
4 | ||
| 48241-10070 |
KP36,37..PIC RR |
2 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11071 |
KP36,37..PIC FR |
2 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-11060 |
KP36..PIC |
4 | ||
| 48241-10070 |
KP36,37..PIC RR |
2 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11060 |
KP36 |
4 | ||
| 48241-11071 |
KP36,37..PIC FR |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-11070 |
KP36..PIC |
2 | ||
| 48242-11070 |
KP36..PIC |
2 | ||
| 48242-11071 |
KP36,37 |
2 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48241-11070 |
KP36..PIC |
2 | ||
| 48242-11070 |
KP36..PIC |
2 | ||
| 48242-11071 |
KP36,37 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-11070 |
KP36..PIC |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-11060 |
KP36..PIC |
2 | ||
| 48247-11071 |
KP36,37..PIC |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-11060 |
KP36..PIC |
2 | ||
| 48247-11071 |
KP36,37..PIC |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-10012 |
KP36..PIC |
8 | ||
| 48252-10012 |
KP3# |
8 | ||
| 48252-30010 |
KP36,37 |
8 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-11070 |
KP36..PIC |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-11010 |
KP36 |
2 | ||
| 48282 - SEAT, REAR HELPER SPRING | ||||
| 48282-11010 |
KP36 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 95111-00612 | ||||
| 95111-00819 | ||||
