KP36L- (1969)
Toyota Toyota1000
Production
Nov 1969
-
Aug 1988
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7004)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12010 |
KP3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33213-12010 |
KP3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33215-12010 |
KP3# |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-12010 |
KP3# |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 90523-08011 |
KP3# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-12010 |
KP3# |
1 | ||
| 33223-12060 |
KP36 |
1 | ||
| 33223C - RING, SHAFT SNAP(FOR SHIFT ARM PIVOT) | ||||
| 90520-12072 |
KP3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-12030 |
KP3# |
1 | ||
| 33244-10020 |
KP36 |
1 | ||
| 33241-12010 |
KP3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33243-12010 |
KP3# |
1 | ||
| 33243-12031 |
KP3# |
1 | ||
| 33243-12030 |
KP3# |
1 | ||
| 33242-10012 |
KP36 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33245-12031 |
KP36 |
1 | ||
| 33245-12030 |
KP3# |
1 | ||
| 33245-12010 |
KP3# |
1 | ||
| 33243-10021 |
KP36 |
1 | ||
| 33266 - PLATE, SHIFT INTER LOCK | ||||
| 33266-12011 |
KP3# ISO |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90101-05245 |
KP3# 0.8P ISO |
1 | ||
| 33267 - BOLT, SHIFT INTER LOCK PLATE SET, NO.1 | ||||
| 33267-12010 |
KP3# |
1 | ||
| 33268 - BOLT, SHIFT INTER LOCK PLATE SET, NO.2 | ||||
| 33268-12010 |
KP3# |
2 | ||
| 33268 - BOLT, SHIFT INTER LOCK PLATE SET, NO.2 | ||||
| 33268-12010 |
KP3# |
2 | ||
| 33268A - SPRING, TORSION (FOR SHIFT INTER LOCK PLATE SET BOLT) | ||||
| 90508-25108 |
KP3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
KP3# L=17.5 OD=12 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
KP3# L=16.1,WD=1.6,CW=6.25 |
3 | ||
| 90501-16031 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 90501-16288 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KP3# OD=8 |
3 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-12010 |
KP3# |
1 | ||
| 33283-12020 |
KP3# |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90501-16371 |
KP3# |
1 | ||
| 90501-16553 |
KP3# |
1 | ||
| 33283B - PIN, STRAIGHT (FOR REVERSE RESTRICT PIN) | ||||
| 90250-05182 |
KP3# |
1 | ||
| 90250-04119 |
KP3# |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94522-01000 | ||||
(7004-8501)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-12030 |
KP3# |
1 | ||
| 33203-12010 |
KP3# |
1 | ||
| 33251-10041 |
KP36 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12010 |
KP3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33213-12010 |
KP3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33215-12010 |
KP3# |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-12010 |
KP3# |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 90523-08011 |
KP3# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-12010 |
KP3# |
1 | ||
| 33223-12060 |
KP36 |
1 | ||
| 33223C - RING, SHAFT SNAP(FOR SHIFT ARM PIVOT) | ||||
| 90520-12072 |
KP3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-12030 |
KP3# |
1 | ||
| 33244-10020 |
KP36 |
1 | ||
| 33241-12010 |
KP3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33243-12010 |
KP3# |
1 | ||
| 33243-12031 |
KP3# |
1 | ||
| 33243-12030 |
KP3# |
1 | ||
| 33242-10012 |
KP36 |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33245-12031 |
KP36 |
1 | ||
| 33245-12030 |
KP3# |
1 | ||
| 33245-12010 |
KP3# |
1 | ||
| 33243-10021 |
KP36 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-12010 |
KP3# |
2 | ||
| 90250-05197 |
KP3# L=9.9,OD=5 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-12010 |
KP3# |
2 | ||
| 90250-05197 |
KP3# L=9.9,OD=5 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05197 |
KP3# L=9.9,OD=5 |
1 | ||
| 33264-12010 |
KP3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
KP3# L=17.5 OD=12 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
KP3# L=16.1,WD=1.6,CW=6.25 |
3 | ||
| 90501-16031 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 90501-16288 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KP3# OD=8 |
3 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-12010 |
KP3# |
1 | ||
| 33283-12020 |
KP3# |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90501-16371 |
KP3# |
1 | ||
| 90501-16553 |
KP3# |
1 | ||
| 33283B - PIN, STRAIGHT (FOR REVERSE RESTRICT PIN) | ||||
| 90250-05182 |
KP3# |
1 | ||
| 90250-04119 |
KP3# |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-12040 |
KP3# |
1 | ||
| 33521-10140 |
KP36 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90254-05001 |
KP3# |
1 | ||
| Common parts | ||||
| 90205-10001 | ||||
| 94110-41000 | ||||
(8501- )

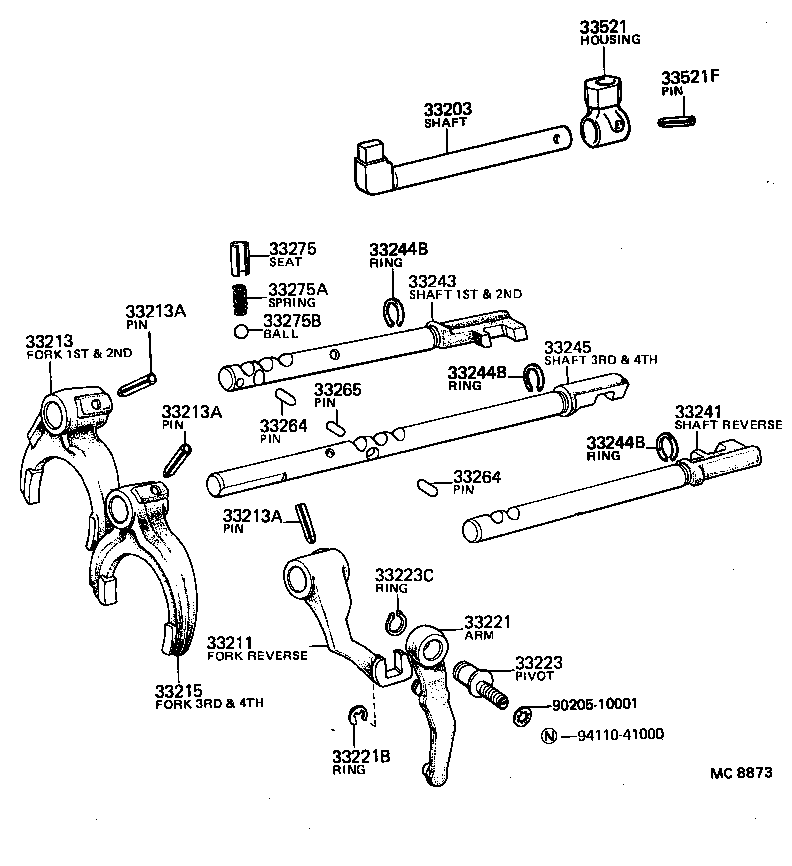

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-12030 |
KP3# |
1 | ||
| 33203-12010 |
KP3# |
1 | ||
| 33251-10041 |
KP36 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12010 |
KP3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33213-12010 |
KP3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33215-12010 |
KP3# |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-12010 |
KP3# |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 90523-08011 |
KP3# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-12010 |
KP3# |
1 | ||
| 33223-12060 |
KP36 |
1 | ||
| 33223C - RING, SHAFT SNAP(FOR SHIFT ARM PIVOT) | ||||
| 90520-12072 |
KP3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-12030 |
KP3# |
1 | ||
| 33244-10020 |
KP36 |
1 | ||
| 33241-12010 |
KP3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33243-12010 |
KP3# |
1 | ||
| 33243-12031 |
KP3# |
1 | ||
| 33243-12030 |
KP3# |
1 | ||
| 33242-10012 |
KP36 |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12001 |
KP36 |
3 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12001 |
KP36 |
3 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12001 |
KP36 |
3 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33245-12031 |
KP36 |
1 | ||
| 33245-12030 |
KP3# |
1 | ||
| 33245-12010 |
KP3# |
1 | ||
| 33243-10021 |
KP36 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-12010 |
KP3# |
2 | ||
| 90250-05197 |
KP3# L=9.9,OD=5 |
2 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 33264-12010 |
KP3# |
2 | ||
| 90250-05197 |
KP3# L=9.9,OD=5 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05197 |
KP3# L=9.9,OD=5 |
1 | ||
| 33264-12010 |
KP3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
KP3# L=17.5 OD=12 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14237 |
KP3# L=16.1,WD=1.6,CW=6.25 |
3 | ||
| 90501-16031 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 90501-16288 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KP3# OD=8 |
3 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-12040 |
KP3# |
1 | ||
| 33521-10140 |
KP36 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90254-05001 |
KP3# |
1 | ||
| Common parts | ||||
| 90205-10001 | ||||
| 94110-41000 | ||||
