KP36L- (1969)

Toyota Toyota1000

Production Nov 1969 - Aug 1988
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7404)

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 9009220604 9009900102 9009900111 9009900902 9009901090 9009902169 9009904269 9009904884 9009905809 9017908136 9162140840 9411040800 9451100500 9451100600 9451100600 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-13060

2K..KP36

12V 0.6KW

 1
28011-22020

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-12012

2K..KP3#..LHD

12V 0.6KW

 1
28100-12020

2K..KP3#..LHD

12V 0.8KW

 1
28100-12021

2K..KP3#..LHD

12V 0.8KW

 1
28100-24031

2K,3KH..KP3#

12V 0.6W,12V 0.6KW

 1
28100-13061

2K..KP36

12V 0.6KW,12V 0.6KW

 1
28100-24022

2K..KP3#

12V 0.8KW

 1
28100-12011

2K..KP3#..LHD

12V 0.6KW

 1
28100-24030

2K..KP3#

12V 0.6KW

 1
28100-13060

2K..KP36

12V 0.6KW,12V 0.6KW

 1
28100-24023

2K..KP30,36..LHD

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-12011

2K..KP3#..LHD

12V 0.6KW,0.8KW

 1
28110-12010

2K..KP3#..LHD

12V 0.6KW,0.8KW

 1
28110-13060

2K..KP36

12V 0.6KW

 1
28110-24010

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
90099-10158

2K..KP36

12V 0.6KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-13060

2K..KP36

12V 0.6KW

 1
28113-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-25010

2K,3KH..KP3#

12V 0.6KW

 1
28114-25010

2K..KP3#

12V 0.6KW,0.8KW

 1
28114-41011

2K..KP3#

12V 0.6KW,0.8KW

 1
28114-25010

2K..KP30,36

12V 0.8KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41012

2K..KP3#

12V 0.6KW,0.8KW

 1
28117-41013

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-41012

2K..KP3#

12V 0.6KW,0.8KW

 1
28118-41013

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-89101

2K..KP3#

12V 0.8KW

 1
28120-24020

2K..KP30,36

12V 0.8KW

 1
28120-22011

2K..KP3#

12V 0.6KW

 1
28120-13060

2K..KP36

12V 0.6KW

 1
28120-24030

2K,3KH..KP3#

12V 0.6KW

 1
28121 - COIL, STARTER FIELD
28121-40014

2K..KP3#

12V 0.8KW

 1
28121-22011

2K,3KH..KP3#

12V 0.6KW

 1
28121-36040

2K..KP30,36

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-10011

2K,3KH..KP3#

12V 0.6KW

 4
28123-40012

2K..KP30,36

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28130-13060

2K..KP36

12V 0.6KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10039

2K,3KH..KP3#

12V 0.6KW,0.8KW,U/S 0.3

 1
90099-10040

2K,3KH..KP3#

12V 0.6KW,0.8KW,U/S 0.5

 1
28131-20010

2K,3KH..KP3#

12V 0.6KW,0.8KW,STD

 1
90099-10157

2K..KP36

12V 0.6KW

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28166-41010

2K..KP3#

12V 0.6KW,0.8KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012

2K..KP30,36

12V 0.8KW

 1
28140-22010

2K..KP3#

12V 0.6KW

 1
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-10020

2K..KP36

12V 0.6KW

 4
28143-40010

2K,3KH..KP3#

12V 0.6KW,0.8KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

2K..KP3#

12V 0.6KW,0.8KW

 1
28150-24010

2K..KP3#

12V 0.8KW

 1
28150-24060

2K,3KH..KP3#

12V 0.6KW

 1
28150-22011

2K..KP3#

12V 0.6KW

 1
28150-24020

2K..KP30,36..LHD

12V 0.8KW

 1
28150-10020

2K..KP36

12V 0.6KW

 1
28160 - ARMATURE ASSY, STARTER
28160-12020

2K..KP3#..LHD

12V 0.8KW

 1
28160-22010

2K..KP3#

12V 0.6KW

 1
28160-22021

2K..KP30,36

12V 0.8KW

 1
28160-10020

2K..KP36

12V 0.6KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28163-10020

2K..KP36

12V 0.6KW

 2
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07124

2K..KP36

12V 0.6KW

 1
90099-07047

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
Common parts
90092-20604
90099-00102
90099-00111
90099-00902
90099-01090
90099-02169
90099-04269
90099-04884
90099-05809
90179-08136
91621-40840
94110-40800
94511-00500
94511-00600
94511-00800

(7404-8608)

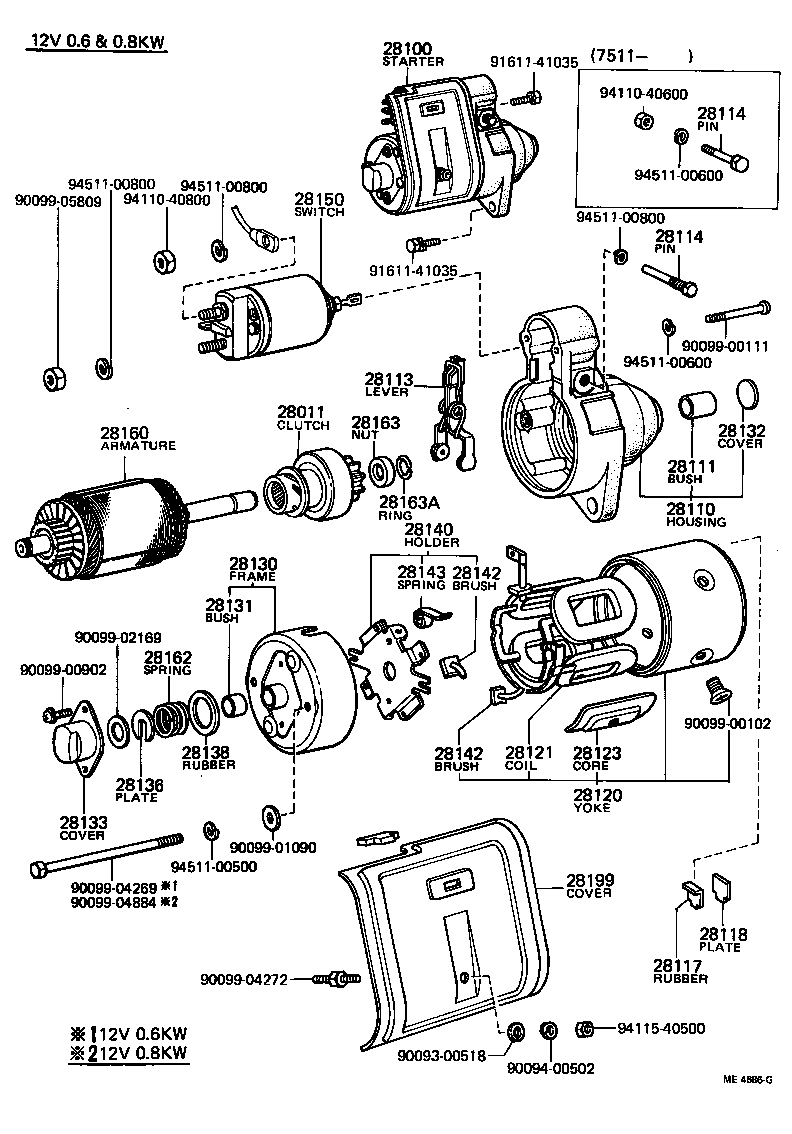

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28114 28114 28117 28118 28120 28121 28123 28130 28131 28132 28133 28136 28138 28140 28142 28142 28143 28150 28160 28162 28163 28163A 28199 9009300518 9009400502 9009900102 9009900111 9009900902 9009901090 9009902169 9009904269 9009904272 9009904884 9009905809 9161141035 9161141035 9411040600 9411040800 9411540500 9451100500 9451100600 9451100600 9451100800 9451100800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-13060

2K..KP36

12V 0.6KW

 1
28011-22020

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-12012

2K..KP3#..LHD

12V 0.6KW

 1
28100-12020

2K..KP3#..LHD

12V 0.8KW

 1
28100-12021

2K..KP3#..LHD

12V 0.8KW

 1
28100-24031

2K,3KH..KP3#

12V 0.6W,12V 0.6KW

 1
28100-13061

2K..KP36

12V 0.6KW,12V 0.6KW

 1
28100-24022

2K..KP3#

12V 0.8KW

 1
28100-12011

2K..KP3#..LHD

12V 0.6KW

 1
28100-24030

2K..KP3#

12V 0.6KW

 1
28100-13060

2K..KP36

12V 0.6KW,12V 0.6KW

 1
28100-24023

2K..KP30,36..LHD

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-12011

2K..KP3#..LHD

12V 0.6KW,0.8KW

 1
28110-12010

2K..KP3#..LHD

12V 0.6KW,0.8KW

 1
28110-13060

2K..KP36

12V 0.6KW

 1
28110-24010

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
90099-10158

2K..KP36

12V 0.6KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-13060

2K..KP36

12V 0.6KW

 1
28113-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-25010

2K,3KH..KP3#

12V 0.6KW

 1
28114-25010

2K..KP3#

12V 0.6KW,0.8KW

 1
28114-41011

2K..KP3#

12V 0.6KW,0.8KW

 1
28114-25010

2K..KP30,36

12V 0.8KW

 1
28114 - PIN, STARTER DRIVE LEVER SET
28114-25010

2K,3KH..KP3#

12V 0.6KW

 1
28114-25010

2K..KP3#

12V 0.6KW,0.8KW

 1
28114-41011

2K..KP3#

12V 0.6KW,0.8KW

 1
28114-25010

2K..KP30,36

12V 0.8KW

 1
28117 - RUBBER(FOR STARTER YOKE)
28117-41012

2K..KP3#

12V 0.6KW,0.8KW

 1
28117-41013

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28118 - PLATE(FOR STARTER YOKE)
28118-41012

2K..KP3#

12V 0.6KW,0.8KW

 1
28118-41013

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-89101

2K..KP3#

12V 0.8KW

 1
28120-24020

2K..KP30,36

12V 0.8KW

 1
28120-22011

2K..KP3#

12V 0.6KW

 1
28120-13060

2K..KP36

12V 0.6KW

 1
28120-24030

2K,3KH..KP3#

12V 0.6KW

 1
28121 - COIL, STARTER FIELD
28121-40014

2K..KP3#

12V 0.8KW

 1
28121-22011

2K,3KH..KP3#

12V 0.6KW

 1
28121-36040

2K..KP30,36

12V 0.8KW

 1
28123 - CORE, STARTER POLE
28123-10011

2K,3KH..KP3#

12V 0.6KW

 4
28123-40012

2K..KP30,36

12V 0.8KW

 4
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28130-13060

2K..KP36

12V 0.6KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10039

2K,3KH..KP3#

12V 0.6KW,0.8KW,U/S 0.3

 1
90099-10040

2K,3KH..KP3#

12V 0.6KW,0.8KW,U/S 0.5

 1
28131-20010

2K,3KH..KP3#

12V 0.6KW,0.8KW,STD

 1
90099-10157

2K..KP36

12V 0.6KW

 1
28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING)
28166-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28166-41010

2K..KP3#

12V 0.6KW,0.8KW

 1
28133 - COVER, BEARING(FOR END FRAME)
28132-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28136 - PLATE, STARTER LOCK
28136-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28138 - RUBBER(FOR STARTER BEARING COVER)
28138-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-41012

2K..KP30,36

12V 0.8KW

 1
28140-22010

2K..KP3#

12V 0.6KW

 1
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-10020

2K..KP36

12V 0.6KW

 4
28143-40010

2K,3KH..KP3#

12V 0.6KW,0.8KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

2K..KP3#

12V 0.6KW,0.8KW

 1
28150-24010

2K..KP3#

12V 0.8KW

 1
28150-24060

2K,3KH..KP3#

12V 0.6KW

 1
28150-22011

2K..KP3#

12V 0.6KW

 1
28150-24020

2K..KP30,36..LHD

12V 0.8KW

 1
28150-10020

2K..KP36

12V 0.6KW

 1
28160 - ARMATURE ASSY, STARTER
28160-12020

2K..KP3#..LHD

12V 0.8KW

 1
28160-22010

2K..KP3#

12V 0.6KW

 1
28160-22021

2K..KP30,36

12V 0.8KW

 1
28160-10020

2K..KP36

12V 0.6KW

 1
28162 - SPRING, STARTER BRAKE
28162-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28163-10020

2K..KP36

12V 0.6KW

 2
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07124

2K..KP36

12V 0.6KW

 1
90099-07047

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28199 - COVER, STARTER
28159-13060

2K..KP36

12V 0.6KW

 1
28199-24030

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
Common parts
90093-00518
90094-00502
90099-00102
90099-00111
90099-00902
90099-01090
90099-02169
90099-04269
90099-04272
90099-04884
90099-05809
91611-41035
94110-40600
94110-40800
94115-40500
94511-00500
94511-00600
94511-00800

(8608- )

Click highlighted areas on diagram

diagram 28011 28100 28110 28111 28113 28119 28120 28130 28131 2813826141 28142 28142 28142 28142 28143 28146 28149 28150 28160 28163 28163 28163A 28199 9009901524 9009904332 9009904343 9009905118 9009905178 9009912405 9017908146 9161161035 9411040800 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-13060

2K..KP36

12V 0.6KW

 1
28011-22020

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28100 - STARTER ASSY
28100-12012

2K..KP3#..LHD

12V 0.6KW

 1
28100-12020

2K..KP3#..LHD

12V 0.8KW

 1
28100-12021

2K..KP3#..LHD

12V 0.8KW

 1
28100-24031

2K,3KH..KP3#

12V 0.6W,12V 0.6KW

 1
28100-13061

2K..KP36

12V 0.6KW,12V 0.6KW

 1
28100-24022

2K..KP3#

12V 0.8KW

 1
28100-12011

2K..KP3#..LHD

12V 0.6KW

 1
28100-24030

2K..KP3#

12V 0.6KW

 1
28100-13060

2K..KP36

12V 0.6KW,12V 0.6KW

 1
28100-24023

2K..KP30,36..LHD

12V 0.8KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-12011

2K..KP3#..LHD

12V 0.6KW,0.8KW

 1
28110-12010

2K..KP3#..LHD

12V 0.6KW,0.8KW

 1
28110-13060

2K..KP36

12V 0.6KW

 1
28110-24010

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28111 - BUSH(FOR STARTER HOUSING)
28111-51011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
90099-10158

2K..KP36

12V 0.6KW

 1
28113 - LEVER, STARTER PINION DRIVE
28113-13060

2K..KP36

12V 0.6KW

 1
28113-41011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28119 - COVER, STARTER END FRAME
28199-15090

2K..KP36

12V 0.6KW

 1
28120 - YOKE ASSY, STARTER
28120-89101

2K..KP3#

12V 0.8KW

 1
28120-24020

2K..KP30,36

12V 0.8KW

 1
28120-22011

2K..KP3#

12V 0.6KW

 1
28120-13060

2K..KP36

12V 0.6KW

 1
28120-24030

2K,3KH..KP3#

12V 0.6KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-21011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28130-13060

2K..KP36

12V 0.6KW

 1
28131 - BUSH, COMMUTATOR END FRAME
90099-10039

2K,3KH..KP3#

12V 0.6KW,0.8KW,U/S 0.3

 1
90099-10040

2K,3KH..KP3#

12V 0.6KW,0.8KW,U/S 0.5

 1
28131-20010

2K,3KH..KP3#

12V 0.6KW,0.8KW,STD

 1
90099-10157

2K..KP36

12V 0.6KW

 1
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28142 - BRUSH, STARTER
28142-10020

2K..KP36

12V 0.6KW

 4
28142-10011

2K,3KH..KP3#

12V 0.6KW

 2
28142-21010

2K..KP30,36

12V 0.8KW

 4
28143 - SPRING, STARTER BRUSH
28143-10020

2K..KP36

12V 0.6KW

 4
28143-40010

2K,3KH..KP3#

12V 0.6KW,0.8KW

 4
28146 - HOLDER, STARTER BRUSH
28149-10020

2K..KP36

12V 0.6KW

 1
28149 - PLATE, STARTER
28141-10020

2K..KP36

12V 0.6KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-22011

2K..KP3#

12V 0.6KW,0.8KW

 1
28150-24010

2K..KP3#

12V 0.8KW

 1
28150-24060

2K,3KH..KP3#

12V 0.6KW

 1
28150-22011

2K..KP3#

12V 0.6KW

 1
28150-24020

2K..KP30,36..LHD

12V 0.8KW

 1
28150-10020

2K..KP36

12V 0.6KW

 1
28160 - ARMATURE ASSY, STARTER
28160-12020

2K..KP3#..LHD

12V 0.8KW

 1
28160-22010

2K..KP3#

12V 0.6KW

 1
28160-22021

2K..KP30,36

12V 0.8KW

 1
28160-10020

2K..KP36

12V 0.6KW

 1
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28163-10020

2K..KP36

12V 0.6KW

 2
28163 - NUT OR COLLAR, PINION STOP, STARTER
28163-40011

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28163-10020

2K..KP36

12V 0.6KW

 2
28163A - RING, SNAP(FOR STARTER PINION STOP NUT)
90099-07124

2K..KP36

12V 0.6KW

 1
90099-07047

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
28199 - COVER, STARTER
28159-13060

2K..KP36

12V 0.6KW

 1
28199-24030

2K,3KH..KP3#

12V 0.6KW,0.8KW

 1
Common parts
28138-26141
90099-01524
90099-04332
90099-04343
90099-05118
90099-05178
90099-12405
90179-08146
91611-61035
94110-40800
94511-00800
