KP36L- (1969)

Toyota Toyota1000

Production Nov 1969 - Aug 1988
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7304)

Click highlighted areas on diagram

diagram 1709 17700 17700 17700A 17700A 17700B 17700B 17700F 17700F 17705 17801 17841 17841 17845 17848 17848 9161140814 9161140814 9461210800 9461210800
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24324

2K..KP36

 1
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24324

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3KH..KP3#

 1
94271-00600

2K..KP36

 1
90175-06003

2K..KP36

 1
94270-00600

2K..KP3#

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3KH..KP3#

 1
94271-00600

2K..KP36

 1
90175-06003

2K..KP36

 1
94270-00600

2K..KP3#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2K,3KH..KP3#

 1
94711-90600

2K..KP3#

 1
90210-06023

2K..KP36

 1
90210-06001

2K..KP3#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2K,3KH..KP3#

 1
94711-90600

2K..KP3#

 1
90210-06023

2K..KP36

 1
90210-06001

2K..KP3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3KH..KP3#

L=102,S=12&30

 2
90116-06142

2K..KP36

 1
90116-06131

2K..KP36

L=102,S=12&30

 2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3KH..KP3#

L=102,S=12&30

 2
90116-06142

2K..KP36

 1
90116-06131

2K..KP36

L=102,S=12&30

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24160

2K,3KH..KP3#

 1
17705-24021

2K..KP3#

 1
17705-24170

2K..KP30,36

W/HOT AIR INTAKE

 1
17705-13011

2K..KP36

 1
17705-12010

2K..KP3#

 1
17705-24100

2K..KP3#

COLD SPEC,W/PCV

 1
17705-24163

2K..KP36

 1
17705-24320

2K..KP36

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24030

2K..KP36

 1
17801-24010

2K,3KH..KP3#

 1
17801-13020

2K..KP36

 1
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-24010

2K,3KH..KP3#

 1
17845-12010

2K..KP3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K..KP36

 1
90430-64139

2K..KP3#

 2
90430-63187

2K,3KH..KP3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K..KP36

 1
90430-64139

2K..KP3#

 2
90430-63187

2K,3KH..KP3#

 1
Common parts
91611-40814
94612-10800
Linked diagrams
1709

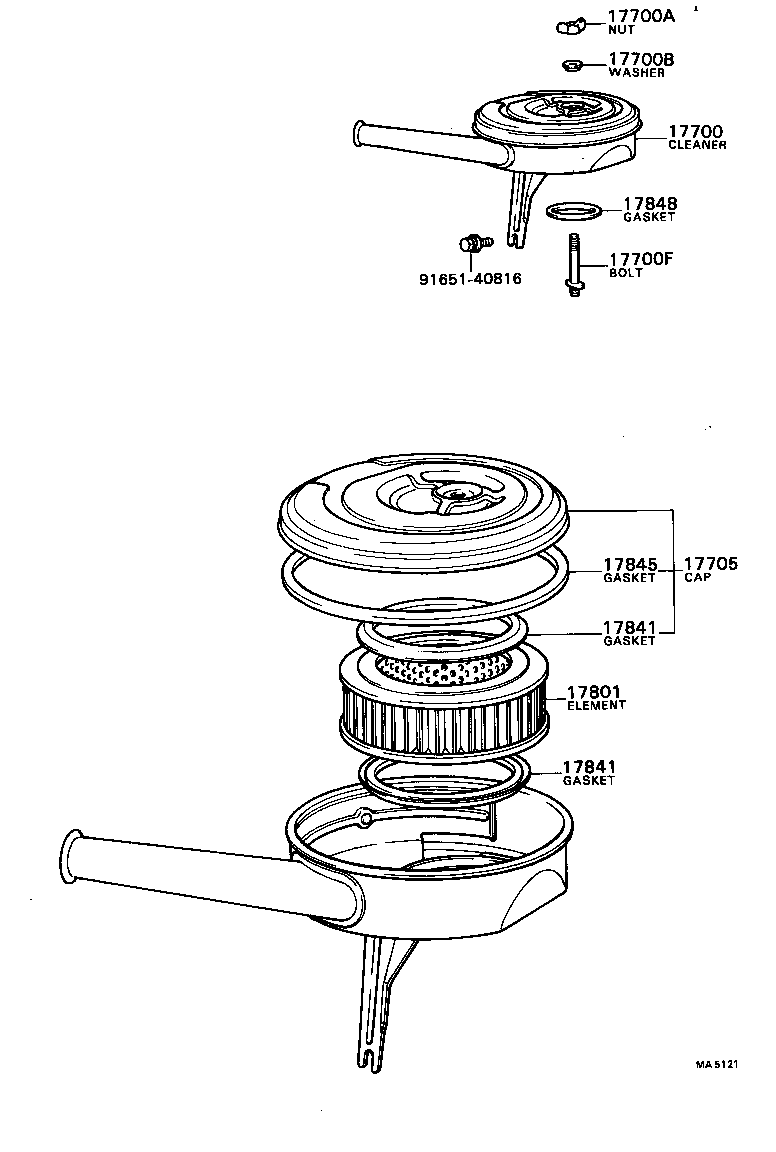

(7304-7511)

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17700F 17705 17801 17841 17841 17845 17848 9165140814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24324

2K..KP36

 1
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3KH..KP3#

 1
94271-00600

2K..KP36

 1
94270-00600

2K..KP3#

 1
90175-06003

2K..KP36

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2K,3KH..KP3#

 1
94711-90600

2K..KP3#

 1
90210-06023

2K..KP36

 1
90210-06001

2K..KP3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3KH..KP3#

L=102,S=12&30

 2
90116-06142

2K..KP36

 1
90116-06131

2K..KP36

L=102,S=12&30

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24160

2K,3KH..KP3#

 1
17705-24021

2K..KP3#

 1
17705-24170

2K..KP30,36

W/HOT AIR INTAKE

 1
17705-13011

2K..KP36

 1
17705-12010

2K..KP3#

 1
17705-24100

2K..KP3#

COLD SPEC,W/PCV

 1
17705-24163

2K..KP36

 1
17705-24320

2K..KP36

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24030

2K..KP36

 1
17801-24010

2K,3KH..KP3#

 1
17801-13020

2K..KP36

 1
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-24010

2K,3KH..KP3#

 1
17845-12010

2K..KP3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K..KP36

 1
90430-64139

2K..KP3#

 2
90430-63187

2K,3KH..KP3#

 1
Common parts
91651-40814
Linked diagrams
1709

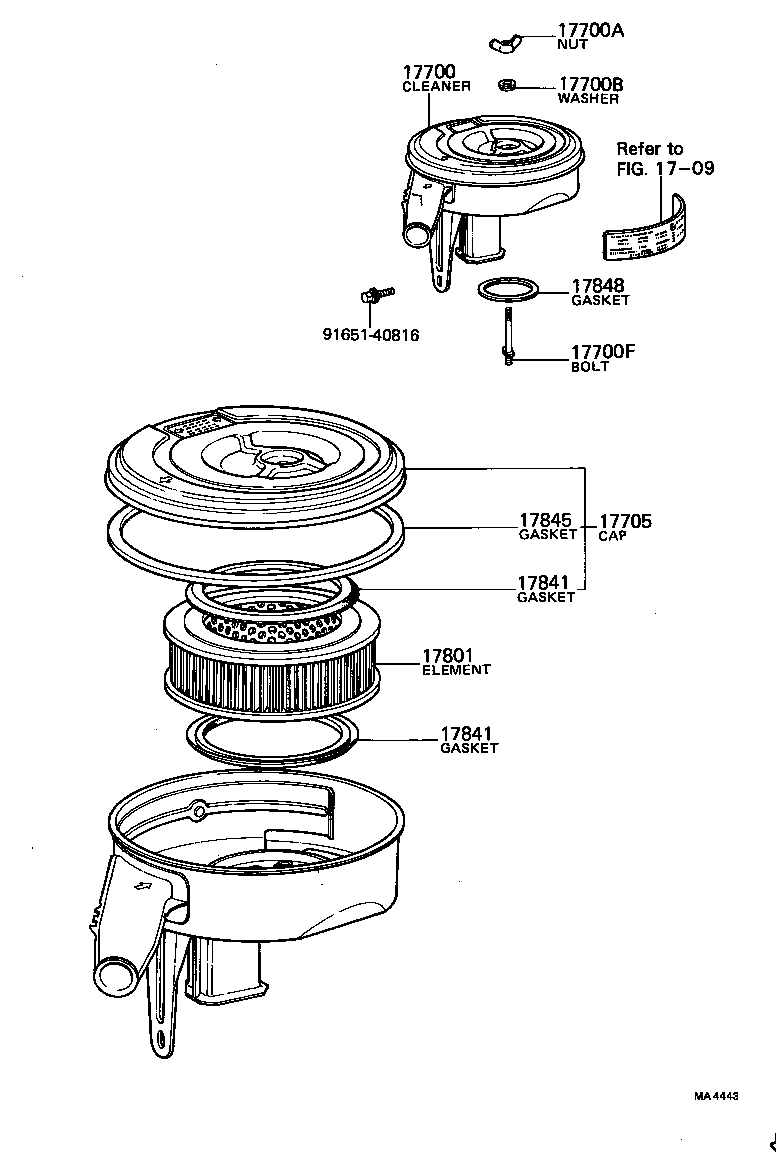

(7511-8012) ; (8012-8108)3KH

Click highlighted areas on diagram

diagram 1709 17700 17700A 17700B 17700F 17705 17801 17841 17841 17845 17848 9165140816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24324

2K..KP36

 1
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3KH..KP3#

 1
94271-00600

2K..KP36

 1
94270-00600

2K..KP3#

 1
90175-06003

2K..KP36

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2K,3KH..KP3#

 1
94711-90600

2K..KP3#

 1
90210-06023

2K..KP36

 1
90210-06001

2K..KP3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3KH..KP3#

L=102,S=12&30

 2
90116-06142

2K..KP36

 1
90116-06131

2K..KP36

L=102,S=12&30

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24160

2K,3KH..KP3#

 1
17705-24021

2K..KP3#

 1
17705-24170

2K..KP30,36

W/HOT AIR INTAKE

 1
17705-13011

2K..KP36

 1
17705-12010

2K..KP3#

 1
17705-24100

2K..KP3#

COLD SPEC,W/PCV

 1
17705-24163

2K..KP36

 1
17705-24320

2K..KP36

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24030

2K..KP36

 1
17801-24010

2K,3KH..KP3#

 1
17801-13020

2K..KP36

 1
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-24010

2K,3KH..KP3#

 1
17845-12010

2K..KP3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K..KP36

 1
90430-64139

2K..KP3#

 2
90430-63187

2K,3KH..KP3#

 1
Common parts
91651-40816
Linked diagrams
1709

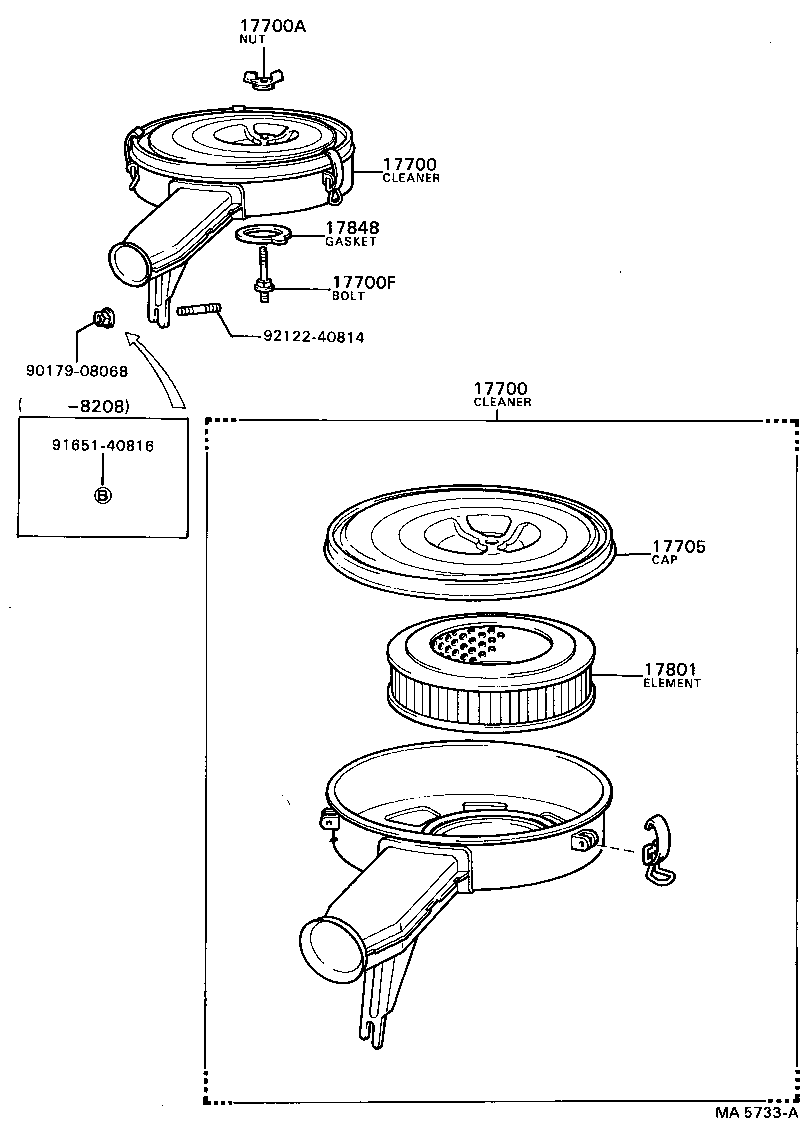

(8012-8201)2K

Click highlighted areas on diagram

diagram 17700 17700A 17700B 17700F 17705 17801 17841 17841 17845 17848 9165140816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24324

2K..KP36

 1
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3KH..KP3#

 1
94271-00600

2K..KP36

 1
94270-00600

2K..KP3#

 1
90175-06003

2K..KP36

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06023

2K,3KH..KP3#

 1
94711-90600

2K..KP3#

 1
90210-06023

2K..KP36

 1
90210-06001

2K..KP3#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3KH..KP3#

L=102,S=12&30

 2
90116-06142

2K..KP36

 1
90116-06131

2K..KP36

L=102,S=12&30

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24160

2K,3KH..KP3#

 1
17705-24021

2K..KP3#

 1
17705-24170

2K..KP30,36

W/HOT AIR INTAKE

 1
17705-13011

2K..KP36

 1
17705-12010

2K..KP3#

 1
17705-24100

2K..KP3#

COLD SPEC,W/PCV

 1
17705-24163

2K..KP36

 1
17705-24320

2K..KP36

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24030

2K..KP36

 1
17801-24010

2K,3KH..KP3#

 1
17801-13020

2K..KP36

 1
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17841 - GASKET, FILTER ELEMENT
17841-60011

2K..KP3#

 2
17841-24020

2K,3KH..KP3#

 2
17845 - GASKET, AIR CLEANER CAP
17845-24010

2K,3KH..KP3#

 1
17845-12010

2K..KP3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K..KP36

 1
90430-64139

2K..KP3#

 2
90430-63187

2K,3KH..KP3#

 1
Common parts
91651-40816

(8201- )

Click highlighted areas on diagram

diagram 17700 17700 17700A 17700F 17705 17801 17848 9017908068 9165140816 9212240814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-24324

2K..KP36

 1
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700 - CLEANER ASSY, AIR
17700-24324

2K..KP36

 1
17700-24130

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24070

2K..KP3#

W/O PCV

 1
17700-12021

2K..KP3#

W/O PCV

 1
17700-24031

2K..KP3#

W/PCV

 1
17700-24332

2K..KP36

W/HOT AIR INTAKE

 1
17700-24071

2K..KP3#

W/O PCV

 1
17700-24570

2K..KP36

W/HOT AIR INTAKE

 1
17700-24324

2K,3KH..KP3#

 1
17700-24030

2K..KP3#

W/PCV

 1
17700-24131

2K..KP3#

COLD SPEC,W/PCV

 1
17700-12041

2K..KP3#

W/PCV

 1
17700-24330

2K..KP3#

COLD SPEC,W/PCV

 1
17700-24323

2K,3KH..KP3#

W/PCV

 1
17700-24140

2K..KP3#

COLD SPEC,W/O PCV

 1
17700-24032

2K..KP3#

W/PCV

 1
17700-24320

2K..KP3#

W/PCV

 1
17700-13250

2K..KP36

 1
17700-24332

2K..KP30,36

W/HOT AIR INTAKE

 1
17700A - NUT, WING(FOR AIR CLEANER)
94271-00600

2K,3KH..KP3#

 1
94271-00600

2K..KP36

 1
94270-00600

2K..KP3#

 1
90175-06003

2K..KP36

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06131

2K,3KH..KP3#

L=102,S=12&30

 2
90116-06142

2K..KP36

 1
90116-06131

2K..KP36

L=102,S=12&30

 2
17705 - CAP SUB-ASSY, AIR CLEANER
17705-24160

2K,3KH..KP3#

 1
17705-24021

2K..KP3#

 1
17705-24170

2K..KP30,36

W/HOT AIR INTAKE

 1
17705-13011

2K..KP36

 1
17705-12010

2K..KP3#

 1
17705-24100

2K..KP3#

COLD SPEC,W/PCV

 1
17705-24163

2K..KP36

 1
17705-24320

2K..KP36

W/HOT AIR INTAKE

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-24030

2K..KP36

 1
17801-24010

2K,3KH..KP3#

 1
17801-13020

2K..KP36

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-13010

2K..KP36

 1
90430-64139

2K..KP3#

 2
90430-63187

2K,3KH..KP3#

 1
Common parts
90179-08068
91651-40816
92122-40814
