KP36L- (1969)

Toyota Toyota1000

Production Nov 1969 - Aug 1988
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6911-7511)2K..KP36..PIC

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430S 17430W 17451 17457 17510 9111140825 9111140825 9111140825 9111140828 9161140818 9161140818 9161140820 9161140825 9411040800 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800 9451200800 9461210800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-12020

2K..KP3#

 1
17410-12013

2K..KP3#

 1
17410-12012

2K..KP3#

 1
17410-24140

2K..KP30,36

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2K..KP36

 3
90179-10118

2K..KP3#

 3
90170-10199

2K..KP3#

 3
90170-10199

2K..KP3#

 3
90179-10010

2K,3KH..KP3#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

2K..KP30,36

 1
90917-06006

2K..KP3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24080

2K..KP30,36

 1
17571-22010

2K..KP3#

 1
17571-24081

2K..KP30,36

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-12060

2K..KP36..PIC

 1
17430-12052

2K..KP36..PIC

 1
17430-24220

2K..KP36..PIC

 1
17430-12061

2K..KP36..PIC

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-12030

2K..KP36..PIC

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-12031

2K..KP36..PIC

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23276

2K..KP36..PIC

 1
17451 - GASKET, EXHAUST PIPE
17451-22010

2K..KP3#

 1
90917-06006

2K,3KH..KP3#

 1
90917-06006

2K..KP3#

 1
17457 - JOINT, EXHAUST PIPE
17457-22010

2K..KP3#..PIC,SED

 1
17510 - MUFFLER ASSY
17540-12020

2K..KP36..PIC

 1
17540-12021

2K..KP36..PIC

 1
Common parts
91111-40825
91111-40828
91611-40818
91611-40820
91611-40825
94110-40800
94512-00800
94612-10800

(7511- )2K..KP36..PIC

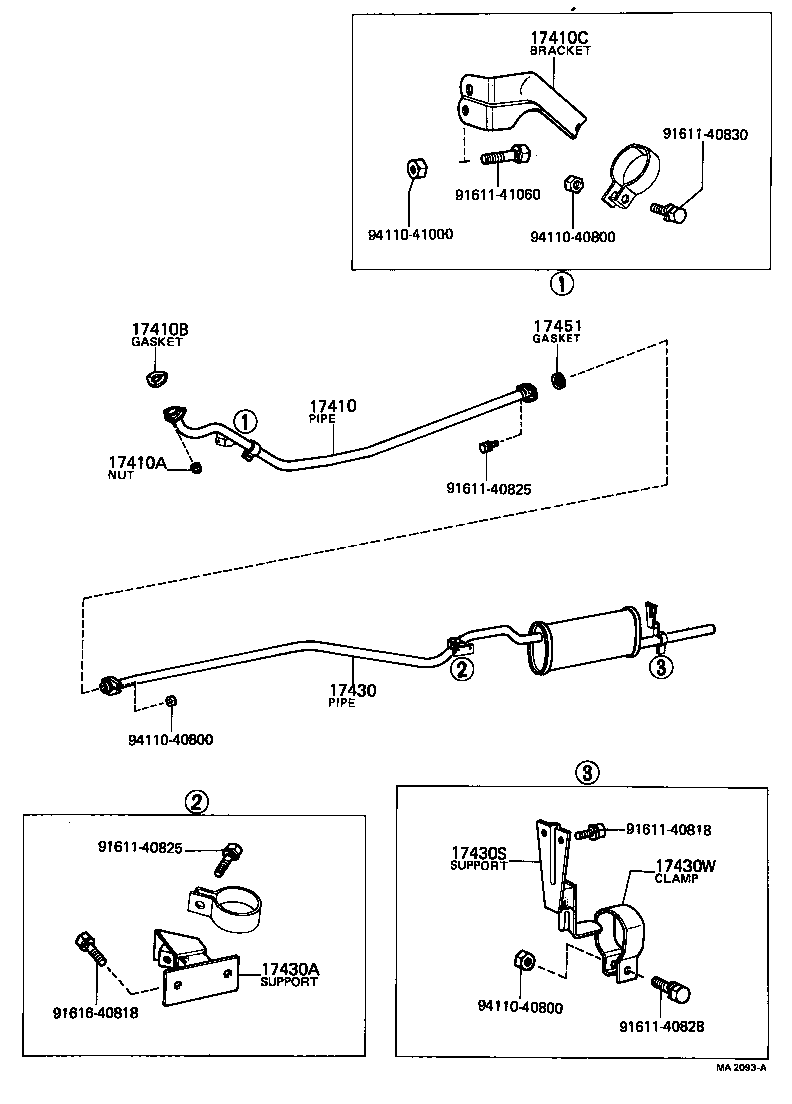

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17430 17430A 17430S 17430W 17451 9161140818 9161140825 9161140825 9161140828 9161140830 9161141060 9161640818 9411040800 9411040800 9411040800 9411041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-12020

2K..KP3#

 1
17410-12013

2K..KP3#

 1
17410-12012

2K..KP3#

 1
17410-24140

2K..KP30,36

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2K..KP36

 3
90179-10118

2K..KP3#

 3
90170-10199

2K..KP3#

 3
90170-10199

2K..KP3#

 3
90179-10010

2K,3KH..KP3#

 3
17410B - GASKET, EXHAUST PIPE
90917-06012

2K..KP30,36

 1
90917-06006

2K..KP3#

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-24080

2K..KP30,36

 1
17571-22010

2K..KP3#

 1
17571-24081

2K..KP30,36

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-12060

2K..KP36..PIC

 1
17430-12052

2K..KP36..PIC

 1
17430-24220

2K..KP36..PIC

 1
17430-12061

2K..KP36..PIC

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17562-12030

2K..KP36..PIC

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-12031

2K..KP36..PIC

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23276

2K..KP36..PIC

 1
17451 - GASKET, EXHAUST PIPE
17451-22010

2K..KP3#

 1
90917-06006

2K,3KH..KP3#

 1
90917-06006

2K..KP3#

 1
Common parts
91611-40818
91611-40825
91611-40828
91611-40830
91611-41060
91616-40818
94110-40800
94110-41000
