KP36L- (1969)
Toyota Toyota1000
(6904-7802)

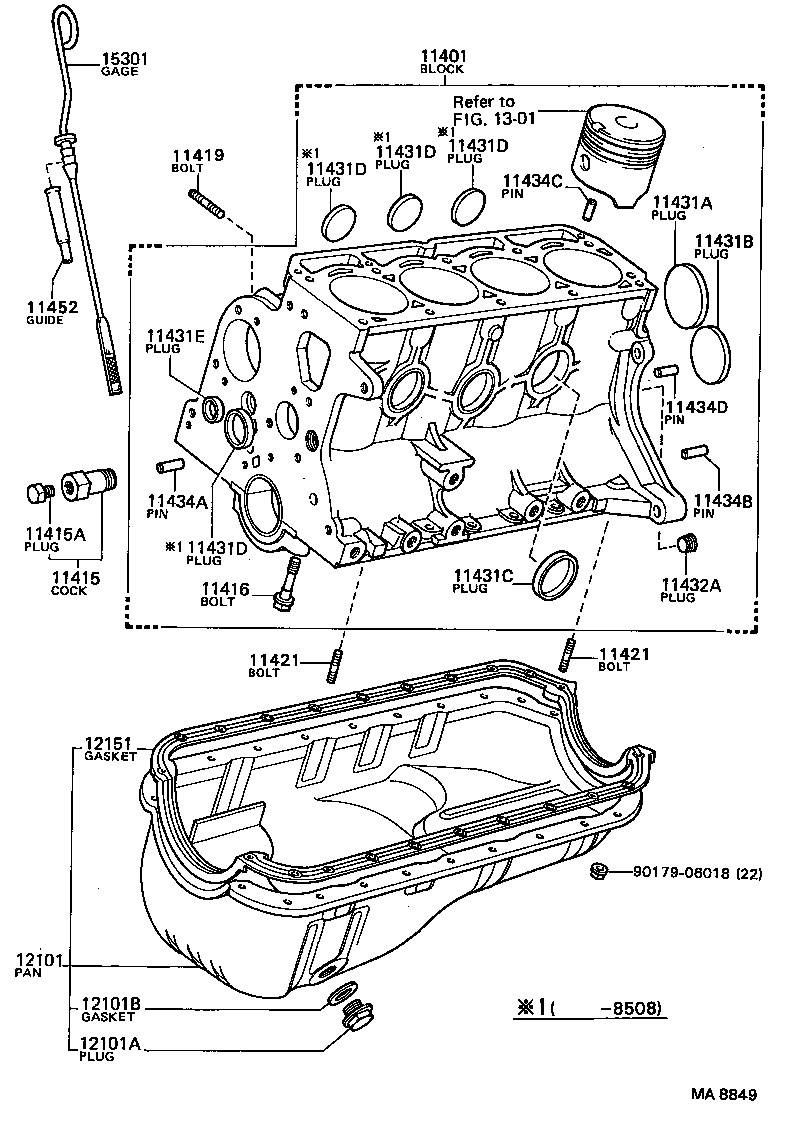

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19025 |
2K..KP3# |
1 | ||
| 11401-19026 |
2K..KP30,36 |
1 | ||
| 11401-19018 |
2K..KP3# |
1 | ||
| 11401-19017 |
2K..KP3# |
1 | ||
| 11401-19027 |
2K..KP36 |
1 | ||
| 11401-19028 |
2K..KP36 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53850 |
2K..KP36 |
1 | ||
| 96431-03850 |
2K,3KH..KP3# |
1 | ||
| 96431-53828 |
2K..KP36 |
1 | ||
| 96431-03850 |
2K..KP3# |
1 | ||
| 96431-03873 |
2K..KP3# |
1 | ||
| 90910-09057 |
2K,3KH..KP3# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
2K..KP36 L=24 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02019 |
2K,3KH..KP3# *10-1.25PX55-18 |
10 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08102 |
2K..KP36 L=37,S=10&21 |
2 | ||
| 90116-08288 |
2K,3KH..KP3# L=42,S=10&21 |
2 | ||
| 90116-08013 |
2K..KP3# L=34.5,S=9&16 |
2 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08102 |
2K..KP36 L=37,S=10&21 |
2 | ||
| 90116-08288 |
2K,3KH..KP3# L=42,S=10&21 |
2 | ||
| 90116-08013 |
2K..KP3# L=34.5,S=9&16 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92131-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 90116-06012 |
2K,3KH..KP3# L=40,S=12&25 |
4 | ||
| 90116-06006 |
2K,3KH..KP3# L=26.4,S=12&12 |
8 | ||
| 92132-40614 |
2K,3KH..KP3# 4T |
4 | ||
| 92132-60614 |
2K,3KH..KP3# 6T |
4 | ||
| 92132-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-47025 |
2K,3KH..KP3# OD=46.5 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-45019 |
2K..KP3# OD=45 |
1 | ||
| 96411-44500 |
2K,3KH..KP3# OD=45 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2K,3KH..KP3# OD=35 |
3 | ||
| 90331-35014 |
2K..KP3# OD=35 |
3 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96412-01800 |
2K,3KH..KP3# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
2K,3KH..KP3# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
2K,3KH..KP3# L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08054 |
2K,3KH..KP3# L=23,OD=8,L=23,OD=8 |
2 | ||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08054 |
2K,3KH..KP3# L=23,OD=8,L=23,OD=8 |
2 | ||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-13010 |
2K,3KH..KP3# |
1 | ||
| 11452-22011 |
2K..KP3# |
1 | ||
| 11452-22010 |
2K..KP3# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-29045 |
2K,3KH..KP3# |
1 | ||
| 12101-29016 |
2K..KP3# |
1 | ||
| 12101-19025 |
2K,3KH..KP3# |
1 | ||
| 12101-19026 |
2K..KP36 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2K,3KH..KP3# |
1 | ||
| 90341-25054 |
2K..KP3# |
1 | ||
| 90341-12012 |
2K..KP36 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-25013 |
2K..KP3# |
1 | ||
| 90430-12011 |
2K..KP36 |
1 | ||
| 90430-18244 |
2K,3KH..KP3# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-24021 |
2K,3KH..KP3# |
1 | ||
| 12151-12010 |
2K,3KH..KP3# |
1 | ||
| 12151-24020 |
2K..KP3# |
1 | ||
| 12151-22011 |
2K..KP3# |
1 | ||
| 12151-24010 |
2K..KP3# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-22011 |
2K..KP3# |
1 | ||
| 15301-13010 |
2K,3KH..KP3# |
1 | ||
| Common parts | ||||
| 91651-60616 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1302 | ||||
(7802-8206)

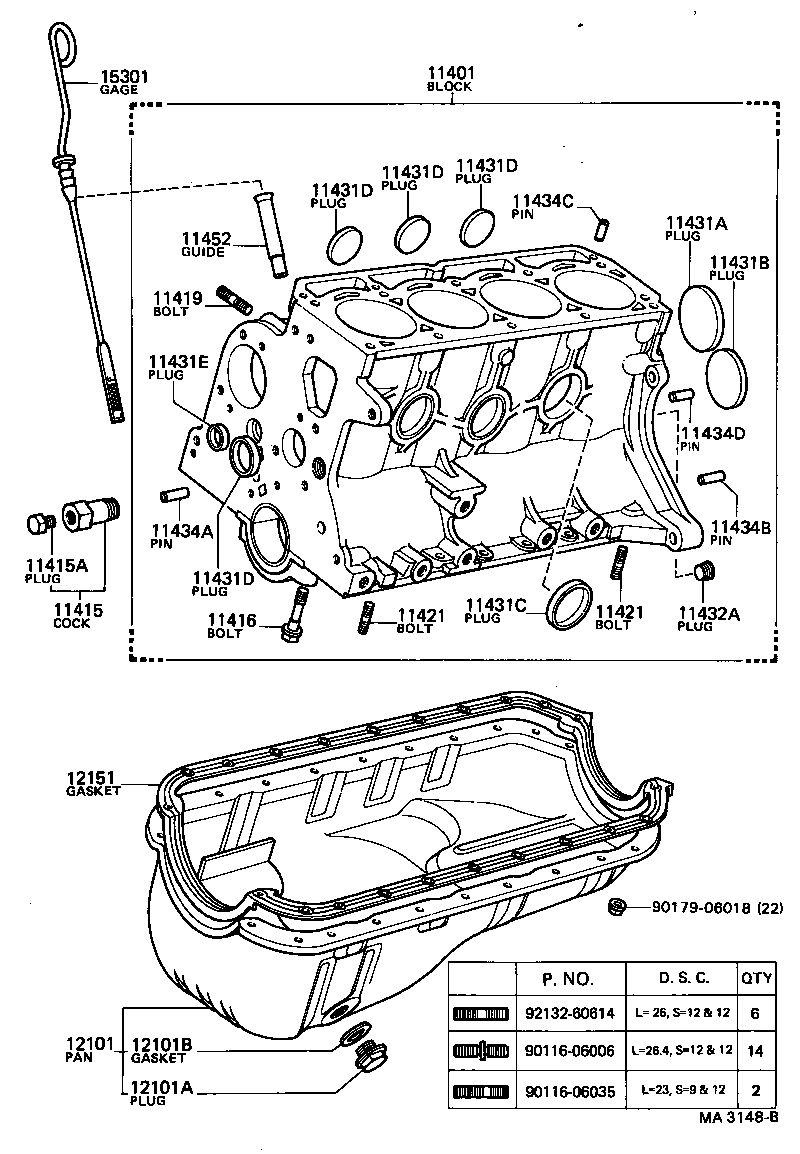

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19025 |
2K..KP3# |
1 | ||
| 11401-19026 |
2K..KP30,36 |
1 | ||
| 11401-19018 |
2K..KP3# |
1 | ||
| 11401-19017 |
2K..KP3# |
1 | ||
| 11401-19027 |
2K..KP36 |
1 | ||
| 11401-19028 |
2K..KP36 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53850 |
2K..KP36 |
1 | ||
| 96431-03850 |
2K,3KH..KP3# |
1 | ||
| 96431-53828 |
2K..KP36 |
1 | ||
| 96431-03850 |
2K..KP3# |
1 | ||
| 96431-03873 |
2K..KP3# |
1 | ||
| 90910-09057 |
2K,3KH..KP3# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
2K..KP36 L=24 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02019 |
2K,3KH..KP3# *10-1.25PX55-18 |
10 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08102 |
2K..KP36 L=37,S=10&21 |
2 | ||
| 90116-08288 |
2K,3KH..KP3# L=42,S=10&21 |
2 | ||
| 90116-08013 |
2K..KP3# L=34.5,S=9&16 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92131-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 90116-06012 |
2K,3KH..KP3# L=40,S=12&25 |
4 | ||
| 90116-06006 |
2K,3KH..KP3# L=26.4,S=12&12 |
8 | ||
| 92132-40614 |
2K,3KH..KP3# 4T |
4 | ||
| 92132-60614 |
2K,3KH..KP3# 6T |
4 | ||
| 92132-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92131-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 90116-06012 |
2K,3KH..KP3# L=40,S=12&25 |
4 | ||
| 90116-06006 |
2K,3KH..KP3# L=26.4,S=12&12 |
8 | ||
| 92132-40614 |
2K,3KH..KP3# 4T |
4 | ||
| 92132-60614 |
2K,3KH..KP3# 6T |
4 | ||
| 92132-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-47025 |
2K,3KH..KP3# OD=46.5 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-45019 |
2K..KP3# OD=45 |
1 | ||
| 96411-44500 |
2K,3KH..KP3# OD=45 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2K,3KH..KP3# OD=35 |
3 | ||
| 90331-35014 |
2K..KP3# OD=35 |
3 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96412-01800 |
2K,3KH..KP3# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
2K,3KH..KP3# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
2K,3KH..KP3# L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08054 |
2K,3KH..KP3# L=23,OD=8,L=23,OD=8 |
2 | ||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-13010 |
2K,3KH..KP3# |
1 | ||
| 11452-22011 |
2K..KP3# |
1 | ||
| 11452-22010 |
2K..KP3# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-29045 |
2K,3KH..KP3# |
1 | ||
| 12101-29016 |
2K..KP3# |
1 | ||
| 12101-19025 |
2K,3KH..KP3# |
1 | ||
| 12101-19026 |
2K..KP36 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2K,3KH..KP3# |
1 | ||
| 90341-25054 |
2K..KP3# |
1 | ||
| 90341-12012 |
2K..KP36 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-25013 |
2K..KP3# |
1 | ||
| 90430-12011 |
2K..KP36 |
1 | ||
| 90430-18244 |
2K,3KH..KP3# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-24021 |
2K,3KH..KP3# |
1 | ||
| 12151-12010 |
2K,3KH..KP3# |
1 | ||
| 12151-24020 |
2K..KP3# |
1 | ||
| 12151-22011 |
2K..KP3# |
1 | ||
| 12151-24010 |
2K..KP3# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-22011 |
2K..KP3# |
1 | ||
| 15301-13010 |
2K,3KH..KP3# |
1 | ||
| Common parts | ||||
| 90116-06006 | ||||
| 90116-06035 | ||||
| 90179-06018 | ||||
| 92132-60614 | ||||
(8206- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19025 |
2K..KP3# |
1 | ||
| 11401-19026 |
2K..KP30,36 |
1 | ||
| 11401-19018 |
2K..KP3# |
1 | ||
| 11401-19017 |
2K..KP3# |
1 | ||
| 11401-19027 |
2K..KP36 |
1 | ||
| 11401-19028 |
2K..KP36 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53850 |
2K..KP36 |
1 | ||
| 96431-03850 |
2K,3KH..KP3# |
1 | ||
| 96431-53828 |
2K..KP36 |
1 | ||
| 96431-03850 |
2K..KP3# |
1 | ||
| 96431-03873 |
2K..KP3# |
1 | ||
| 90910-09057 |
2K,3KH..KP3# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
2K..KP36 L=24 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02019 |
2K,3KH..KP3# *10-1.25PX55-18 |
10 | ||
| 11419 - BOLT, STUD(FOR FUEL PUMP) | ||||
| 90116-08102 |
2K..KP36 L=37,S=10&21 |
2 | ||
| 90116-08288 |
2K,3KH..KP3# L=42,S=10&21 |
2 | ||
| 90116-08013 |
2K..KP3# L=34.5,S=9&16 |
2 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92131-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 90116-06012 |
2K,3KH..KP3# L=40,S=12&25 |
4 | ||
| 90116-06006 |
2K,3KH..KP3# L=26.4,S=12&12 |
8 | ||
| 92132-40614 |
2K,3KH..KP3# 4T |
4 | ||
| 92132-60614 |
2K,3KH..KP3# 6T |
4 | ||
| 92132-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 92131-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 90116-06012 |
2K,3KH..KP3# L=40,S=12&25 |
4 | ||
| 90116-06006 |
2K,3KH..KP3# L=26.4,S=12&12 |
8 | ||
| 92132-40614 |
2K,3KH..KP3# 4T |
4 | ||
| 92132-60614 |
2K,3KH..KP3# 6T |
4 | ||
| 92132-40616 |
2K..KP3# L=28,S=10.5&10.5 |
4 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-47025 |
2K,3KH..KP3# OD=46.5 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 90331-45019 |
2K..KP3# OD=45 |
1 | ||
| 96411-44500 |
2K,3KH..KP3# OD=45 |
1 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2K,3KH..KP3# OD=35 |
3 | ||
| 90331-35014 |
2K..KP3# OD=35 |
3 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2K,3KH..KP3# OD=25 |
4 | ||
| 90331-25011 |
2K..KP3# OD=25 |
4 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96412-01800 |
2K,3KH..KP3# OD=18 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90344-53011 |
2K,3KH..KP3# |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8 |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
2K,3KH..KP3# L=22,OD=10,L=22,OD=10 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08054 |
2K,3KH..KP3# L=23,OD=8,L=23,OD=8 |
2 | ||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-08120 |
2K,3KH..KP3# L=18,OD=8,L=18,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-13010 |
2K,3KH..KP3# |
1 | ||
| 11452-22011 |
2K..KP3# |
1 | ||
| 11452-22010 |
2K..KP3# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-29045 |
2K,3KH..KP3# |
1 | ||
| 12101-29016 |
2K..KP3# |
1 | ||
| 12101-19025 |
2K,3KH..KP3# |
1 | ||
| 12101-19026 |
2K..KP36 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2K,3KH..KP3# |
1 | ||
| 90341-25054 |
2K..KP3# |
1 | ||
| 90341-12012 |
2K..KP36 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-25013 |
2K..KP3# |
1 | ||
| 90430-12011 |
2K..KP36 |
1 | ||
| 90430-18244 |
2K,3KH..KP3# |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-24021 |
2K,3KH..KP3# |
1 | ||
| 12151-12010 |
2K,3KH..KP3# |
1 | ||
| 12151-24020 |
2K..KP3# |
1 | ||
| 12151-22011 |
2K..KP3# |
1 | ||
| 12151-24010 |
2K..KP3# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-22011 |
2K..KP3# |
1 | ||
| 15301-13010 |
2K,3KH..KP3# |
1 | ||
| Common parts | ||||
| 90179-06018 | ||||
| Linked diagrams | ||||
| 1301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
