KP36- (1969)
Toyota Toyota1000
Production
Nov 1969
-
Aug 1988
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

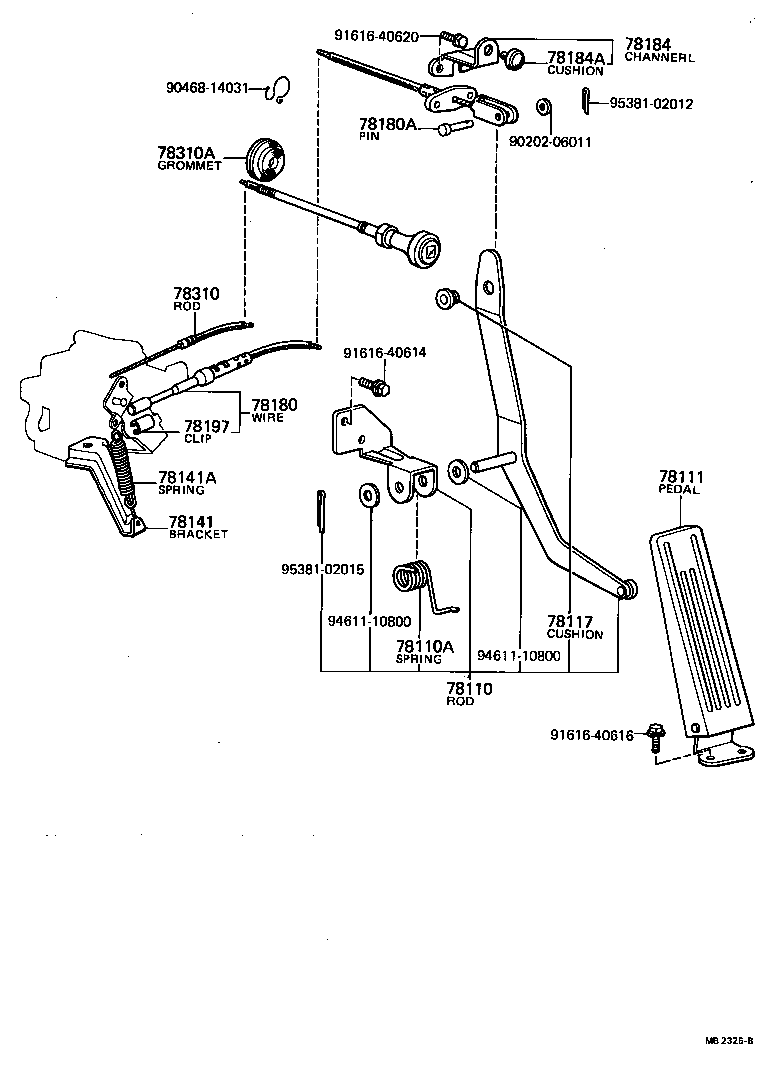

(6904-7310)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-10040 |
KP3#..RHD |
1 | ||
| 78102-10041 |
KP3#..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23204 |
KP3#..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-10040 |
KP3#..RHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90540-05038 |
KP3#..RHD |
1 | ||
| 90540-05038 |
KP3# |
1 | ||
| 78141 - BRACKET, ACCELERATOR WIRE RETURN SPRING | ||||
| 78141-12011 |
KP3# |
1 | ||
| 78141A - SPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING) | ||||
| 90506-12336 |
KP3# |
1 | ||
| 90507-12010 |
KP3# |
1 | ||
| 90506-10151 |
KP3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10010 |
KP3#..RHD |
1 | ||
| 78180-10081 |
KP3#..RHD |
1 | ||
| 78180-10080 |
KP3#..RHD |
1 | ||
| 78180-10082 |
KP3#..RHD |
1 | ||
| 78180A - PIN, ACCELERATOR WIRE SET | ||||
| 90240-05072 |
KP3# |
1 | ||
| 90240-05072 |
KP3#..RHD |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78184-10901 |
KP3#..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KP3# |
1 | ||
| 90541-06008 |
KP3#..RHD |
1 | ||
| 78197 - CLIP, ACCELERATOR JOINT BALL | ||||
| 78197-10010 |
KP3# |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-10051 |
KP3#..RHD |
1 | ||
| 78310-10121 |
KP3#..RHD |
1 | ||
| 78310-10050 |
KP3#..RHD |
1 | ||
| 78310-10120 |
KP3#..RHD |
1 | ||
| 78310-10131 |
KP3#..RHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-33200 |
KP3# |
1 | ||
| Common parts | ||||
| 90202-06011 | ||||
| 90468-14031 | ||||
| 91616-40614 | ||||
| 91616-40616 | ||||
| 91616-40620 | ||||
| 94611-10800 | ||||
| 95381-02012 | ||||
| 95381-02015 | ||||

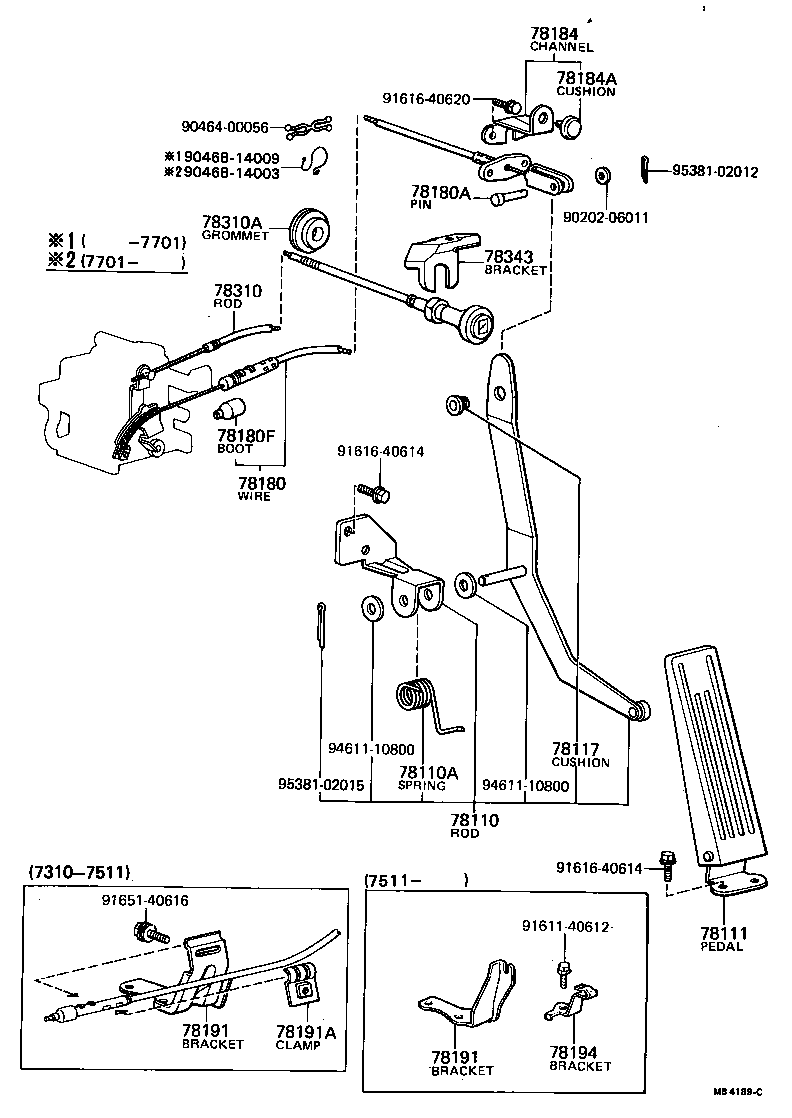

(7310- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-10040 |
KP3#..RHD |
1 | ||
| 78102-10041 |
KP3#..RHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23204 |
KP3#..RHD |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78101-10040 |
KP3#..RHD |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90540-05038 |
KP3#..RHD |
1 | ||
| 90540-05038 |
KP3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-10010 |
KP3#..RHD |
1 | ||
| 78180-10081 |
KP3#..RHD |
1 | ||
| 78180-10080 |
KP3#..RHD |
1 | ||
| 78180-10082 |
KP3#..RHD |
1 | ||
| 78180A - PIN, ACCELERATOR WIRE SET | ||||
| 90240-05072 |
KP3# |
1 | ||
| 90240-05072 |
KP3#..RHD |
1 | ||
| 78180F - BOOT (FOR ACCELERATOR WIRE) | ||||
| 78199-10030 |
KP3# |
1 | ||
| 78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER | ||||
| 78184-10901 |
KP3#..RHD |
1 | ||
| 78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL) | ||||
| 90541-06008 |
KP3# |
1 | ||
| 90541-06008 |
KP3#..RHD |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78124-12030 |
KP3# |
1 | ||
| 78124-12010 |
KP3# |
1 | ||
| 78184-12040 |
KP3# |
1 | ||
| 78124-10020 |
KP3# |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78124-12030 |
KP3# |
1 | ||
| 78124-12010 |
KP3# |
1 | ||
| 78184-12040 |
KP3# |
1 | ||
| 78124-10020 |
KP3# |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 78125-10020 |
KP3# |
1 | ||
| 78125-12010 |
KP3# |
1 | ||
| 78194 - BRACKET, ACCELERATOR WIRE SUPPORT, NO.2 | ||||
| 78186-10010 |
KP3# |
1 | ||
| 78186-10020 |
KP36 |
1 | ||
| 78186-10011 |
KP3# |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-10051 |
KP3#..RHD |
1 | ||
| 78310-10121 |
KP3#..RHD |
1 | ||
| 78310-10050 |
KP3#..RHD |
1 | ||
| 78310-10120 |
KP3#..RHD |
1 | ||
| 78310-10131 |
KP3#..RHD |
1 | ||
| 78310A - GROMMET, CHOKE CABLE | ||||
| 90480-33200 |
KP3# |
1 | ||
| Common parts | ||||
| 90202-06011 | ||||
| 90464-00056 | ||||
| 90468-14003 | ||||
| 90468-14009 | ||||
| 91611-40612 | ||||
| 91616-40614 | ||||
| 91616-40620 | ||||
| 91651-40616 | ||||
| 94611-10800 | ||||
| 95381-02012 | ||||
| 95381-02015 | ||||
