KP30L- (1969)

Toyota Toyota1000

Production Apr 1969 - Feb 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7310)

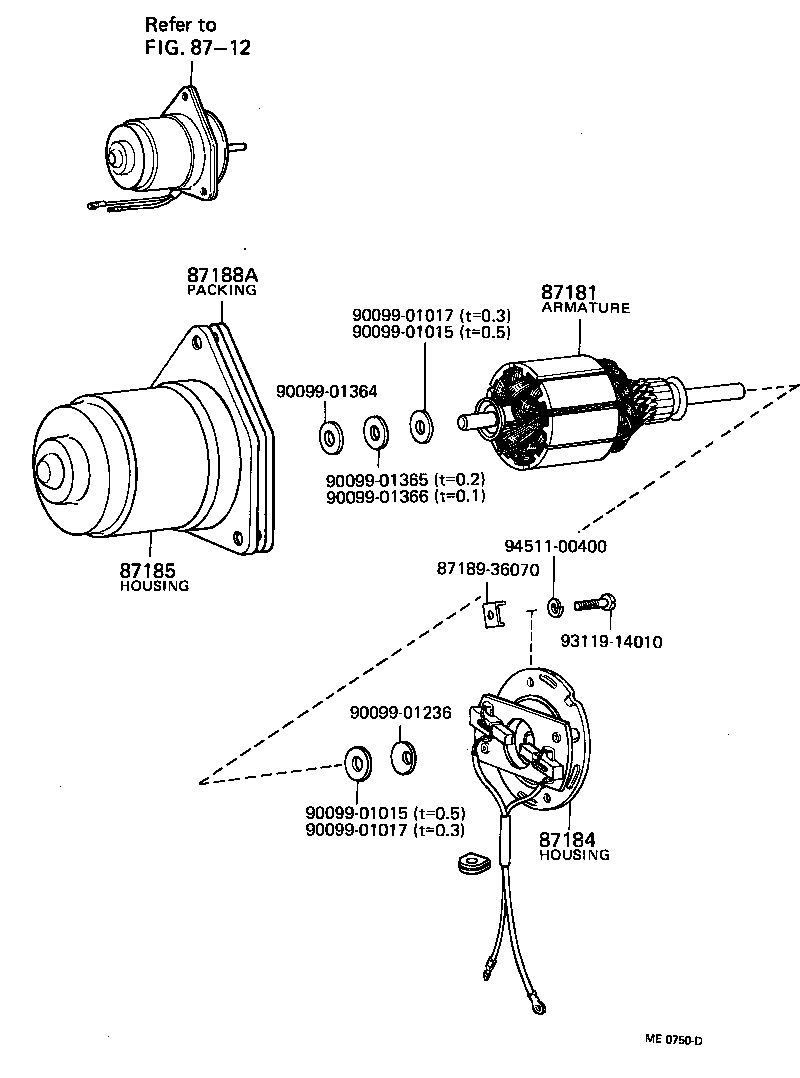

Click highlighted areas on diagram

diagram 8712 87181 87184 87185 87188A 8718936070 9009901015 9009901015 9009901017 9009901017 9009901236 9009901364 9009901365 9009901366 9311914010 9451100400
Part # Description Qty Price
87181 - ARMATURE, BLOWER MOTOR
87181-10050

KP3#

 1
87184 - HOUSING, BLOWER MOTOR, NO.1
87184-10050

KP3#

 1
87185 - HOUSING, BLOWER MOTOR, NO.2
87185-10050

KP3#

 1
87188A - PACKING, HEATER BLOWER MOTOR
87188-12010

KP3#

 1
Common parts
87189-36070
90099-01015
90099-01017
90099-01236
90099-01364
90099-01365
90099-01366
93119-14010
94511-00400
Linked diagrams
8712
