KP30L- (1969)
Toyota Toyota1000
Production
Apr 1969
-
Feb 1978
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6904-7004)

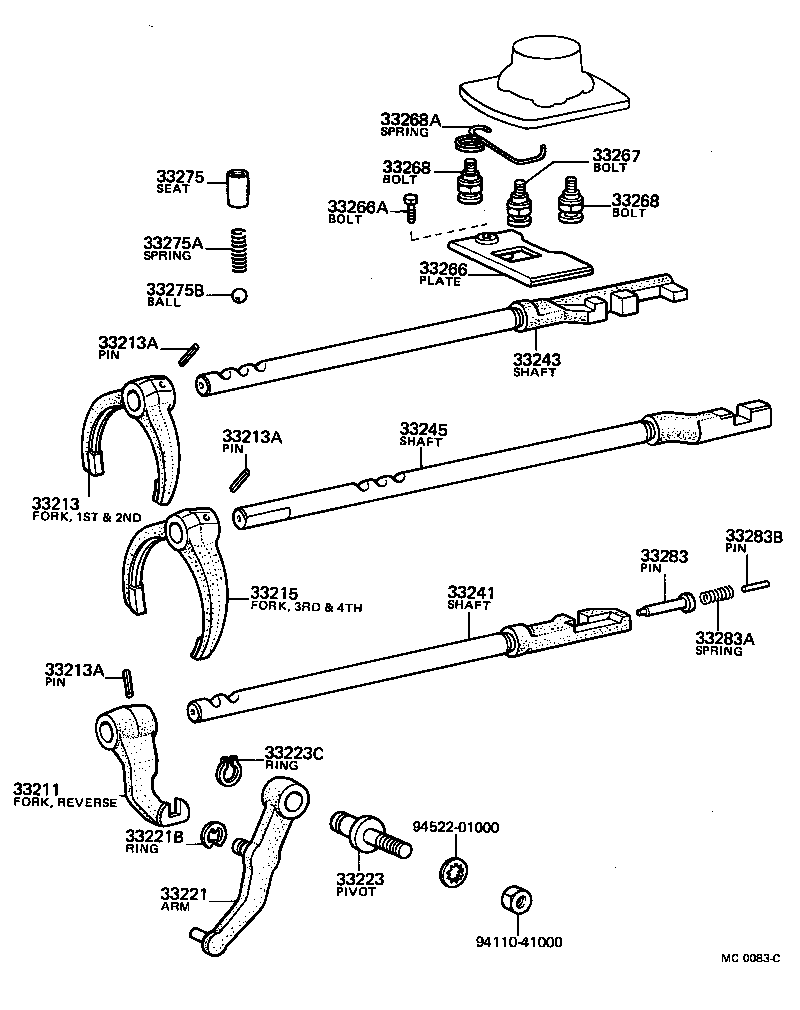

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-12010 |
KP3# |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33213-12010 |
KP3# |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KP3# |
3 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33215-12010 |
KP3# |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-12010 |
KP3# |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 90523-08011 |
KP3# |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-12010 |
KP3# |
1 | ||
| 33223C - RING, SHAFT SNAP(FOR SHIFT ARM PIVOT) | ||||
| 90520-12072 |
KP3# |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33241-12010 |
KP3# |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33243-12010 |
KP3# |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33245-12010 |
KP3# |
1 | ||
| 33266 - PLATE, SHIFT INTER LOCK | ||||
| 33266-12011 |
KP3# ISO |
1 | ||
| 33266A - BOLT (FOR SHIFT INTER LOCK PLATE) | ||||
| 90101-05245 |
KP3# 0.8P ISO |
1 | ||
| 33267 - BOLT, SHIFT INTER LOCK PLATE SET, NO.1 | ||||
| 33267-12010 |
KP3# |
1 | ||
| 33268 - BOLT, SHIFT INTER LOCK PLATE SET, NO.2 | ||||
| 33268-12010 |
KP3# |
2 | ||
| 33268 - BOLT, SHIFT INTER LOCK PLATE SET, NO.2 | ||||
| 33268-12010 |
KP3# |
2 | ||
| 33268A - SPRING, TORSION (FOR SHIFT INTER LOCK PLATE SET BOLT) | ||||
| 90508-25108 |
KP3# |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 33275-12010 |
KP3# L=17.5 OD=12 |
3 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-16288 |
KP3# WD=1.6,CW=6.25 |
3 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KP3# OD=8 |
3 | ||
| 33283 - PIN, REVERSE RESTRICT, NO.1 | ||||
| 33283-12010 |
KP3# |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90501-16371 |
KP3# |
1 | ||
| 33283B - PIN, STRAIGHT (FOR REVERSE RESTRICT PIN) | ||||
| 90250-04119 |
KP3# |
1 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 94522-01000 | ||||
