KP30L- (1969)

Toyota Toyota1000

Production Apr 1969 - Feb 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-8501)

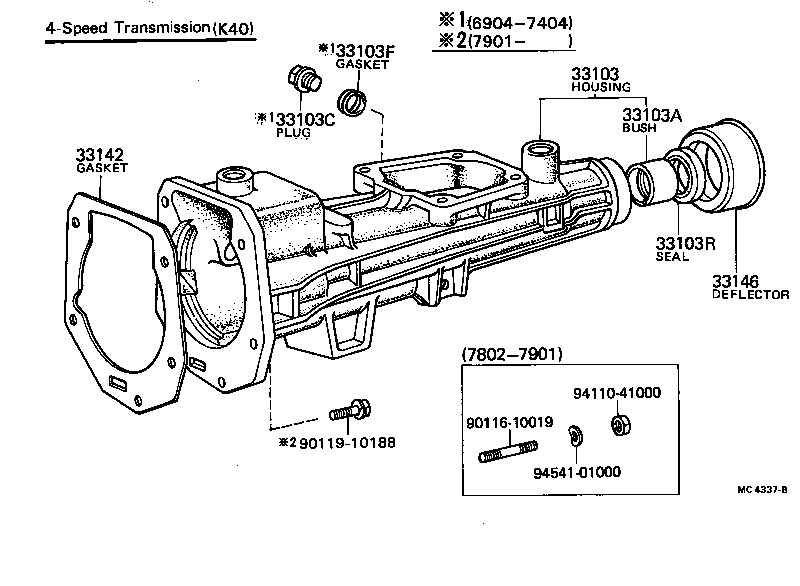

Click highlighted areas on diagram

diagram 33103 33103A 33103C 33103F 33103R 33142 33146 9011610019 9011910188 9411041000 9454101000
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-12031

KP3#

 1
33103-12030

KP3#

 1
33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90999-72020

KP3#

 1
33103C - PLUG, NO.1(FOR EXTENSION HOUSING)
90341-18002

KP3#

 1
33103F - GASKET(FOR EXTENSION HOUSING PLUG NO.1)
12157-10010

KP3#

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-32086

KP3#

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-12010

KP3#

T=0.5

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-12010

KP3#

 1
Common parts
90116-10019
90119-10188
94110-41000
94541-01000
