KP30L- (1969)
Toyota Toyota1000
(6904-7404)

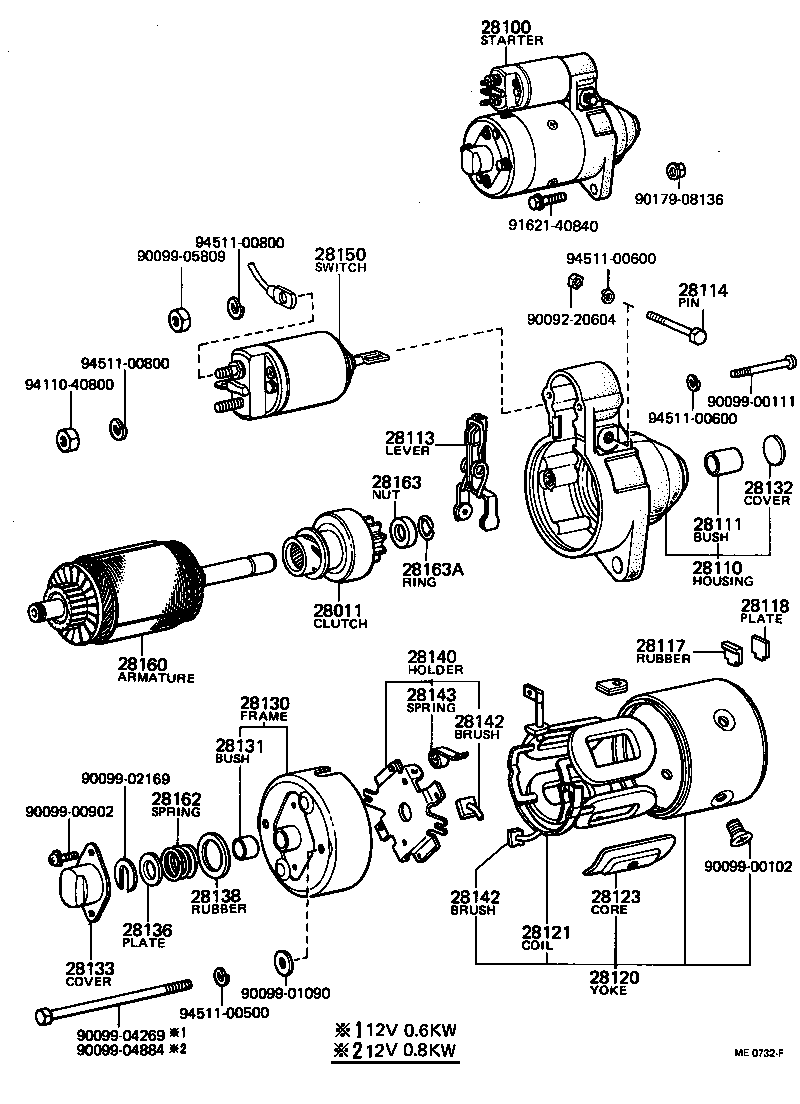

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-22020 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-12012 |
2K..KP3#..LHD 12V 0.6KW |
1 | ||
| 28100-12020 |
2K..KP3#..LHD 12V 0.8KW |
1 | ||
| 28100-12021 |
2K..KP3#..LHD 12V 0.8KW |
1 | ||
| 28100-24022 |
2K..KP3# 12V 0.8KW |
1 | ||
| 28100-12011 |
2K..KP3#..LHD 12V 0.6KW |
1 | ||
| 28100-24030 |
2K..KP3# 12V 0.6KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-12011 |
2K..KP3#..LHD 12V 0.6KW,0.8KW |
1 | ||
| 28110-12010 |
2K..KP3#..LHD 12V 0.6KW,0.8KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-25010 |
2K..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28114-41011 |
2K..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41012 |
2K..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28118 - PLATE(FOR STARTER YOKE) | ||||
| 28118-41012 |
2K..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-89101 |
2K..KP3# 12V 0.8KW |
1 | ||
| 28120-22011 |
2K..KP3# 12V 0.6KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-40014 |
2K..KP3# 12V 0.8KW |
1 | ||
| 28121-22011 |
2K,3KH..KP3# 12V 0.6KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-10011 |
2K,3KH..KP3# 12V 0.6KW |
4 | ||
| 28123-40012 |
2K..KP30,36 12V 0.8KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-21011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10039 |
2K,3KH..KP3# 12V 0.6KW,0.8KW,U/S 0.3 |
1 | ||
| 90099-10040 |
2K,3KH..KP3# 12V 0.6KW,0.8KW,U/S 0.5 |
1 | ||
| 28131-20010 |
2K,3KH..KP3# 12V 0.6KW,0.8KW,STD |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41010 |
2K..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-41011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-41011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-41011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-41012 |
2K..KP30,36 12V 0.8KW |
1 | ||
| 28140-22010 |
2K..KP3# 12V 0.6KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
2K,3KH..KP3# 12V 0.6KW |
2 | ||
| 28142-21010 |
2K..KP30,36 12V 0.8KW |
4 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-10011 |
2K,3KH..KP3# 12V 0.6KW |
2 | ||
| 28142-21010 |
2K..KP30,36 12V 0.8KW |
4 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-22011 |
2K..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28150-24010 |
2K..KP3# 12V 0.8KW |
1 | ||
| 28150-22011 |
2K..KP3# 12V 0.6KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-12020 |
2K..KP3#..LHD 12V 0.8KW |
1 | ||
| 28160-22010 |
2K..KP3# 12V 0.6KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
2K,3KH..KP3# 12V 0.6KW,0.8KW |
1 | ||
| Common parts | ||||
| 90092-20604 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01090 | ||||
| 90099-02169 | ||||
| 90099-04269 | ||||
| 90099-04884 | ||||
| 90099-05809 | ||||
| 90179-08136 | ||||
| 91621-40840 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
