KP30L- (1969)
Toyota Toyota1000
Production
Apr 1969
-
Feb 1978
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6904- )

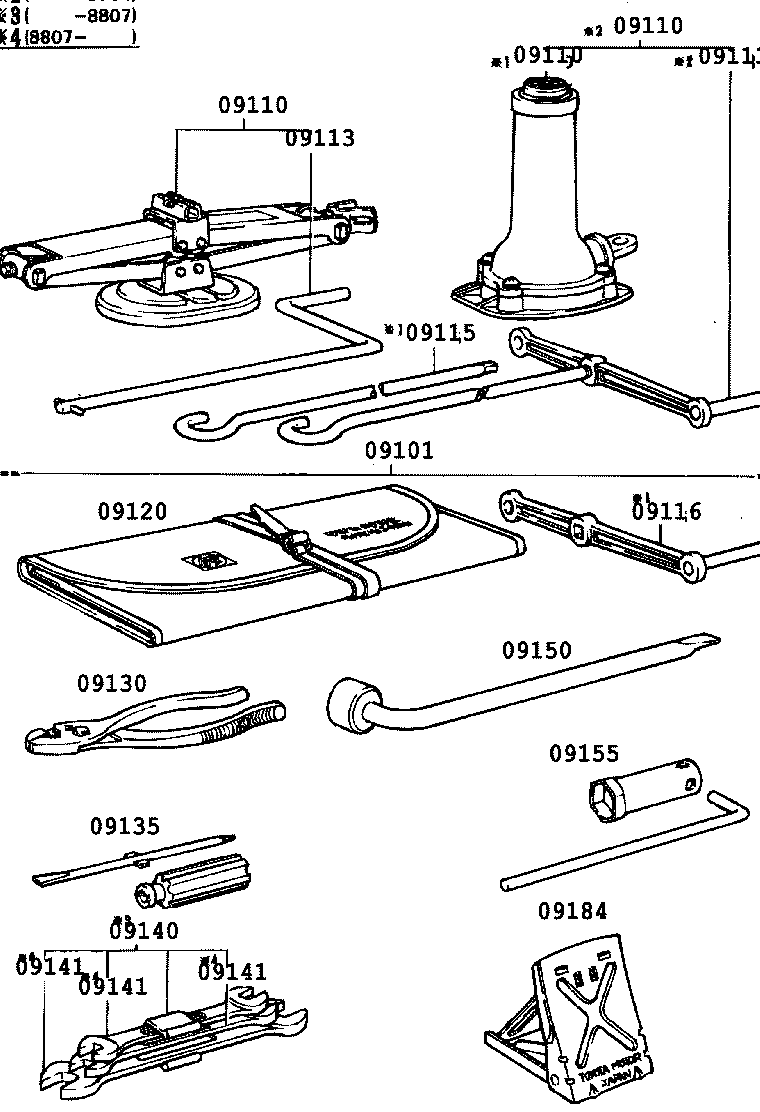

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09101-12012 |
KP30,36 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-10020 |
KP30 |
1 | ||
| 09110-12020 |
KP30 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-10020 |
KP30 |
1 | ||
| 09110-12020 |
KP30 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09110-10020 |
KP30 |
1 | ||
| 09110-12020 |
KP30 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-11011 |
KP30 |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-11011 |
KP30 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-12011 |
KP3# |
1 | ||
| 09130 - PLIERS | ||||
| 09130-00010 |
KP3# |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
KP3# (+)(-) |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-12011 |
KP3# |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
KP3# 8 X 10,8X10 |
1 | ||
| 99914-11417 |
KP3# 14 X 17,14X17 |
1 | ||
| 99914-11012 |
KP3# 10 X 12,10X12 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
KP3# 8 X 10,8X10 |
1 | ||
| 99914-11417 |
KP3# 14 X 17,14X17 |
1 | ||
| 99914-11012 |
KP3# 10 X 12,10X12 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
KP3# 8 X 10,8X10 |
1 | ||
| 99914-11417 |
KP3# 14 X 17,14X17 |
1 | ||
| 99914-11012 |
KP3# 10 X 12,10X12 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-00010 |
KP3# |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-12010 |
KP3# |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
KP3# |
1 | ||
