KP30- (1969)

Toyota Toyota1000

Production Apr 1969 - Feb 1978
Engine 2K
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6904-7809)SED,V

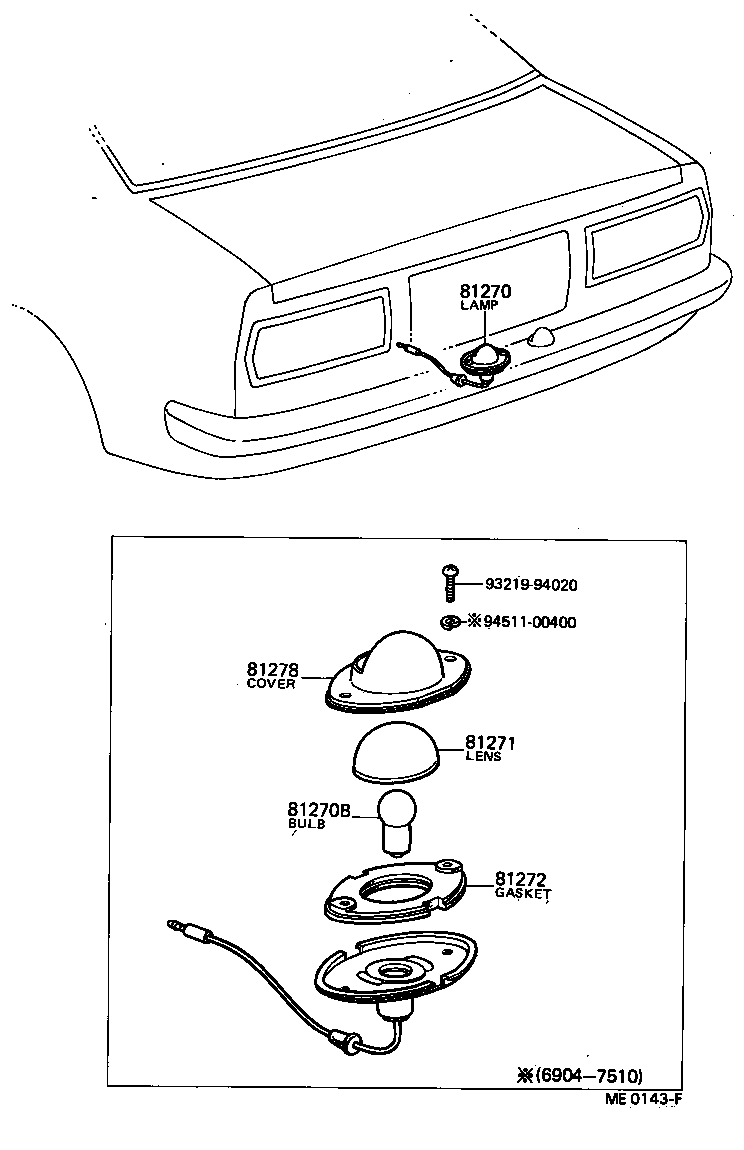

Click highlighted areas on diagram

diagram 81270 81270B 81271 81272 81278 9321994020 9451100400
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-10050

KP30

 2
81270-10070

KP30

EUROPE SPEC

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-11100

KP3#

12V 10W,12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10050

KP30,36..SED,V

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10050

KP30,36..SED,V

 2
81278 - COVER, LICENSE PLATE LAMP
81278-10050

KP30,36..SED,V

 2
Common parts
93219-94020
94511-00400
