KP30- (1969)
Toyota Toyota1000
Production
Apr 1969
-
Feb 1978
Engine
2K
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

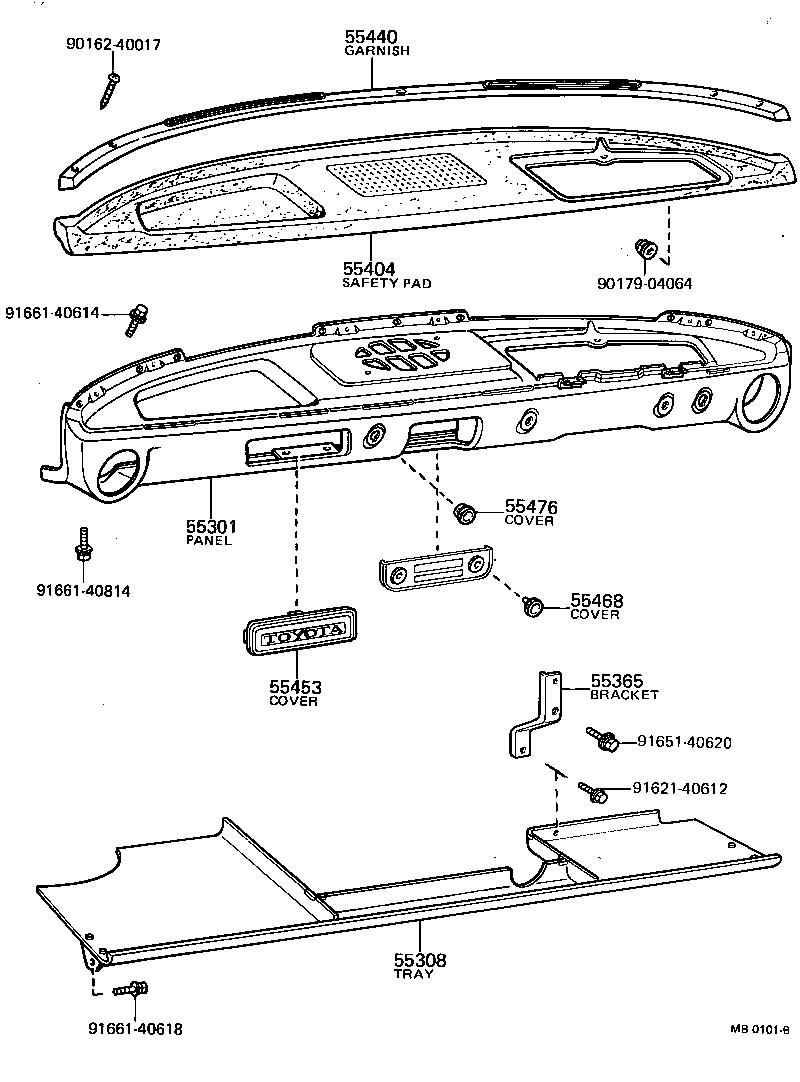

(6904-7010)RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-10070 |
KP3#..RHD |
1 | ||
| 55301-10071 |
KP3#..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-10012 |
KP3#..RHD |
1 | ||
| 55308-10010 |
KP3#..RHD |
1 | ||
| 55365 - BRACKET, INSTRUMENT PANEL UNDER TRAY | ||||
| 55365-10010 |
KP3#..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-10030 |
KP3#..RHD |
1 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55444-10020 |
KP3# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-10020 |
KP3# |
1 | ||
| 55468 - COVER, HEATER SWITCH HOLE | ||||
| 55468-10020 |
KP3# |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55476-20021 |
KP3# |
1 | ||
| Common parts | ||||
| 90162-40017 | ||||
| 90179-04064 | ||||
| 91621-40612 | ||||
| 91651-40620 | ||||
| 91661-40614 | ||||
| 91661-40618 | ||||
| 91661-40814 | ||||

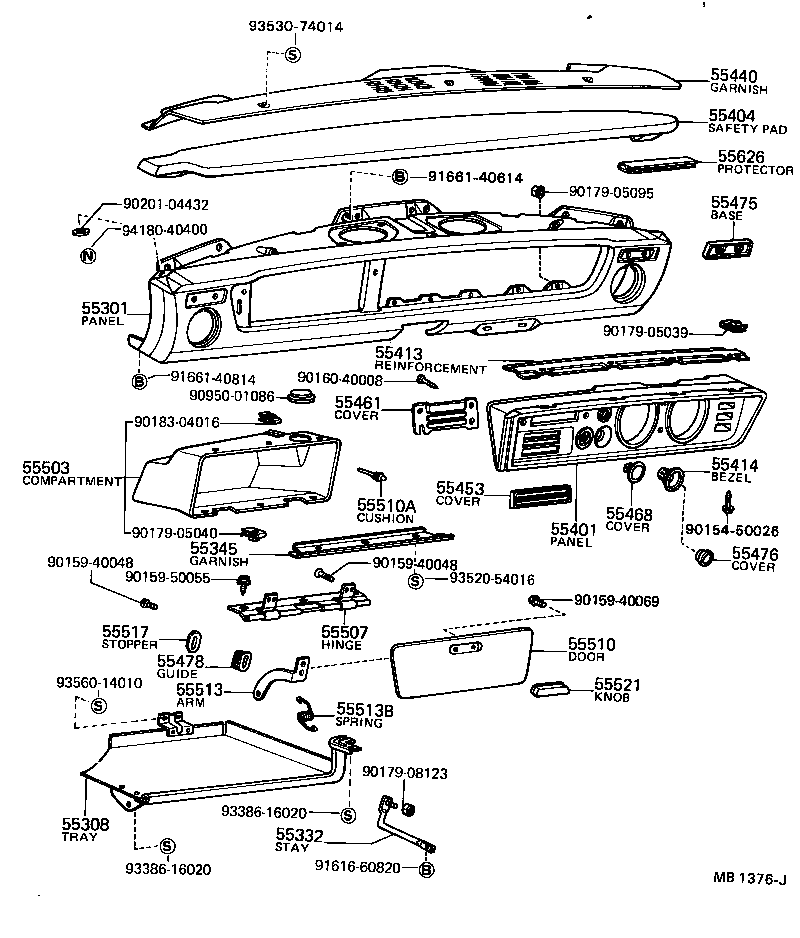

(7010- )RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-10070 |
KP3#..RHD |
1 | ||
| 55301-10071 |
KP3#..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-10012 |
KP3#..RHD |
1 | ||
| 55308-10010 |
KP3#..RHD |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-10030 |
KP3#..RHD |
1 | ||
| 55401-10032 |
KP3#..RHD |
1 | ||
| 55401-10031 |
KP3#..RHD |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-10030 |
KP3#..RHD |
1 | ||
| 55440 - GARNISH, INSTRUMENT PANEL, CENTER | ||||
| 55444-10020 |
KP3# |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-10020 |
KP3# |
1 | ||
| 55468 - COVER, HEATER SWITCH HOLE | ||||
| 55468-10020 |
KP3# |
1 | ||
| 55475 - BASE, LIGHTING SWITCH | ||||
| 55475-10020 |
KP3#..RHD |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55476-20021 |
KP3# |
1 | ||
| Common parts | ||||
| 90154-50026 | ||||
| 90159-40048 | ||||
| 90159-40069 | ||||
| 90159-50055 | ||||
| 90160-40008 | ||||
| 90179-05039 | ||||
| 90179-05040 | ||||
| 90179-05095 | ||||
| 90179-08123 | ||||
| 90183-04016 | ||||
| 90201-04432 | ||||
| 90950-01086 | ||||
| 91616-60820 | ||||
| 91661-40614 | ||||
| 91661-40814 | ||||
| 93386-16020 | ||||
| 93520-54016 | ||||
| 93530-74014 | ||||
| 93560-14010 | ||||
| 94180-40400 | ||||
