RY31R-JDH (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )5R

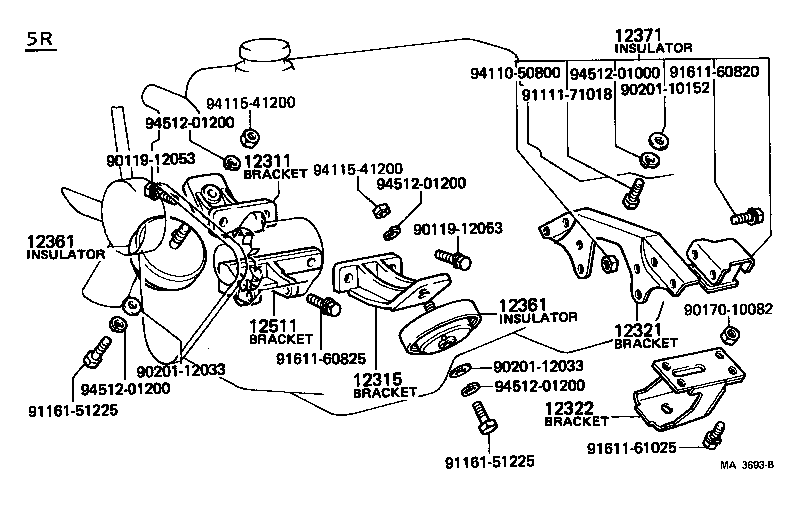

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12371 12511 9011912053 9011912053 9017010082 9020110152 9020112033 9020112033 9111171018 9116151225 9116151225 9161160820 9161160825 9161161025 9411050800 9411541200 9411541200 9451201000 9451201200 9451201200 9451201200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-44020

5R..RY31

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-44010

5R..RY31

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-44040

5R..RY31..20T

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-44050

5R..RY31..20T

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-44070

5R..RY31

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-44070

5R..RY31

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-59025

12R,5R..RY20,3#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-40020

5R..RY31

 1
Common parts
90119-12053
90170-10082
90201-10152
90201-12033
91111-71018
91161-51225
91611-60820
91611-60825
91611-61025
94110-50800
94115-41200
94512-01000
94512-01200
