RY31R-JDBH (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

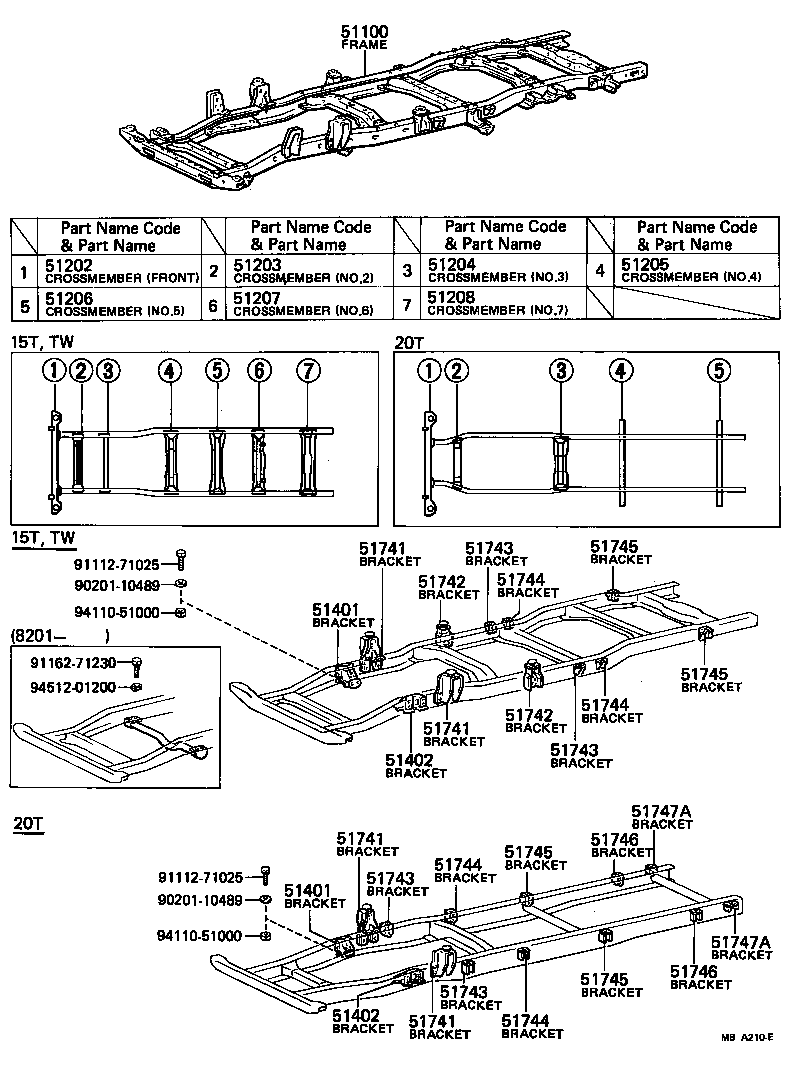

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100 - FRAME ASSY | ||||
| 51001-25770 |
JY30,RY31..RHD..20T |
1 | ||
| 51001-25772 |
JY30,RY31..RHD..20T..GEN |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-25060 |
JY30,RY31..20T |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-36060 |
JY30,RY31..20T |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-25060 |
JY30,RY31..20T |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51241-36070 |
JY30,RY31..20T |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51251-36050 |
JY30,RY31..20T |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-25130 |
RY31..20T |
1 | ||
| 51401-25100 |
LY20,3# |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-25130 |
RY31..20T |
1 | ||
| 51401-25100 |
LY20,3# |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-25100 |
LY20,3# |
1 | ||
| 51402-25050 |
RY31..20T |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51401-25100 |
LY20,3# |
1 | ||
| 51402-25050 |
RY31..20T |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25020 |
JY30,RY31..20T |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25020 |
JY30,RY31..20T |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25020 |
JY30,RY31..20T |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51703-25020 |
JY30,RY31..20T |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51751-36020 |
JY30,RY31..20T |
2 | ||
| 51747A - BRACKET, BODY MOUNTING, NO.7 | ||||
| 51769-36040 |
JY30,RY31..20T |
2 | ||
| 51747A - BRACKET, BODY MOUNTING, NO.7 | ||||
| 51769-36040 |
JY30,RY31..20T |
2 | ||
| Common parts | ||||
| 90201-10489 | ||||
| 91112-71025 | ||||
| 91162-71230 | ||||
| 94110-51000 | ||||
| 94512-01200 | ||||
