RY31R-JDB (1979)
Toyota Toyoace

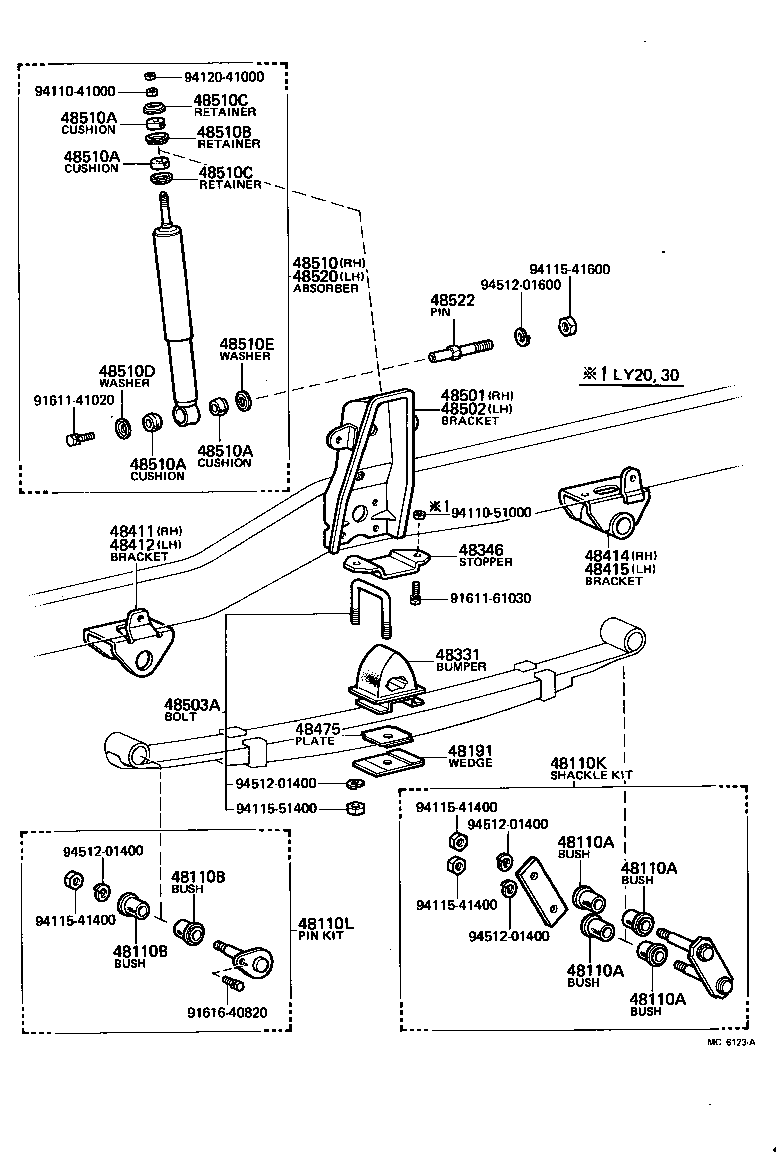

(7903- )125,15T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20,30,RY20,3#..125,15T |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20,30,RY20,3#..125,15T |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20,30,RY20,3#..125,15T |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18005 |
LY20,30,RY20,3#..125,15T |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48110K - SHACKLE KIT, FRONT SPRING | ||||
| 04481-25030 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 48110L - PIN KIT, FRONT SPRING | ||||
| 04482-25010 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-25010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-36021 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-25070 |
LY20,3#,RY20,3#..15T |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-25050 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48411-25050 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48433-25040 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48434-25030 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48502-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48502-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90118-14181 |
LY20,3#,RY20,3#..125,15T L=81,W/DISTANCE PLATE |
2 | ||
| 90118-14170 |
LY20,3#,RY20,3#..125,15T L=75 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-29125 |
LY20,3#,RY20,3#..ST..15T..CBU MARK 48511-25110 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
JY30,LY20,3#,RY20,3# UPR |
4 | ||
| 90385-16007 |
JY30,LY20,3#,RY20,3# LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
JY30,LY20,3#,RY20,3# UPR |
4 | ||
| 90385-16007 |
JY30,LY20,3#,RY20,3# LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
JY30,LY20,3#,RY20,3# UPR |
4 | ||
| 90385-16007 |
JY30,LY20,3#,RY20,3# LWR |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
JY30,LY20,3#,RY20,3# UPR |
4 | ||
| 90385-16007 |
JY30,LY20,3#,RY20,3# LWR |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
JY30,LY20,30,RY20,3# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-29125 |
LY20,3#,RY20,3#..ST..15T..CBU MARK 48511-25110 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25010 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| Common parts | ||||
| 91611-41020 | ||||
| 91611-61030 | ||||
| 91616-40820 | ||||
| 94110-41000 | ||||
| 94110-51000 | ||||
| 94115-41400 | ||||
| 94115-41600 | ||||
| 94115-51400 | ||||
| 94120-41000 | ||||
| 94512-01400 | ||||
| 94512-01600 | ||||

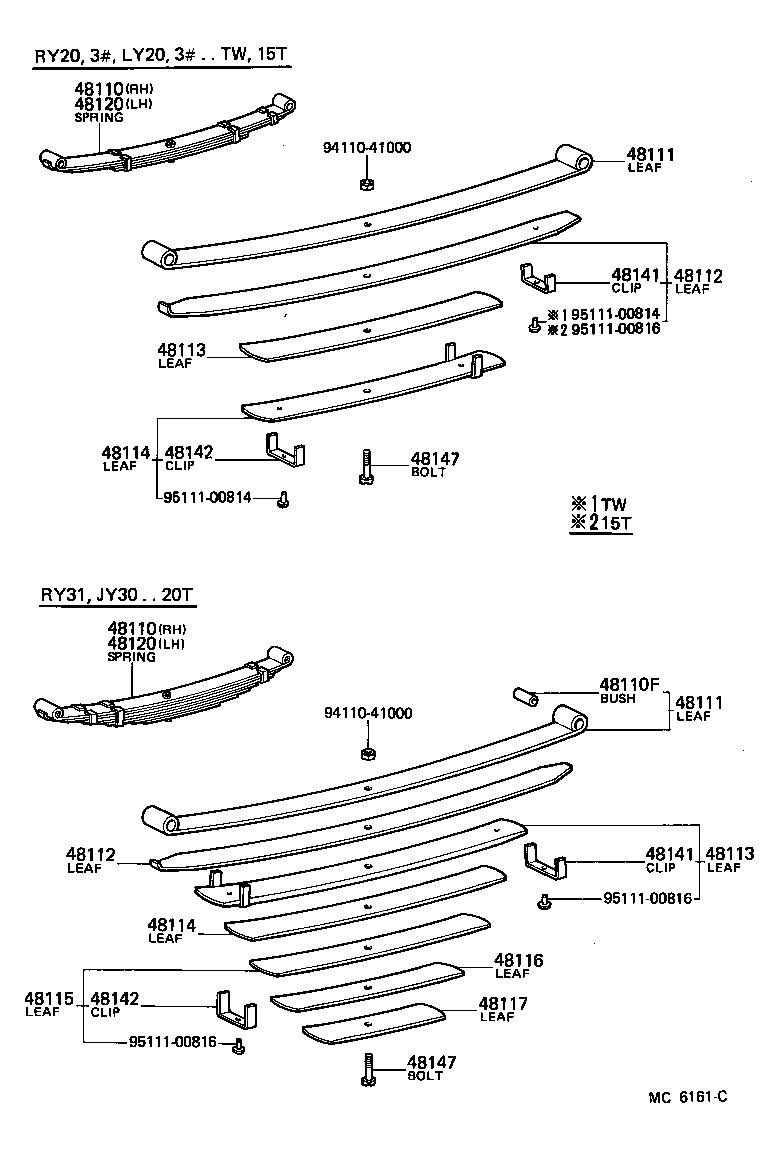

(7903- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-25150 |
LY20,3#,RY20,3#..RHD..ST..15T..CBU |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-25150 |
LY20,3#,RY20,3#..RHD..ST..15T..CBU |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48103-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48103-25150 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-25270 |
LY20,3#,RY20,3#..RHD..ST..15T..CBU |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-25270 |
LY20,3#,RY20,3#..RHD..ST..15T..CBU |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-36040 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-36040 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-36040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-36040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
4 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-36040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00814 | ||||
| 95111-00816 | ||||
