RY31R-JD (1979)
Toyota Toyoace

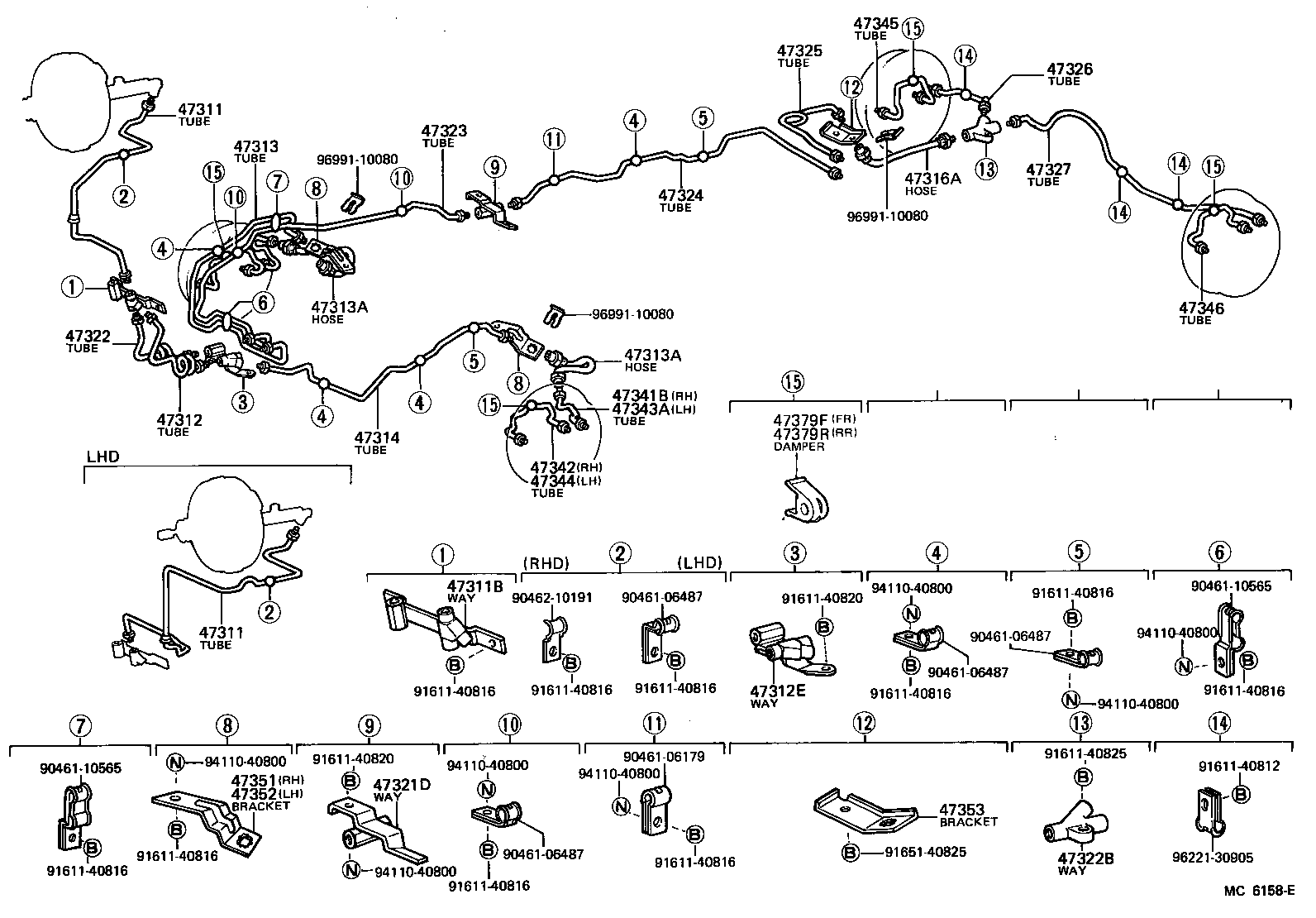

(7903-8201)125,15T..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25130 |
JY30,LY20,30,RY20,3#..RHD..GEN |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25130 |
JY30,LY20,30,RY20,3#..RHD..GEN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10075 |
JY30,LY20,30,RY20,3#..GEN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25040 |
LY20,30,RY20,3#..(125,15T)..GEN |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10073 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25070 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33605 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96950-33605 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25100 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34405 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 96940-34205 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10054 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25040 |
LY30,RY3#..125,15T |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25030 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-25040 |
RY20,3#..(125,15T)..CBU |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25030 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-25030 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47342-25011 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-25020 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47344-25011 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47345-25030 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47345-25030 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-25030 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-25050 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47379F - DAMPER, TUBE(FOR FRONT) | ||||
| 47379-25010 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 47379R - DAMPER, TUBE(FOR REAR) | ||||
| 47379-25010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| Common parts | ||||
| 90461-06179 | ||||
| 90461-06487 | ||||
| 90461-10565 | ||||
| 90462-10191 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91651-40825 | ||||
| 94110-40800 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||

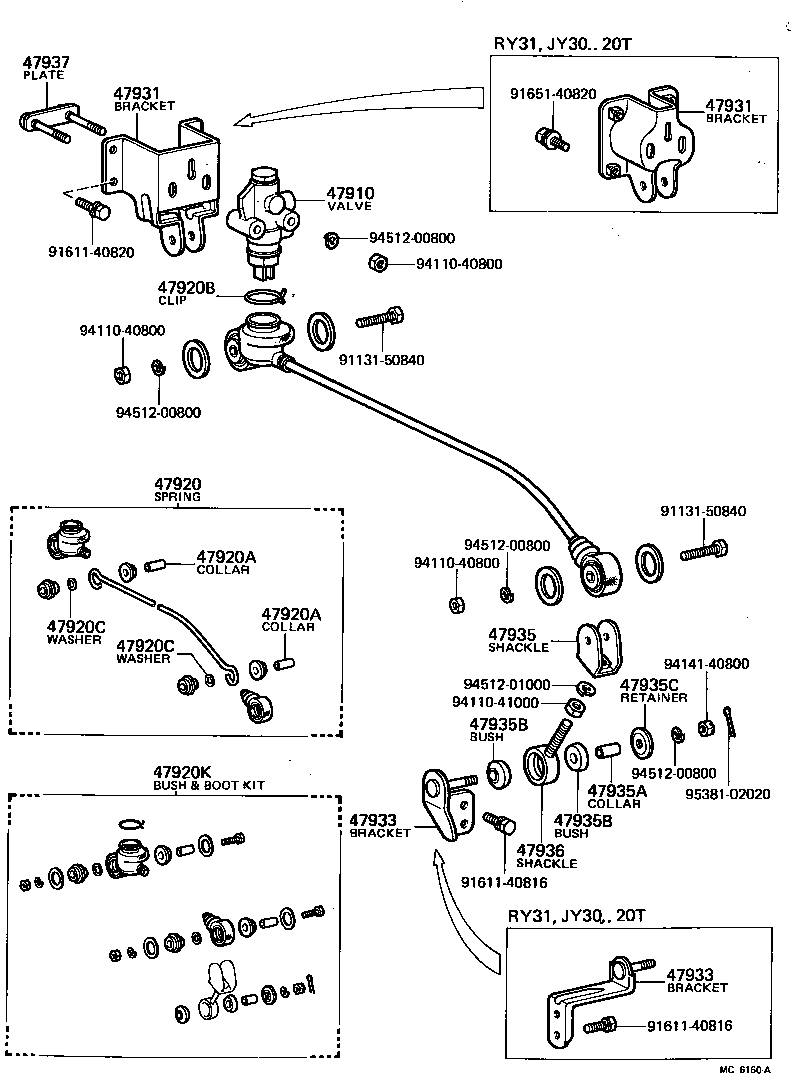

(7903-8201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-25030 |
RY31..15T..GEN;JY30,LY20,30,RY20,30 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-25010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
JY30,LY20,30,RY20,3# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
JY30,LY20,30,RY20,3# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
JY30,LY20,30,RY20,3# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
JY30,LY20,30,RY20,3# |
2 | ||
| 47920K - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-35010 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-25020 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-25020 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-26010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
JY30,LY20,30,RY20,3# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
JY30,LY20,30,RY20,3# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
JY30,LY20,30,RY20,3# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
JY30,LY20,30,RY20,3# |
1 | ||
| Common parts | ||||
| 91131-50840 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
