RY31R-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )JY30,RY20,3#

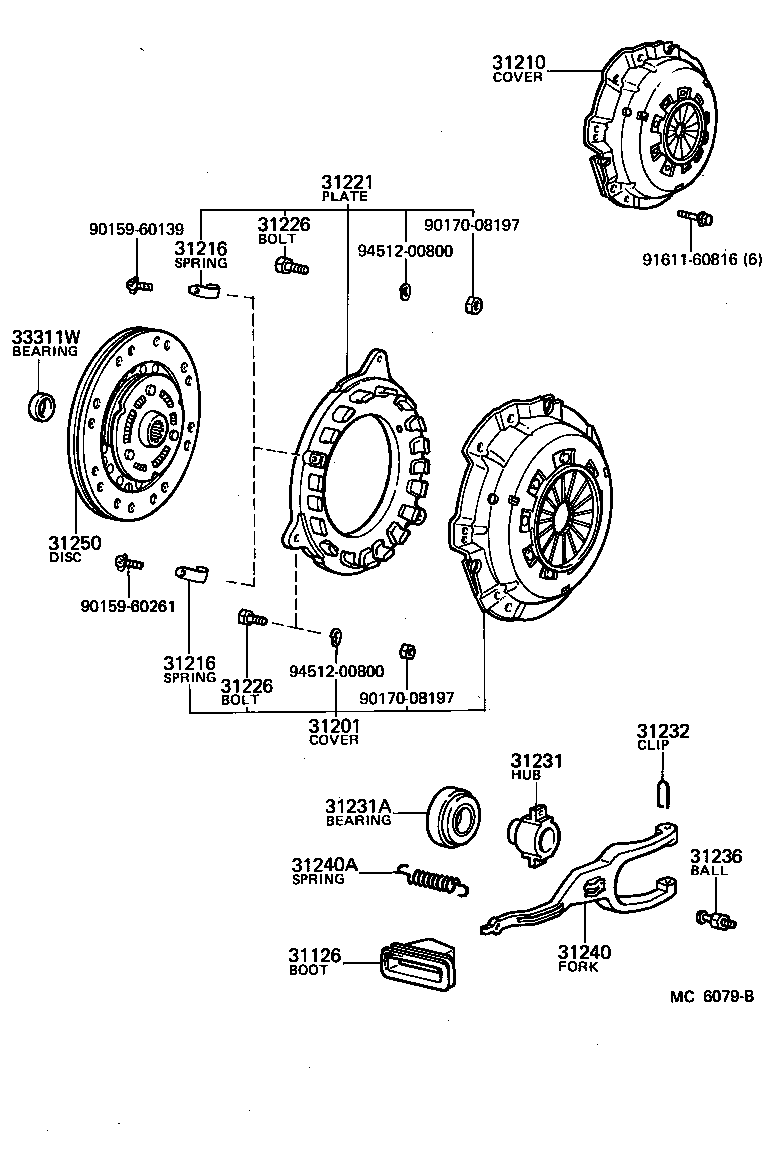

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31236 31240 31240A 31250 33311W 9015960139 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-25021

LY20,3#,RY20,3#

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29076

LY20,30,RY31

 1
31201-29075

JY30,LY20,30,RY31

 1
31201-29076

JY30,LY20,30,RY31

 1
31210 - COVER ASSY, CLUTCH
31210-36027

JY30,LY20,30,RY31

 1
31210-36028

JY30,LY20,30,RY31

 1
31210-36028

LY20,30,RY31

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LY20,3#,RY20,3#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LY20,3#,RY20,3#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

JY30,LY20,30,RY31

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LY20,30,RY31

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LY20,30,RY31

 3
31231 - HUB, CLUTCH RELEASE BEARING
31231-20051

LY20,30,RY20,3#

 1
31231-20052

LY20,30,RY20,3#

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40003

JY30,LY20,30,RY20,3#

 1
90363-40010

LY20,30,RY20,3#

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

LY20,30,RY20,3#

 2
31236 - BALL, RELEASE FORK
31236-25010

LY20,3#,RY20,3#

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20031

RY20,3#

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16466

RY20,3#

 1
90506-16004

JY30,LY20,3#

 1
31250 - DISC ASSY, CLUTCH
31250-25030

RY31

 1
33311W - BEARING (FOR INPUT SHAFT)
97143-06201

LY20,30,RY20,3#

 1
90363-12002

RY31

 1
97143-06201

JY30,LY20,30,RY20,3#

 1
Common parts
90159-60139
90159-60261
90170-08197
91611-60816
94512-00800

(7903- )LY20,3#

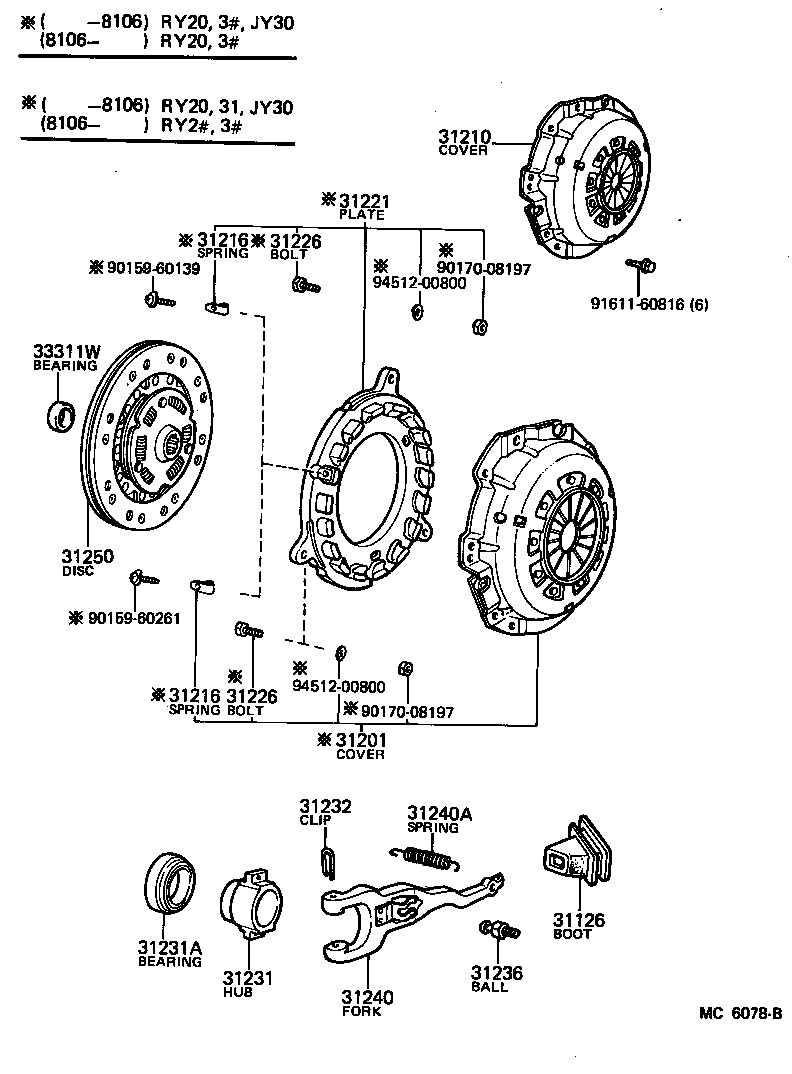

Click highlighted areas on diagram

diagram 31126 31201 31210 31216 31216 31221 31226 31226 31231 31231A 31232 31236 31240 31240A 31250 33311W 9015960139 9015960261 9017008197 9017008197 9161160816 9451200800 9451200800
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-25021

LY20,3#,RY20,3#

 1
31201 - COVER SUB-ASSY, CLUTCH
31201-29076

LY20,30,RY31

 1
31201-29075

JY30,LY20,30,RY31

 1
31201-29076

JY30,LY20,30,RY31

 1
31210 - COVER ASSY, CLUTCH
31210-36027

JY30,LY20,30,RY31

 1
31210-36028

JY30,LY20,30,RY31

 1
31210-36028

LY20,30,RY31

 1
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LY20,3#,RY20,3#

 3
31216 - SPRING, CLUTCH RETRACTING
31216-30010

LY20,3#,RY20,3#

 3
31221 - PLATE, CLUTCH PRESSURE
31221-39056

JY30,LY20,30,RY31

 1
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LY20,30,RY31

 3
31226 - BOLT, CLUTCH PRESSURE PLATE
90101-08350

LY20,30,RY31

 3
31231 - HUB, CLUTCH RELEASE BEARING
31231-20051

LY20,30,RY20,3#

 1
31231-20052

LY20,30,RY20,3#

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40003

JY30,LY20,30,RY20,3#

 1
90363-40010

LY20,30,RY20,3#

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-30010

LY20,30,RY20,3#

 2
31236 - BALL, RELEASE FORK
31236-25010

LY20,3#,RY20,3#

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20031

RY20,3#

 1
31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
90506-16466

RY20,3#

 1
90506-16004

JY30,LY20,3#

 1
31250 - DISC ASSY, CLUTCH
31250-25030

RY31

 1
33311W - BEARING (FOR INPUT SHAFT)
97143-06201

LY20,30,RY20,3#

 1
90363-12002

RY31

 1
97143-06201

JY30,LY20,30,RY20,3#

 1
Common parts
90159-60139
90159-60261
90170-08197
91611-60816
94512-00800
