RY31L-JDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8201)20T..GEN

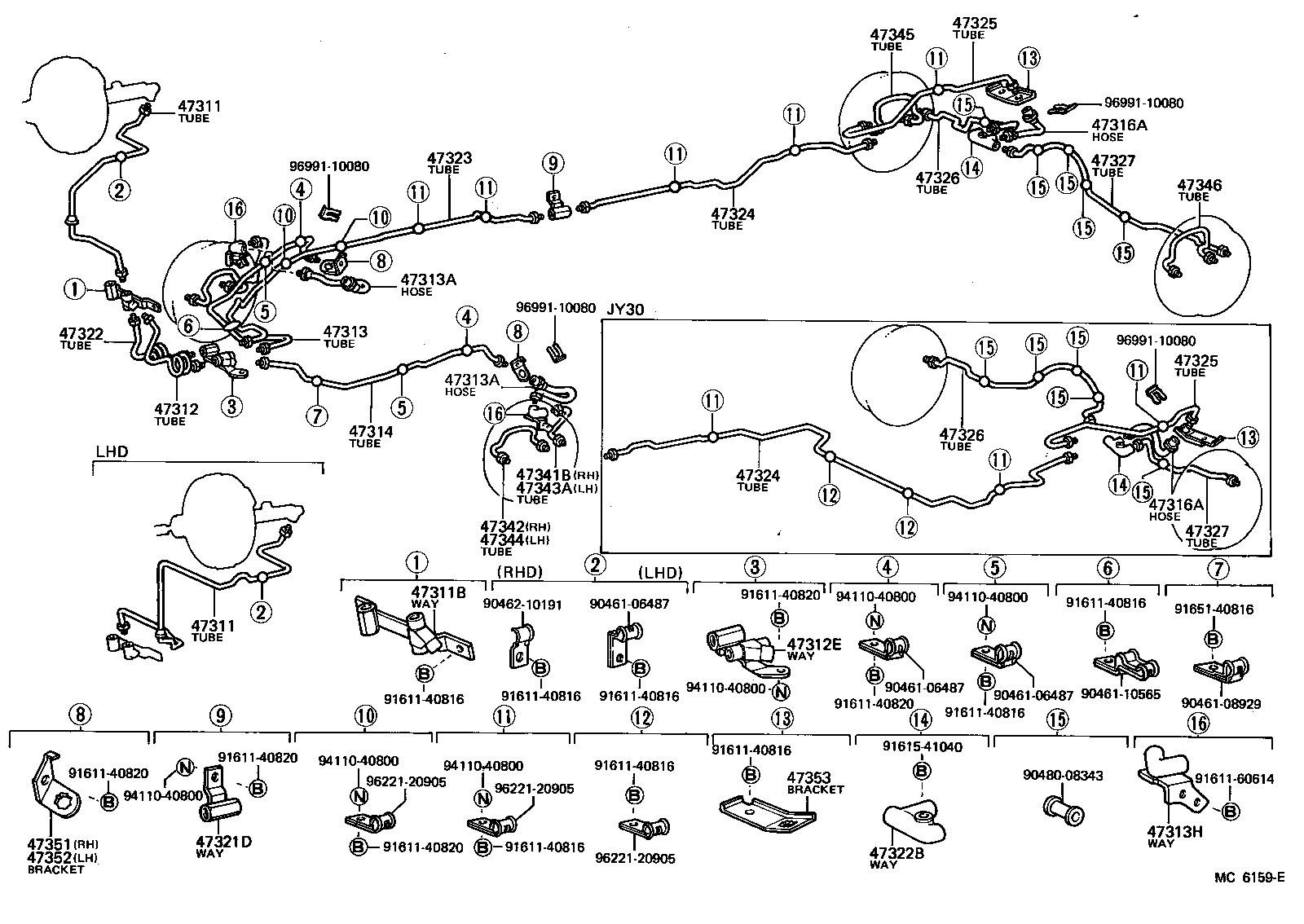

Click highlighted areas on diagram

diagram 47311 47311 47311B 47312 47312E 47313 47313A 47313A 47313H 47314 47316A 47316A 47321D 47322 47322B 47323 47324 47324 47325 47325 47326 47326 47327 47327 47341B 47342 47343A 47344 47345 47346 47351 47352 47353 9046106487 9046106487 9046106487 9046108929 9046110565 9046210191 9048008343 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140820 9161140820 9161140820 9161140820 9161140820 9161160614 9161541040 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9622120905 9622120905 9622120905 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25140

JY30,RY20,3#..LHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-25140

JY30,RY20,3#..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10075

JY30,LY20,30,RY20,3#..GEN

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25060

JY30,RY31..LHD..20T

 1
47312-25060

JY30,RY31..20T..GEN

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

JY30,LY20,30,RY20,3#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25080

JY30,RY31..20T

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33605

JY30,RY31..20T

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33605

JY30,RY31..20T

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90412-10037

JY30,RY31..20T

RH

 1
90412-10043

JY30,RY31..20T

LH

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-25110

JY30,RY31..20T

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02371

JY30,RY31..20T

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02371

JY30,RY31..20T

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10040

JY30,RY31..20T

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25030

JY30,RY31..20T

 1
47322-25031

JY30,RY31..20T

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10001

JY30,RY31..20T

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25020

JY30,RY31..20T

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25050

RY31..20T

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25050

RY31..20T

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25060

RY31..20T

 1
47325-25061

RY31..20T

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25060

RY31..20T

 1
47325-25061

RY31..20T

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-36020

RY31..20T

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-36020

RY31..20T

 1
47327 - TUBE, REAR BRAKE, NO.7
47331-36050

RY31..20T

 1
47327 - TUBE, REAR BRAKE, NO.7
47331-36050

RY31..20T

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36010

JY30,RY31..20T

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36020

JY30,RY31..20T

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36010

JY30,RY31..20T

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36020

JY30,RY31..20T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36010

JY30,RY31..20T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36010

JY30,RY31..20T

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36050

JY30,RY31..20T

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36050

JY30,RY31..20T

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25020

JY30,RY31..20T

 1
Common parts
90461-06487
90461-08929
90461-10565
90462-10191
90480-08343
91611-40816
91611-40820
91611-60614
91615-41040
91651-40816
94110-40800
96221-20905
96991-10080

(7903-8201)

Click highlighted areas on diagram

diagram 47910 47920 47920A 47920A 47920B 47920C 47920C 47920K 47931 47931 47933 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9113150840 9113150840 9161140816 9161140816 9161140820 9165140820 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-25050

RY31..20T..GEN

 1
47920 - SPRING ASSY, LOAD SENSING
47920-36020

JY30,RY31..20T

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

JY30,LY20,30,RY20,3#

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

JY30,LY20,30,RY20,3#

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

JY30,LY20,30,RY20,3#

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

JY30,LY20,30,RY20,3#

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

JY30,LY20,30,RY20,3#

 2
47920K - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-35010

JY30,LY20,30,RY20,3#

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-36030

RY31..20T

 1
47931 - BRACKET, LOAD SENSING VALVE
47931-36030

RY31..20T

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36030

JY30,RY31..20T

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36030

JY30,RY31..20T

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

JY30,LY20,30,RY20,3#

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

JY30,LY20,30,RY20,3#

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

JY30,LY20,30,RY20,3#

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

JY30,LY20,30,RY20,3#

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90948-02033

JY30,LY20,30,RY20,3#

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

JY30,LY20,30,RY20,3#

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-26010

JY30,LY20,30,RY20,3#

 1
Common parts
91131-50840
91611-40816
91611-40820
91651-40820
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

(8201- )20T

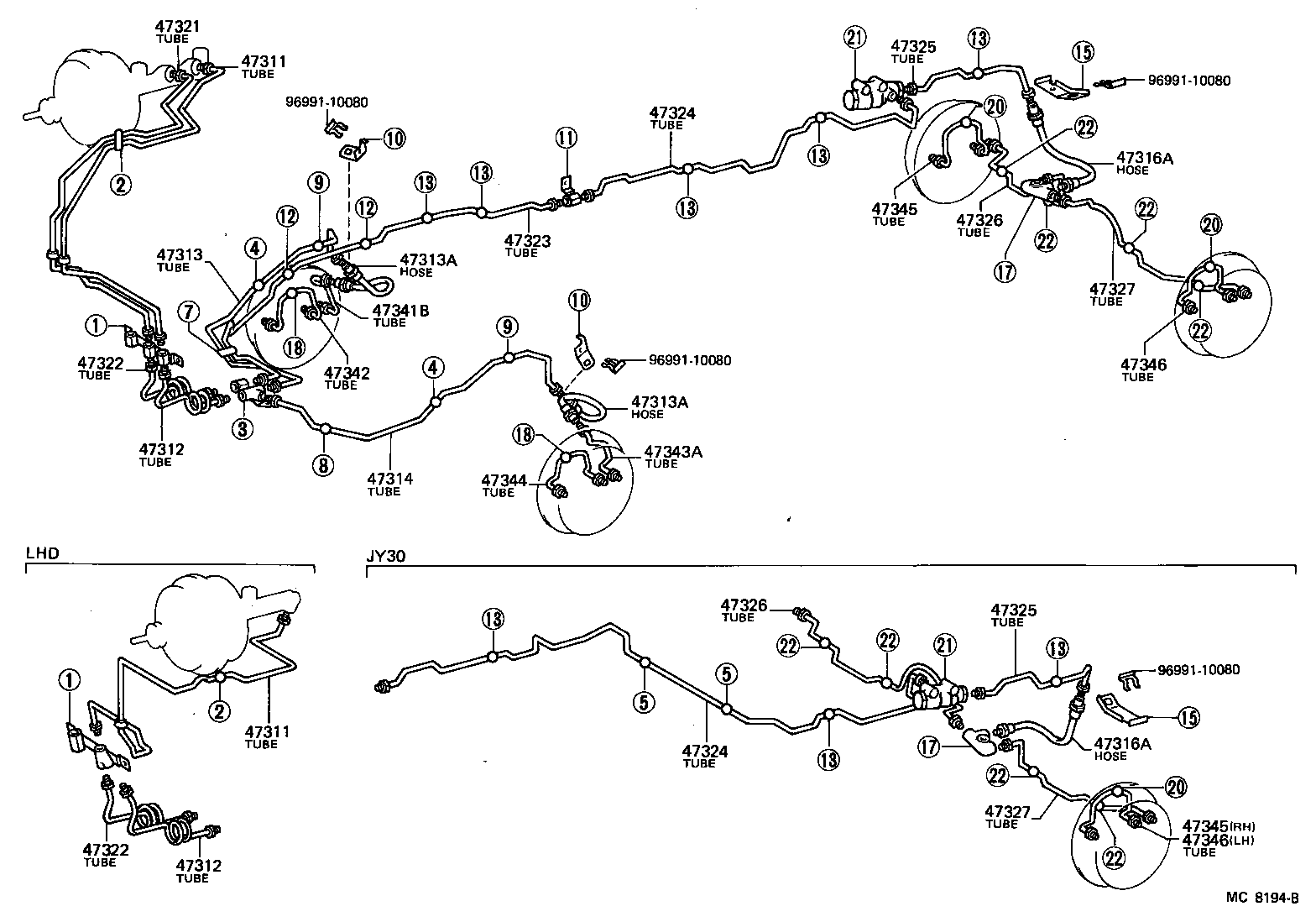

Click highlighted areas on diagram

diagram 47311 47311 47312 47312 47313 47313A 47313A 47314 47316A 47316A 47321 47322 47322 47323 47324 47324 47325 47325 47326 47326 47327 47327 47341B 47342 47343A 47344 47345 47345 47346 47346 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25140

JY30,RY20,3#..LHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-25140

JY30,RY20,3#..LHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25060

JY30,RY31..LHD..20T

 1
47312-25060

JY30,RY31..20T..GEN

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25060

JY30,RY31..LHD..20T

 1
47312-25060

JY30,RY31..20T..GEN

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25080

JY30,RY31..20T

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33605

JY30,RY31..20T

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
96940-33605

JY30,RY31..20T

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25110

JY30,RY31..20T

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02371

JY30,RY31..20T

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02371

JY30,RY31..20T

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25030

JY30,RY31..20T

 1
47322-25031

JY30,RY31..20T

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25030

JY30,RY31..20T

 1
47322-25031

JY30,RY31..20T

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25020

JY30,RY31..20T

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25050

RY31..20T

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25050

RY31..20T

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25060

RY31..20T

 1
47325-25061

RY31..20T

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25060

RY31..20T

 1
47325-25061

RY31..20T

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-36020

RY31..20T

 1
47326 - TUBE, REAR BRAKE, NO.6
47329-36020

RY31..20T

 1
47327 - TUBE, REAR BRAKE, NO.7
47331-36050

RY31..20T

 1
47327 - TUBE, REAR BRAKE, NO.7
47331-36050

RY31..20T

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-36010

JY30,RY31..20T

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-36020

JY30,RY31..20T

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-36010

JY30,RY31..20T

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47342-36020

JY30,RY31..20T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36010

JY30,RY31..20T

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-36010

JY30,RY31..20T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36010

JY30,RY31..20T

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-36010

JY30,RY31..20T

 1
Common parts
96991-10080

(8201- )

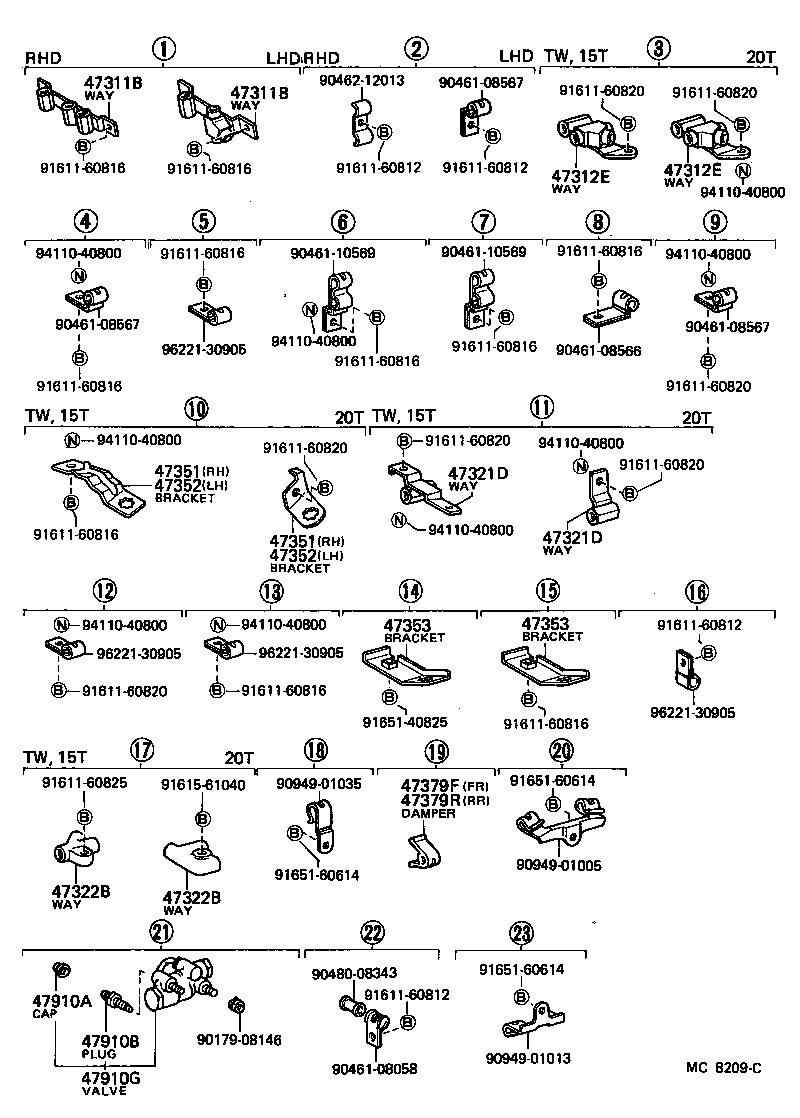

Click highlighted areas on diagram

diagram 47311B 47311B 47312E 47312E 47321D 47321D 47322B 47322B 47351 47351 47352 47352 47353 47353 47379F 47379R 47910A 47910B 47910G 9017908146 9046108058 9046108566 9046108567 9046108567 9046108567 9046110569 9046110569 9046212013 9048008343 9094901005 9094901013 9094901035 9161160812 9161160812 9161160812 9161160812 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160825 9161561040 9165140825 9165160614 9165160614 9165160614 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9622130905 9622130905 9622130905 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10075

JY30,LY20,30,RY20,3#..GEN

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10075

JY30,LY20,30,RY20,3#..GEN

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

JY30,LY20,30,RY20,3#

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10073

JY30,LY20,30,RY20,3#

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10040

JY30,RY31..20T

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10040

JY30,RY31..20T

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10001

JY30,RY31..20T

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10001

JY30,RY31..20T

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36050

JY30,RY31..20T

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-36050

JY30,RY31..20T

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36050

JY30,RY31..20T

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-36050

JY30,RY31..20T

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25020

JY30,RY31..20T

 1
47353 - BRACKET, FLEXIBLE HOSE(FOR REAR)
47353-25020

JY30,RY31..20T

 1
Common parts
90179-08146
90461-08058
90461-08566
90461-08567
90461-10569
90462-12013
90480-08343
90949-01005
90949-01013
90949-01035
91611-60812
91611-60816
91611-60820
91611-60825
91615-61040
91651-40825
91651-60614
94110-40800
96221-30905
