RY31L-JDH (1979)
Toyota Toyoace

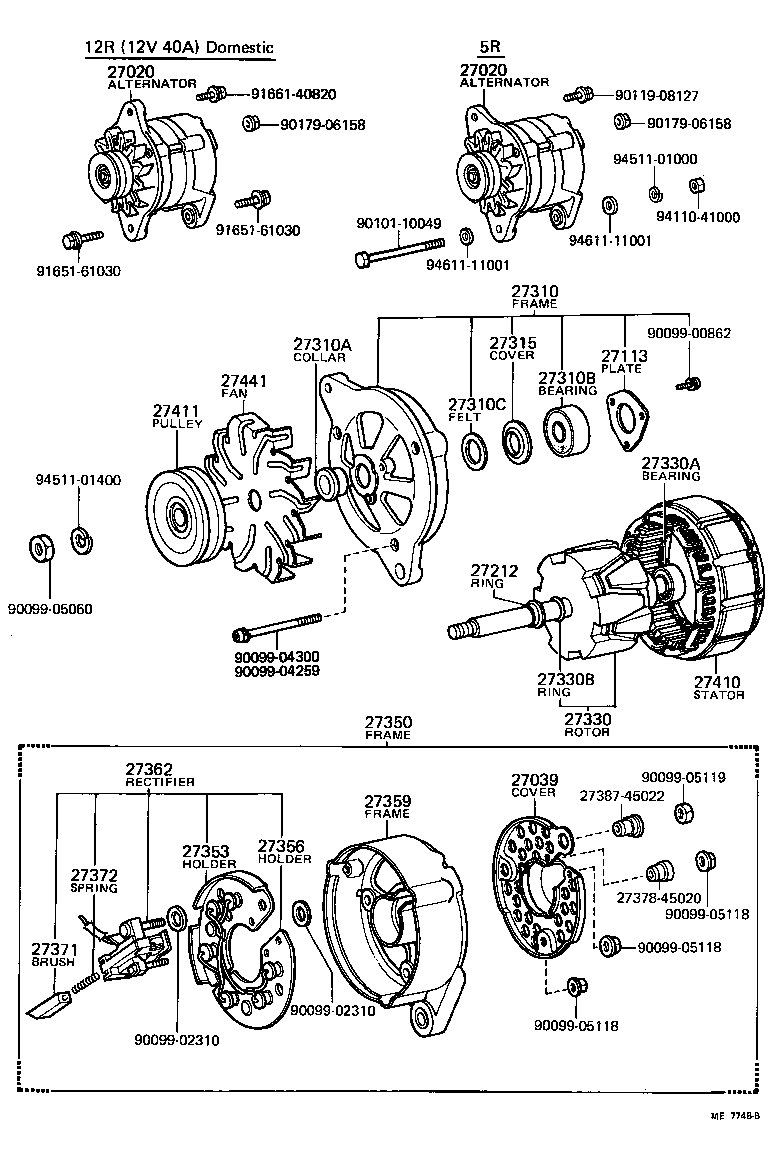

(7903-8002)5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-40065 |
5R..RY31 12V 40A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27020-40065 |
5R..RY31 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26020 |
5R..RY31 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
5R..RY31 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
5R..RY31 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RY31 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RY31 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
5R..RY31 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
5R..RY31 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RY31 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RY31 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
5R..RY31 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
5R..RY31 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RY31 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27353-26030 |
5R..RY31 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356-26030 |
5R..RY31 12V 40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-36061 |
5R..RY31 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
5R..RY31 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
5R..RY31 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RY31 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
5R..RY31 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27387-45022 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04259 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 91651-61030 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94611-11001 | ||||
(7903-8201)L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-40065 |
5R..RY31 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26020 |
5R..RY31 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
5R..RY31 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
5R..RY31 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RY31 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RY31 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
5R..RY31 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
5R..RY31 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RY31 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RY31 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
5R..RY31 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RY31 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2J,2L..JY30,LY20,3# 12V 35A,40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27353-26030 |
5R..RY31 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356-26030 |
5R..RY31 12V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
5R..RY31 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RY31 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
5R..RY31 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||

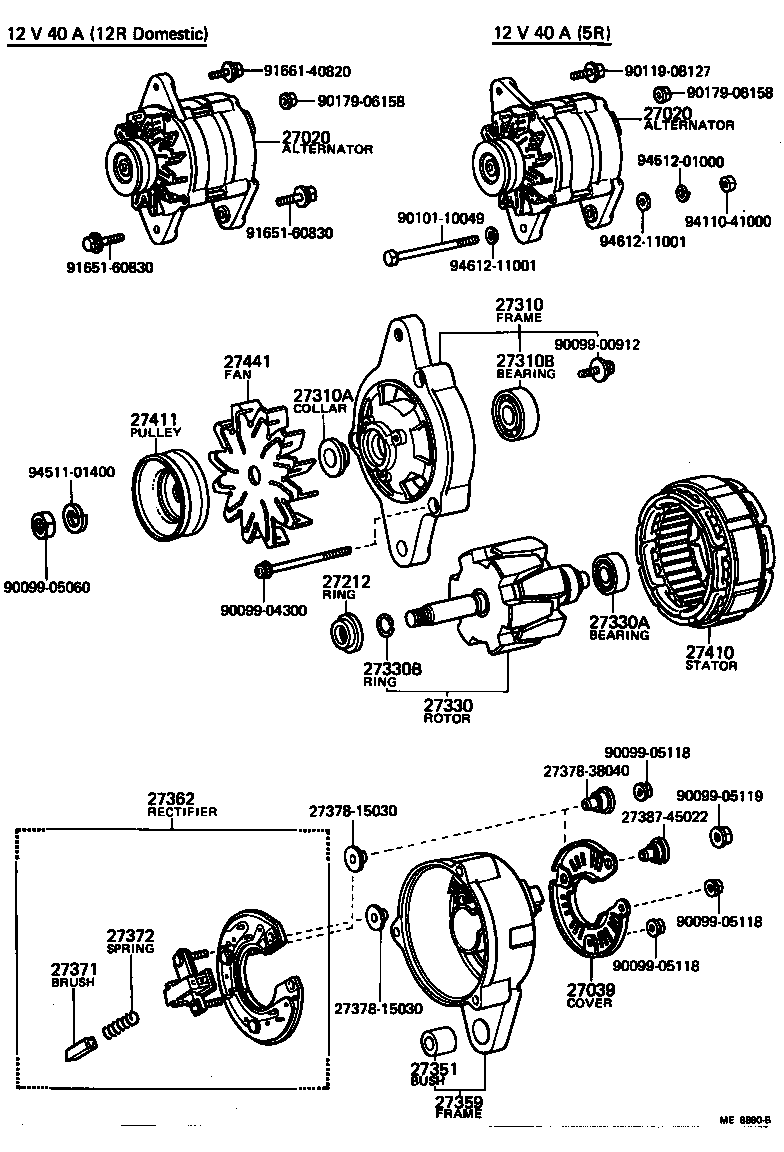

(8002- )5R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-40065 |
5R..RY31 12V 40A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27020-40065 |
5R..RY31 12V 40A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-26020 |
5R..RY31 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
5R..RY31 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RY31 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RY31 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
5R..RY31 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RY31 12V 40A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10111 |
5R..RY31 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
5R..RY31 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2J,2L..JY30,LY20,3# 12V 35A,40A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-36061 |
5R..RY31 12V 40A |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-26040 |
5R..RY31 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
5R..RY31 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RY31 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
5R..RY31 12V 40A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 91651-60830 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
| 94612-11001 | ||||
(8201- )L,2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-40065 |
5R..RY31 12V 40A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-31011 |
5R..RY31 12V 40A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 |
5R..RY31 12V 40A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-34030 |
5R..RY31 12V 40A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19075 |
5R..RY31 12V 40A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10114 |
5R..RY31 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
5R..RY31 12V 40A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 |
5R..RY31 12V 40A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-31011 |
5R..RY31 12V 40A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-33010 |
5R..RY31 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 |
5R..RY31 12V 40A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31101 |
5R..RY31 12V 40A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2J,2L..JY30,LY20,3# 12V 35A,40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27353-26030 |
5R..RY31 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27356-26030 |
5R..RY31 12V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LY20,3# 12V 40A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27371-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R,2J,5R..JY30,RY20,3# 12V 30A,35A,40A |
2 | ||
| 27372-56070 |
L,2L..LY20,3# 12V 40A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-26020 |
5R..RY31 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-45010 |
5R..RY31 12V 40A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-34030 |
5R..RY31 12V 40A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-45090 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-00893 | ||||
| 90099-01437 | ||||
| 90099-02208 | ||||
| 90099-04322 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90099-05185 | ||||
| 90099-14055 | ||||
| 90099-52082 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
| 93319-15008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
