RY31L-JDH (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

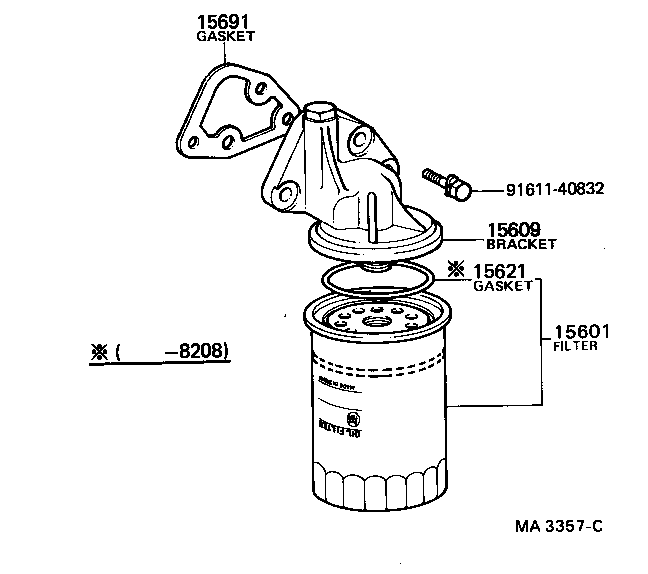

(7903- )12R,5R

Click highlighted areas on diagram

diagram 15601 15609 15621 15691 9161140832
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-25010

5R..RY31

CARTRIDGE TYPE

 1
15600-41010

L,2L..LY20,3#

 1
04152-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-44020

5R..RY31

CARTRIDGE TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

5R..RY31

CARTRIDGE TYPE

 1
15621-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15691 - GASKET, OIL FILTER
15691-40011

5R..RY31

 1
Common parts

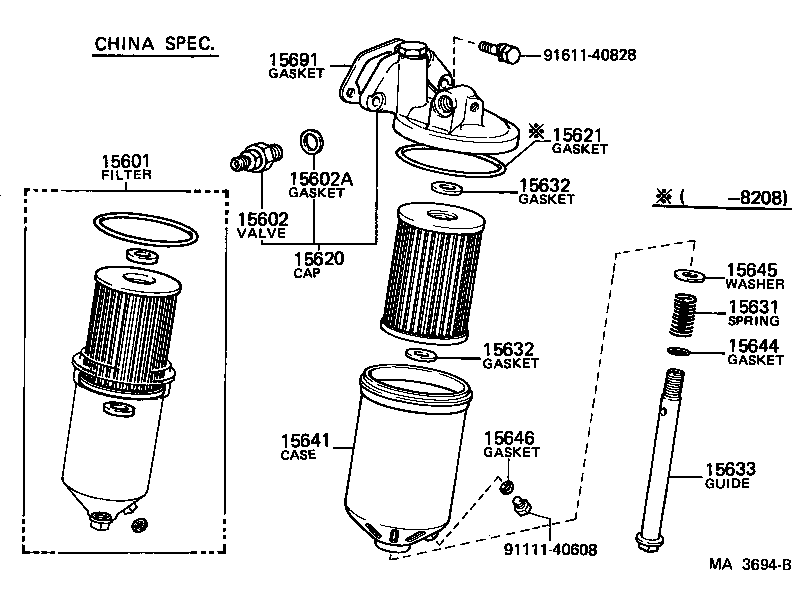

91611-40832

(7903-8308)5R

Click highlighted areas on diagram

diagram 15601 15602 15602A 15620 15621 15631 15632 15632 15633 15641 15644 15645 15646 15691 9111140608 9161140828
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-25010

5R..RY31

CARTRIDGE TYPE

 1
15600-41010

L,2L..LY20,3#

 1
04152-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15602 - VALVE SUB-ASSY, OIL PRESSURE
15310-44010

5R..RY31

 1
15602A - GASKET, OIL PRESSURE VALVE
15318-44010

5R..RY31

 1
15620 - CAP ASSY, OIL FILTER
15620-44030

5R..RY31..LHD..20T

CHINA SPEC

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

5R..RY31

CARTRIDGE TYPE

 1
15621-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15631 - SPRING, OIL FILTER ELEMENT SUPPORT
15631-21010

5R..RY31..LHD..20T

CHINA SPEC

 1
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

5R..RY31..LHD..20T

CHINA SPEC

 2
15632 - GASKET, OIL FILTER ELEMENT
15632-40020

5R..RY31..LHD..20T

CHINA SPEC

 2
15633 - GUIDE, OIL FILTER CARTRIDGE
15633-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15641 - CASE, OIL FILTER
15641-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15644 - GASKET, OIL FILTER CARTRIDGE GUIDE
15644-60010

5R..RY31..LHD..20T

CHINA SPEC

 1
15645 - WASHER, OIL FILTER CARTRIDGE GUIDE
90099-01093

5R..RY31..LHD..20T

CHINA SPEC

 1
15646 - WASHER OR GASKET, OIL FILTER DRAIN COCK
90099-01010

5R..RY31..LHD..20T

CHINA SPEC

 1
15691 - GASKET, OIL FILTER
15691-40011

5R..RY31

 1
Common parts
91111-40608
91611-40828

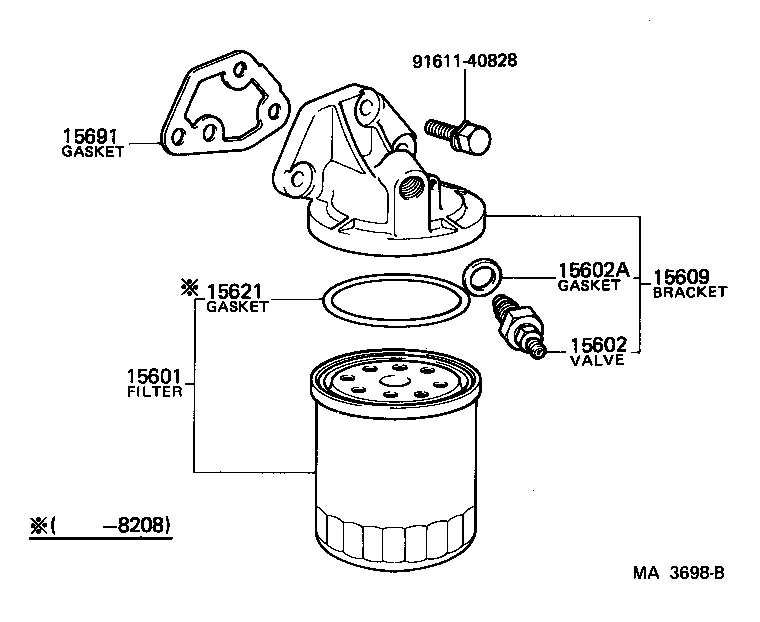

(7903- )12R,5R

Click highlighted areas on diagram

diagram 15601 15602 15602A 15609 15621 15691 9161140828
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-25010

5R..RY31

CARTRIDGE TYPE

 1
15600-41010

L,2L..LY20,3#

 1
04152-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15602 - VALVE SUB-ASSY, OIL PRESSURE
15310-44010

5R..RY31

 1
15602A - GASKET, OIL PRESSURE VALVE
15318-44010

5R..RY31

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-44020

5R..RY31

CARTRIDGE TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

5R..RY31

CARTRIDGE TYPE

 1
15621-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15691 - GASKET, OIL FILTER
15691-40011

5R..RY31

 1
Common parts
91611-40828

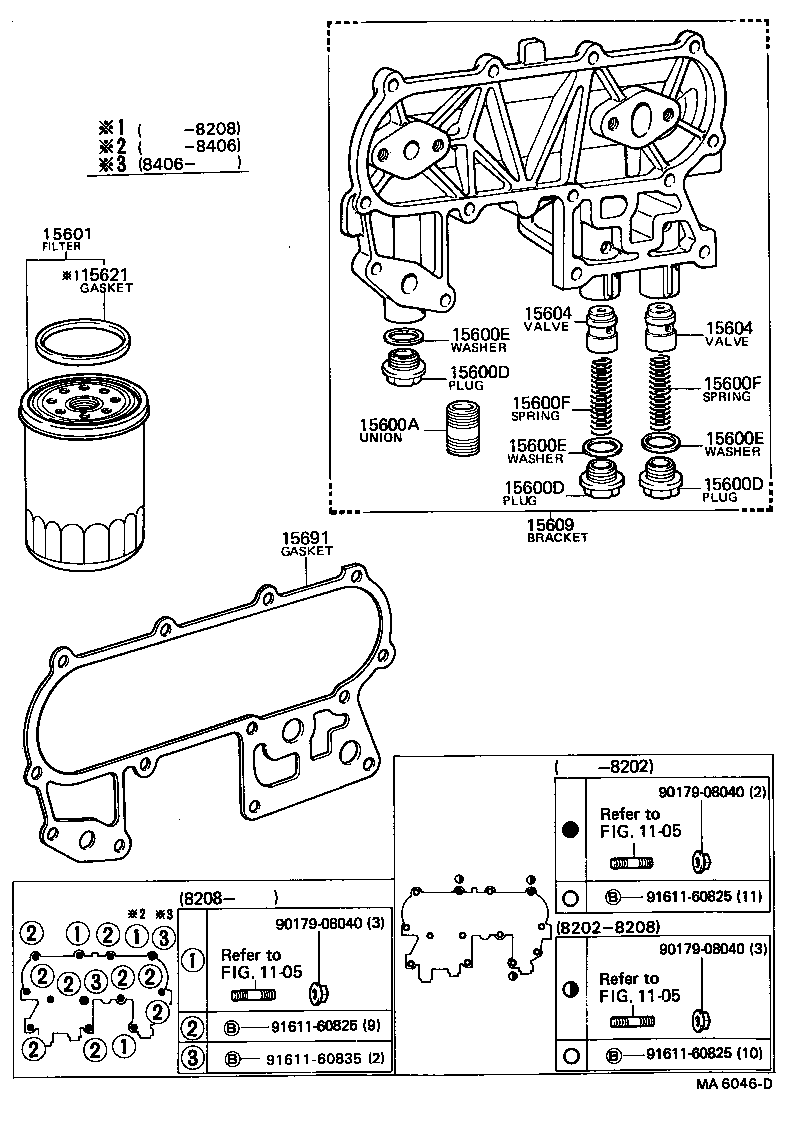

(7903- )L,2L

Click highlighted areas on diagram

diagram 1105 1105 1105 15600A 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15621 15691 9017908040 9017908040 9017908040 9161160825 9161160825 9161160825 9161160835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54010

L,2L..LY20,3#

 1
15600E - WASHER(FOR OIL FILTER)
90430-18001

L,2L..LY20,3#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

L,2L..LY20,3#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

L,2L..LY20,3#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

L,2L..LY20,3#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

L,2L..LY20,3#

 2
15601 - FILTER SUB-ASSY, OIL
15600-25010

5R..RY31

CARTRIDGE TYPE

 1
15600-41010

L,2L..LY20,3#

 1
04152-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

L,2L..LY20,3#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

L,2L..LY20,3#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-44020

5R..RY31

CARTRIDGE TYPE

 1
15621 - GASKET, OIL FILTER BODY
15621-41010

5R..RY31

CARTRIDGE TYPE

 1
15621-40020

5R..RY31..LHD..20T

CHINA SPEC

 1
15691 - GASKET, OIL FILTER
15691-40011

5R..RY31

 1
Common parts
90179-08040
91611-60825
91611-60835
Linked diagrams
1105
