RY31L-JDH (1979)
Toyota Toyoace
Production
Mar 1979
-
Aug 1983
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

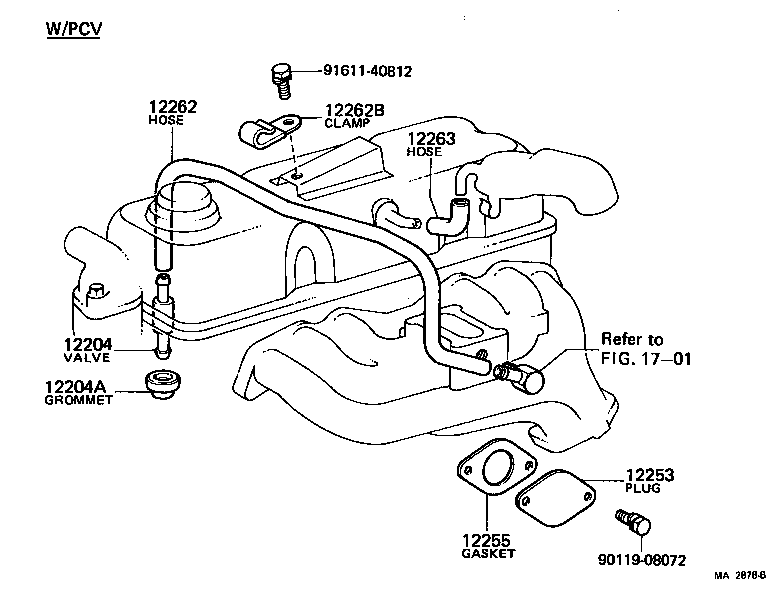

(7903- )5R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12255 - GASKET, VENTILATION | ||||
| 12255-25010 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 90119-08072 | ||||
| 91611-40812 | ||||
| Linked diagrams | ||||
| 1701 | ||||
(7903- )L,2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-54010 |
L,2L..LY20,3# |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
L,2L..LY20,3# |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-15120 |
L,2L..LY20,3# |
2 | ||

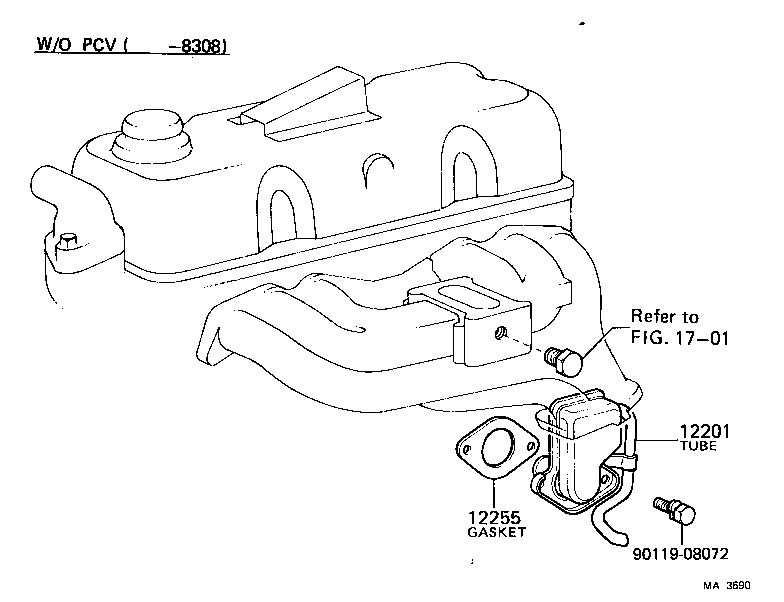

(7903- )5R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12201 - TUBE SUB-ASSY, VENTILATION | ||||
| 12201-44031 |
5R..RY31 W/O PCV |
1 | ||
| 12255 - GASKET, VENTILATION | ||||
| 12255-25010 |
5R..RY31 |
1 | ||
| Common parts | ||||
| 90119-08072 | ||||
| Linked diagrams | ||||
| 1701 | ||||
