RY31L-JDBH3 (1979)

Toyota Toyoace

Production Mar 1979 - Aug 1983
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )LHD

Click highlighted areas on diagram

diagram 33501 33504 33505 33505 33513 33513A 33517 33518 33518A 33518B 33522 33523 33523E 33530 33535 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33535A 33536 33538 33538 33538A 33538A 33571 33572 33574 33574 33607 33641 33641 33641E 33695 33696 33696A 33711 33711G 33731 33731 33731A 33731A 33732 33740 33740 33740 33740 33741 33741 33742 33742 33742A 33743C 33750 33752 9017008052 9017908146 9017908146 9017908146 9017908146 9017908146 9017908146 9020110287 9020608016 9020608016 9020608016 9020610018 9020610018 9046816012 9046816012 9046816012 9046816012 9046816012 9046816012 9111150820 9161140814 9161140820 9161140825 9411040800 9411040800 9411040800 9411041000 9411041000 9411041000 9411041000 9412040800 9412040800 9412040800 9412040800 9451200800 9451200800 9451201000 9451201000 9451201000 9451201000 9461310800 9461310800 9461310800
Part # Description Qty Price
33501 - SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33501-25060

JY30,LY20,30,RY20,3#

 1
33504 - KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33504-30110

JY30,LY20,3#,RY20,3#

 1
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17005

JY30,LY20,3#,RY20,3#

 2
33505 - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
90303-17005

JY30,LY20,3#,RY20,3#

 2
33513 - SHAFT, CONTROL SHAFT BRACKET, UPPER
33513-36020

JY30,LY20,3#,RY20,3#

 1
33513A - SPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
90501-14395

JY30,LY20,3#,RY20,3#

 1
33517 - RETAINER, CONTROL SHAFT UPPER SPRING
33517-30010

JY30,LY20,3#,RY20,3#

 1
33518 - BUSH, UPPER CONTROL SHAFT PIECE
33518-36010

JY30,LY20,3#,RY20,3#

 1
33518A - WASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33515-30010

JY30,LY20,3#,RY20,3#

 1
33518B - RING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
90523-06019

JY30,LY20,3#,RY20,3#

 1
33522 - SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33522-36010

JY30,LY20,3#,RY20,3#

 1
33523 - PIN, SHIFT LEVER (FOR COLUMN SHIFT)
90249-07001

JY30,LY20,3#,RY20,3#

 1
33523E - RING, E (FOR SHIFT LEVER PIN)
96160-00500

JY30,LY20,3#,RY20,3#

 1
33530 - LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33541-25080

JY30,RY20,3#..LHD

 1
33535 - LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535-25080

JY30,RY20,3#..LHD

 1
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33535A - BUSH (FOR CONTROL SELECT LEVER)
90386-13007

JY30,LY20,3#,RY20,3#

 6
33536 - SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33536-36040

JY30,LY20,3#,RY20,3#

 1
33538 - LINK, SHIFTING LEVER
33538-25100

JY30,RY31..LHD..20T

 1
33538 - LINK, SHIFTING LEVER
33538-25100

JY30,RY31..LHD..20T

 1
33538A - BOLT (FOR SHIFTING LEVER LINK SETTING)
33536-36040

JY30,RY31..20T

 1
33538A - BOLT (FOR SHIFTING LEVER LINK SETTING)
33536-36040

JY30,RY31..20T

 1
33571 - BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33571-25050

JY30,RY20,3#..LHD

 1
33572 - BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33572-36010

JY30,LY20,3#,RY20,3#

 1
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-25010

JY30,LY20,3#,RY20,3#

 2
33574 - RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33574-25010

JY30,LY20,3#,RY20,3#

 2
33607 - SUPPORT SUB-ASSY, CONTROL ROD (FOR COLUMN SHIFT)
33607-25010

JY30,RY31..20T

 1
33607-25020

JY30,RY31..LHD..20T

 1
33641 - LINK, SELECTING (FOR COLUMN SHIFT)
33641-25080

JY30,RY31..20T

 1
33641 - LINK, SELECTING (FOR COLUMN SHIFT)
33641-25080

JY30,RY31..20T

 1
33695 - COVER, SELECTING SPRING (FOR COLUMN SHIFT)
33695-25020

JY30,RY20,3#..LHD

 1
33696 - SEAT, SELECT SPRING
33696-36010

JY30,LY20,3#,RY20,3#

 1
33696A - SPRING, COMPRESSION
90501-20713

JY30,LY20,3#,RY20,3#

 1
33711 - LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33527-25060

JY30,LY20,30,RY20,3#

 1
33711G - BOLT, CONTROL SHAFT LEVER LOCK
33218-35010

JY30,LY20,3#,RY20,3#

 1
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-25130

JY30,RY31..LHD..20T

 1
33731 - ROD, GEAR SELECTING, NO.1 (FOR COLUMN SHIFT)
33720-25130

JY30,RY31..LHD..20T

 1
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08040

JY30,LY20,30,RY20,3#

 1
33731A - PIN, W/HOLE (FOR COLUMN SHIFT GEAR SELECTING ROD)
90240-08040

JY30,LY20,30,RY20,3#

 1
33732 - GUIDE, SELECTING ROD
33732-25030

JY30,RY31..LHD..20T

 1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30,LY20,3#,RY20,3#

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30,LY20,3#,RY20,3#

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30,LY20,3#,RY20,3#

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30,LY20,3#,RY20,3#

 4
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-25100

JY30,RY31..LHD..20T

 1
33741 - ROD, GEAR SHIFTING, NO.1 (FOR COLUMN SHIFT)
33710-25100

JY30,RY31..LHD..20T

 1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33742-25080

RY31..20T

 1
33742 - ROD, GEAR SHIFTING, NO.2(FOR COLUMN SHIFT)
33742-25080

RY31..20T

 1
33742A - BUSH(FOR SHIFTING ROD NO.2)
90389-08005

JY30,RY31..20T

 1
33743C - GROMMET
90480-17177

JY30,LY20,3#,RY20,3#

 2
33750 - END, CONNECTING ROD, NO.2 (FOR COLUMN SHIFT)
33750-35011

RY31..15T;JY30,LY20,3#,RY20,30

 1
Common parts
90170-08052
90179-08146
90201-10287
90206-08016
90206-10018
90468-16012
91111-50820
91611-40814
91611-40820
91611-40825
94110-40800
94110-41000
94120-40800
94512-00800
94512-01000
94613-10800

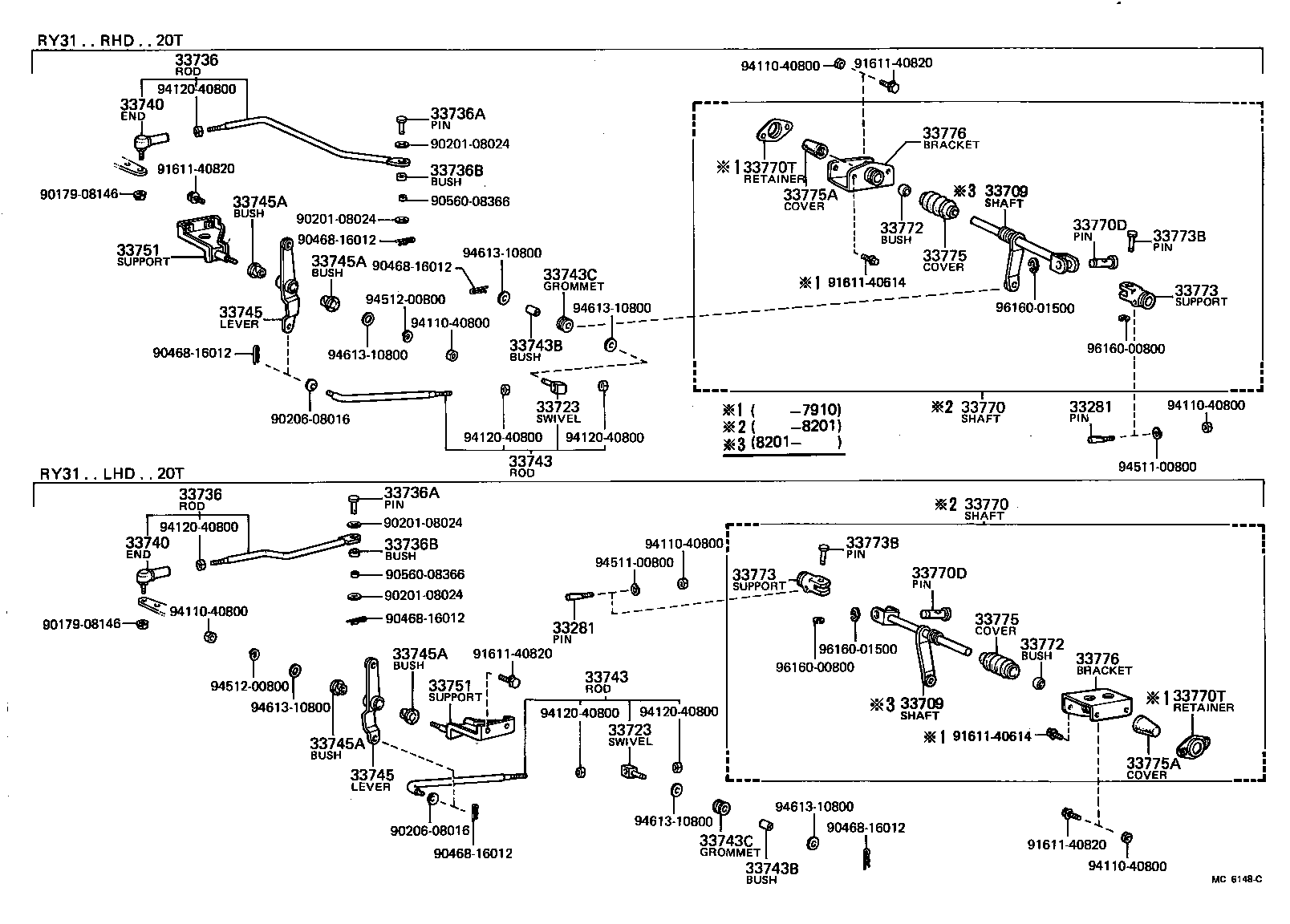

(7903- )RY31..20T

Click highlighted areas on diagram

diagram 33281 33281 33709 33709 33723 33723 33736 33736 33736A 33736A 33736B 33736B 33740 33740 33743 33743 33743B 33743B 33743C 33743C 33745 33745 33745A 33745A 33745A 33745A 33751 33751 33770 33770 33770D 33770D 33770T 33770T 33772 33772 33773 33773 33773B 33773B 33775 33775 33775A 33775A 33776 33776 9017908146 9017908148 9020108024 9020108024 9020108024 9020108024 9020608016 9020608016 9046816012 9046816012 9046816012 9046816012 9046816012 9046816012 9056008366 9056008366 9161140614 9161140614 9161140820 9161140820 9161140820 9161140820 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9412040800 9412040800 9412040800 9412040800 9412040800 9412040800 9451100800 9451100800 9451200800 9451200800 9461310800 9461310800 9461310800 9461310800 9461310800 9461310800 9616000800 9616000800 9616001500 9616001500
Part # Description Qty Price
33281 - PIN, LEVER LOCK (FOR COLUMN SHIFT)
33282-57010

LY20,3#,RY20,3#

 1
33281 - PIN, LEVER LOCK (FOR COLUMN SHIFT)
33282-57010

LY20,3#,RY20,3#

 1
33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)
33709-25070

RY31..20T..GEN

 1
33709 - SHAFT SUB-ASSY, CROSS, NO.1 (FOR COLUMN SHIFT)
33709-25070

RY31..20T..GEN

 1
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-10020

LY20,3#,RY20,3#

 1
33723 - SWIVEL, CONNECTING ROD (FOR COLUMN SHIFT)
33723-10020

LY20,3#,RY20,3#

 1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33790-25110

RY31..LHD..20T

 1
33736 - ROD, GEAR SELECTING, NO.2(FOR COLUMN SHIFT)
33790-25110

RY31..LHD..20T

 1
33736A - PIN, W/HOLE
90240-08040

JY30,LY20,30,RY20,3#

 1
33736A - PIN, W/HOLE
90240-08040

JY30,LY20,30,RY20,3#

 1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90385-10063

LY20,3#,RY20,3#

 1
33736B - BUSH(FOR GEAR SELECTING ROD, NO.2)
90385-10063

LY20,3#,RY20,3#

 1
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30,LY20,3#,RY20,3#

 4
33740 - END ASSY, CONNECTING ROD, NO.1(FOR COLUMN SHIFT)
33740-35011

JY30,LY20,3#,RY20,3#

 4
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-25020

RY31..20T

 1
33743 - ROD, GEAR SHIFTING, NO.3 (FOR COLUMN SHIFT)
33840-25020

RY31..20T

 1
33743B - BUSH, NO.1
90389-08005

LY20,3#,RY20,3#

 1
33743B - BUSH, NO.1
90389-08005

LY20,3#,RY20,3#

 1
33743C - GROMMET
90480-17177

JY30,LY20,3#,RY20,3#

 2
33743C - GROMMET
90480-17177

JY30,LY20,3#,RY20,3#

 2
33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)
33745-25070

RY31..LHD..20T

 1
33745 - LEVER, GEAR SHIFTING, NO.2 (FOR COLUMN SHIFT)
33745-25070

RY31..LHD..20T

 1
33745A - BUSH (FOR SHIFTING, NO.2 LEVER)
90386-13007

LY20,3#,RY20,3#

 2
33745A - BUSH (FOR SHIFTING, NO.2 LEVER)
90386-13007

LY20,3#,RY20,3#

 2
33745A - BUSH (FOR SHIFTING, NO.2 LEVER)
90386-13007

LY20,3#,RY20,3#

 2
33745A - BUSH (FOR SHIFTING, NO.2 LEVER)
90386-13007

LY20,3#,RY20,3#

 2
33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT)
33705-25100

RY31..LHD..20T

 1
33751 - SUPPORT, GEAR SHIFT LINK LEVER (FOR COLUMN SHIFT)
33705-25100

RY31..LHD..20T

 1
33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
33770-25070

RY31..LHD..20T

 1
33770 - SHAFT ASSY, CROSS (FOR COLUMN SHIFT)
33770-25070

RY31..LHD..20T

 1
33770D - PIN (FOR CROSS SHAFT)
90249-17001

LY20,3#,RY20,3#

 1
33770D - PIN (FOR CROSS SHAFT)
90249-17001

LY20,3#,RY20,3#

 1
33770T - RETAINER, DUST SEAL (FOR CROSS SHAFT)
33574-25020

LY20,30,RY20,3#

 1
33770T - RETAINER, DUST SEAL (FOR CROSS SHAFT)
33574-25020

LY20,30,RY20,3#

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-35011

LY20,3#,RY20,3#

 1
33772 - BUSH, NO.1, CROSS SHAFT SUPPORT (FOR COLUMN SHIFT)
33772-35011

LY20,3#,RY20,3#

 1
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-25010

LY20,3#,RY20,3#

 1
33773 - SUPPORT, CROSS SHAFT, NO.1 (FOR COLUM SHIFT)
33773-25010

LY20,3#,RY20,3#

 1
33773B - PIN (FOR CROSS SHAFT SUPPORT)
90249-10010

LY20,3#,RY20,3#

 1
33773B - PIN (FOR CROSS SHAFT SUPPORT)
90249-10010

LY20,3#,RY20,3#

 1
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-25020

LY20,3#,RY20,3#

 1
33775 - COVER, CROSS SHAFT DUST (FOR COLUMN SHIFT)
33775-25020

LY20,3#,RY20,3#

 1
33775A - COVER, CROSS SHAFT DUST
33775-25010

LY20,30,RY20,3#

 1
33775A - COVER, CROSS SHAFT DUST
33775-25010

LY20,30,RY20,3#

 1
33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33776-25040

RY31..20T

 1
33776 - BRACKET, CROSS SHAFT, NO.1 (FOR COLUMN SHIFT)
33776-25040

RY31..20T

 1
Common parts
90179-08146
90179-08148
90201-08024
90206-08016
90468-16012
90560-08366
91611-40614
91611-40820
94110-40800
94120-40800
94511-00800
94512-00800
94613-10800
96160-00800
96160-01500
