RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

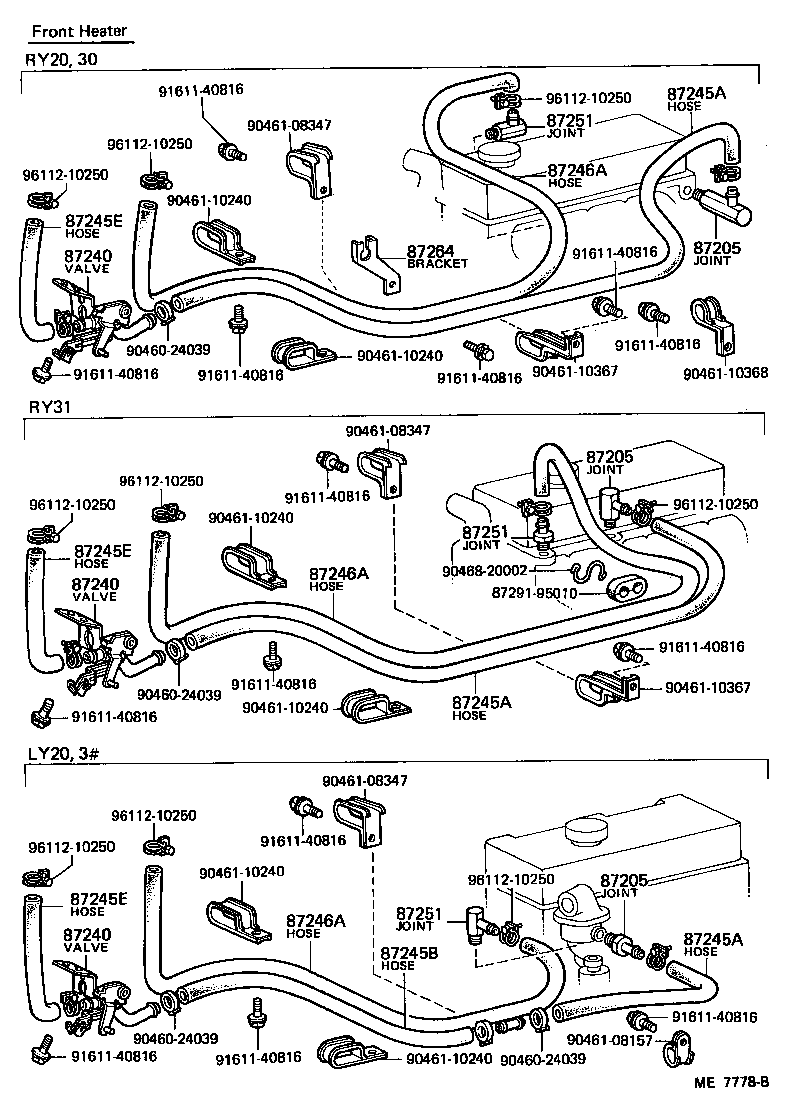

Click highlighted areas on diagram

diagram 87205 87205 87205 87240 87240 87240 87245A 87245A 87245A 87245B 87245E 87245E 87245E 87246A 87246A 87246A 87251 87251 87251 87264 8729195010 9046024039 9046024039 9046024039 9046024039 9046108157 9046108347 9046108347 9046108347 9046110240 9046110240 9046110240 9046110240 9046110240 9046110240 9046110367 9046110367 9046110368 9046820002 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

RY31

 1
87251-30200

LY20,3#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

RY31

 1
87251-30200

LY20,3#

 1
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

RY31

 1
87251-30200

LY20,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95011

JY30,RY20,3#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95011

JY30,RY20,3#..LHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-95011

JY30,RY20,3#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95025

RY31..LHD

 1
87245-95028

LY20,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95025

RY31..LHD

 1
87245-95028

LY20,3#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95025

RY31..LHD

 1
87245-95028

LY20,3#

 1
87245B - HOSE, HEATER WATER, INLET B
99552-31000

LY20,3#

*H,L=840

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95011

JY30,RY20,3#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95011

JY30,RY20,3#..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95011

JY30,RY20,3#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-32000

LY20,3#

*H,L=1260

 1
87245-95020

RY31..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-32000

LY20,3#

*H,L=1260

 1
87245-95020

RY31..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-32000

LY20,3#

*H,L=1260

 1
87245-95020

RY31..LHD

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-95010

RY31..LHD

 1
87251-30230

LY20,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-95010

RY31..LHD

 1
87251-30230

LY20,3#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-95010

RY31..LHD

 1
87251-30230

LY20,3#

 1
Common parts
87291-95010
90460-24039
90461-08157
90461-08347
90461-10240
90461-10367
90461-10368
90468-20002
91611-40816
96112-10250

(7903- )

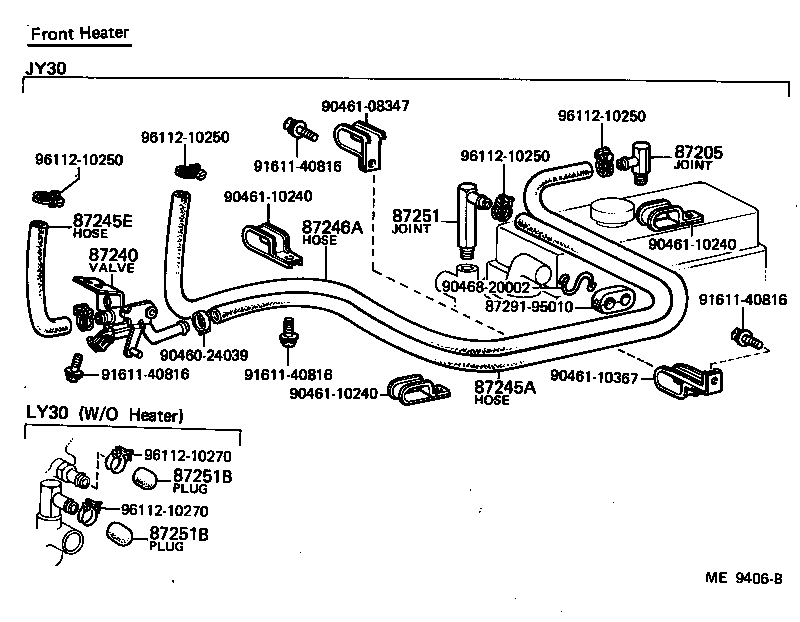

Click highlighted areas on diagram

diagram 87205 87240 87245A 87245E 87246A 87251 87251B 87251B 8729195010 9046024039 9046108347 9046110240 9046110240 9046110240 9046110367 9046820002 9161140816 9161140816 9161140816 9161140816 9611210250 9611210250 9611210250 9611210250 9611210270 9611210270
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

RY31

 1
87251-30200

LY20,3#

 1
87240 - VALVE ASSY, HEATER WATER
87240-95011

JY30,RY20,3#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95025

RY31..LHD

 1
87245-95028

LY20,3#

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95011

JY30,RY20,3#..LHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
99552-32000

LY20,3#

*H,L=1260

 1
87245-95020

RY31..LHD

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-95010

RY31..LHD

 1
87251-30230

LY20,3#

 1
Common parts
87291-95010
90460-24039
90461-08347
90461-10240
90461-10367
90468-20002
91611-40816
96112-10250
96112-10270
