RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

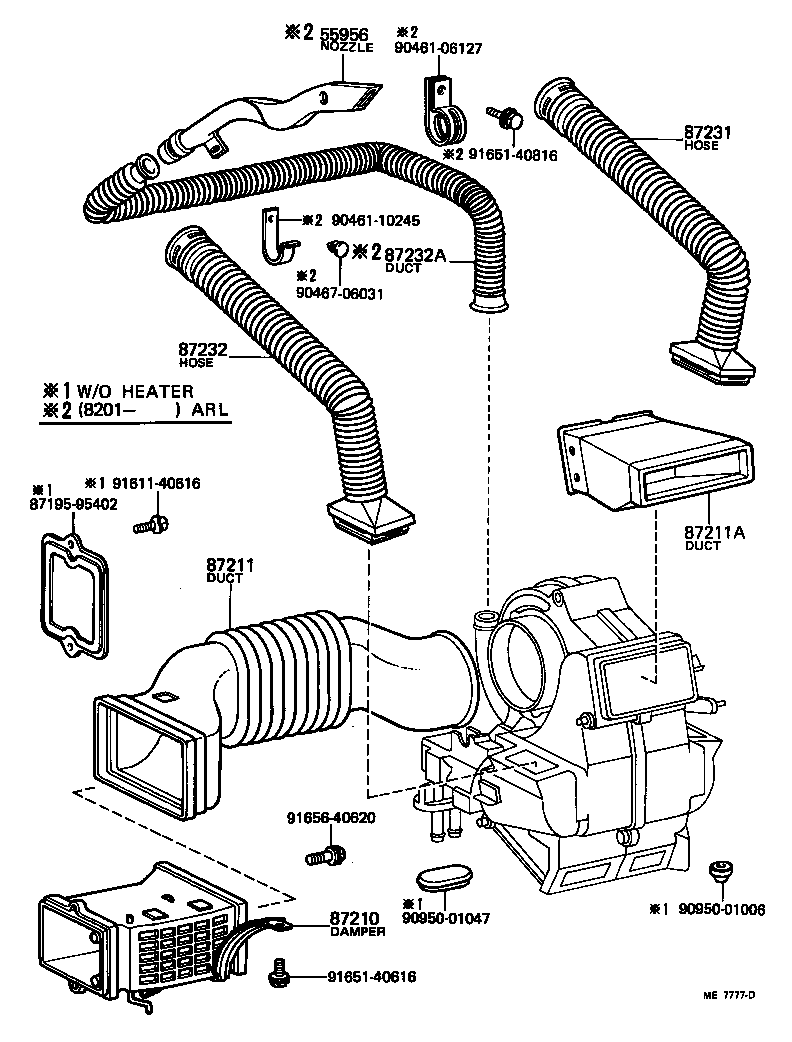

Click highlighted areas on diagram

diagram 55956 8719595402 87210 87211 87211A 87231 87232 87232A 9046106127 9046110245 9046706031 9095001006 9095001047 9161140616 9165140616 9165140816 9165640620
Part # Description Qty Price
87210 - DAMPER ASSY, AIR
87210-95011

JY30,RY20,3#..LHD

 1
87211 - DUCT, AIR, NO.1
87211-95010

JY30,LY20,3#,RY20,3#

 1
87211A - DUCT, AIR, NO.2
87201-95011

JY30,RY20,3#..LHD

 1
87231 - HOSE, HEATER DEFROSTER, RH
87231-95010

JY30,LY20,3#,RY20,3#

 1
87232 - HOSE, HEATER DEFROSTER, LH
87231-95010

JY30,LY20,3#,RY20,3#

 1
Common parts
87195-95402
90461-06127
90461-10245
90467-06031
90950-01006
90950-01047
91611-40616
91651-40616
91651-40816
91656-40620

(7903- )

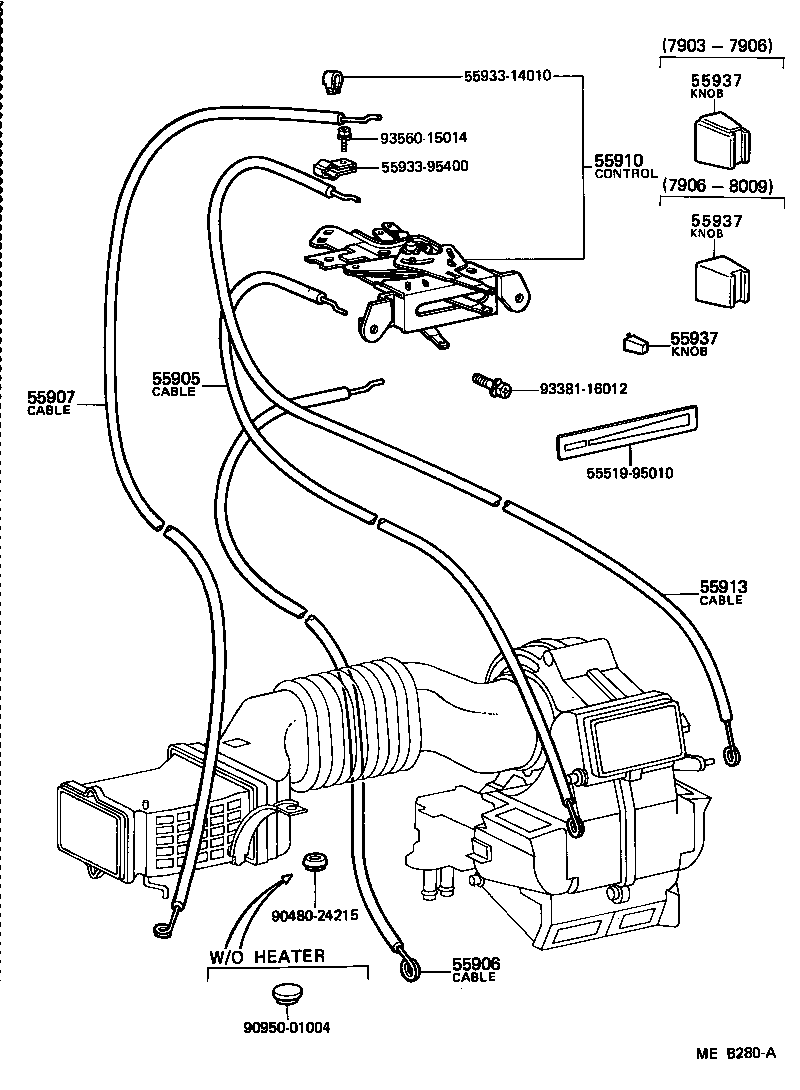

Click highlighted areas on diagram

diagram 5551995010 55905 55906 55907 55910 55913 5593314010 5593395400 55937 55937 55937 9048024215 9095001004 9338116012 9356015014
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55906-95013

JY30,RY20,3#..LHD

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-95010

JY30,LY20,3#,RY20,3#

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55908-95010

JY30,LY20,3#,RY20,3#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-95012

JY30,RY20,3#..LHD

 1
55913 - CABLE SUB-ASSY, BOOST VENT CONTROL
55909-95011

JY30,LY20,3#,RY20,3#

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

JY30,LY20,30,RY20,3#

 3
55905-20120

JY30,LY20,30,RY20,3#

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

JY30,LY20,30,RY20,3#

 3
55905-20120

JY30,LY20,30,RY20,3#

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-20140

JY30,LY20,30,RY20,3#

 3
55905-20120

JY30,LY20,30,RY20,3#

 3
Common parts
55519-95010
55933-14010
55933-95400
90480-24215
90950-01004
93381-16012
93560-15014
