RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

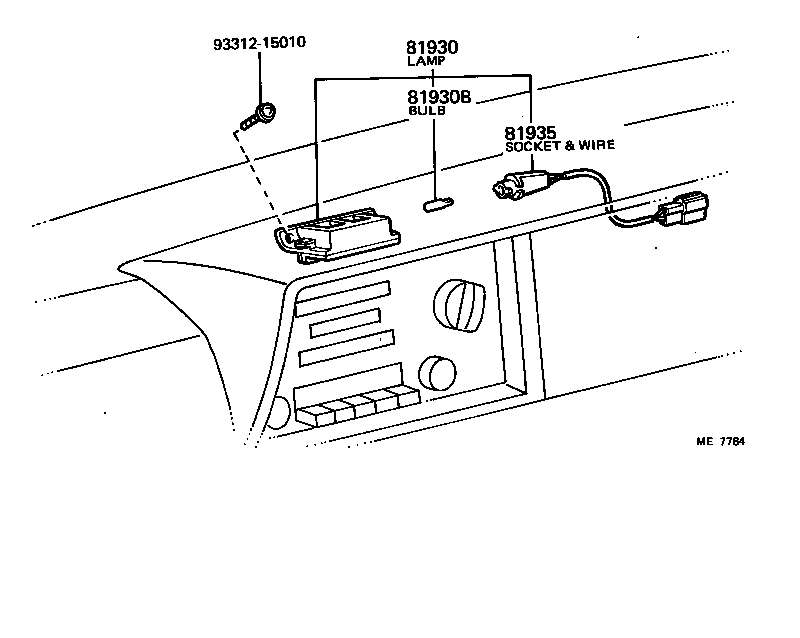

Click highlighted areas on diagram

diagram 81930 81930B 81935 9331215010
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-95010

JY30,LY20,3#,RY20,3#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
90981-11018

JY30,LY20,3#,RY20,3#

12V 1.2W W/O SOCKET,12V 1.4W

 1
81935 - SOCKET AND WIRE, HEATER CONTROL INDICATOR LAMP
81935-95010

JY30,LY20,3#,RY20,3#

 1
Common parts
93312-15010
