RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

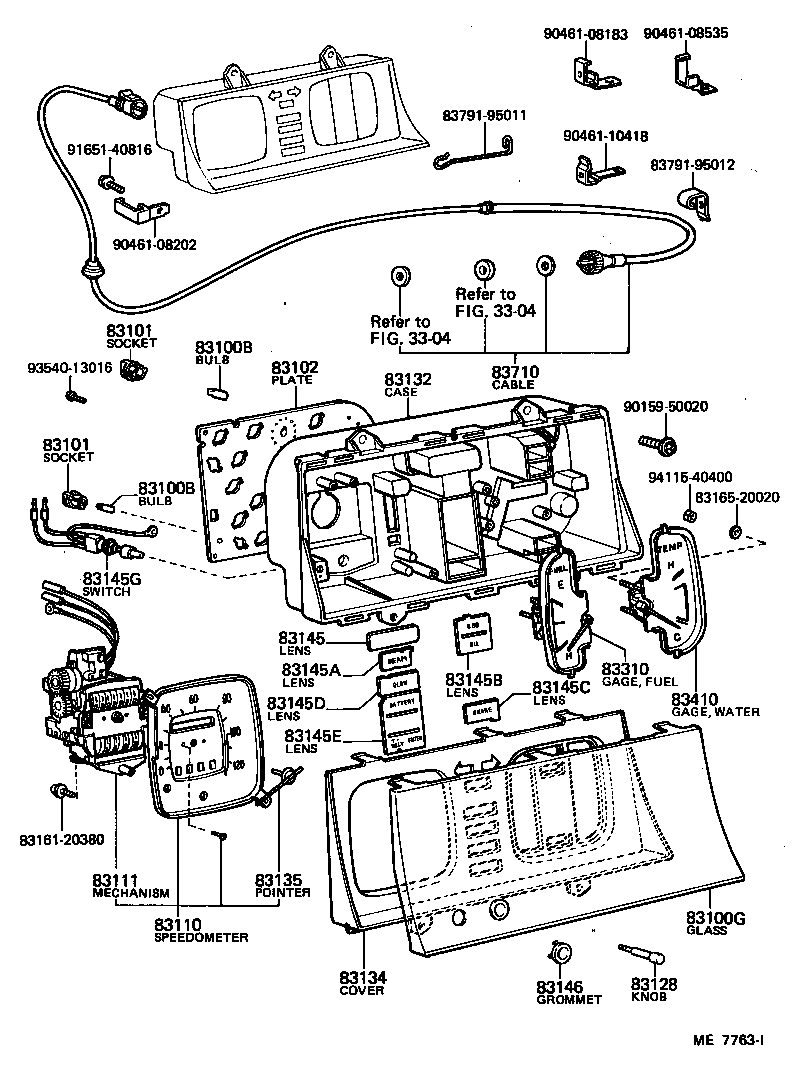

Click highlighted areas on diagram

diagram 3304 3304 83100B 83100B 83100G 83101 83101 83102 83110 83111 83128 83132 83134 83135 83145 83145A 83145B 83145C 83145D 83145E 83145G 83146 8316120380 8316520020 83310 83410 83710 8379195011 8379195012 9015950020 9046108183 9046108202 9046108535 9046110418 9165140816 9354013016 9411540400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

JY30,LY20,30,RY20,3#

12V 3.4W,12V 3.4W

 12
83100B - BULB, COMBINATION METER, NO.1
99132-12034

JY30,LY20,30,RY20,3#

12V 3.4W,12V 3.4W

 12
83100G - GLASS, COMBINATION METER
83138-95030

JY30,RY20,3#

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

JY30,LY20,3#,RY20,3#

12V 3.4W

 11
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

JY30,LY20,3#,RY20,3#

12V 3.4W

 11
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95010

JY30,RY20,3#

 1
83110 - SPEEDOMETER ASSY
83110-95012

JY30,RY20,3#..GEN

KM

 1
83110-95016

JY30,RY20,3#..GEN

MILE

 1
83111 - MECHANISM, SPEEDOMETER
83112-95016

JY30,RY20,3#

MILE

 1
83112-95012

JY30,RY20,3#

KM

 1
83132 - CASE, COMBINATION METER
83132-95010

JY30,LY20,3#,RY20,3#..GEN

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95010

JY30,LY20,3#,RY20,3#

 1
83135 - POINTER, SPEEDOMETER
83135-95A03

JY30,LY20,30,RY20,3#

 1
83145 - LENS, METER, NO.1
83145-95013

JY30,LY20,3#,RY20,3#

 1
83145A - LENS, METER, NO.2
83145-95014

JY30,LY20,30,RY20,3#

 1
83145B - LENS, METER, NO.3
83145-95015

JY30,LY20,30,RY20,3#

 1
83145C - LENS, METER, NO.4
83145-95016

JY30,LY20,30,RY20,3#

 1
83145D - LENS, METER, NO.5
83145-95017

RY20,3#..GEN

 1
83145E - LENS, METER, NO.6
83145-95018

JY30,RY20,3#

 1
83145G - SWITCH ASSY, COMBINATION METER
83125-95010

LY20,3#

 1
83146 - GROMMET, METER GLASS
83145-89117

LY20,3#

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95010

JY30,LY20,30,RY20,3#

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95010

JY30,LY20,30,RY20,3#

SENDER GAGE=83420-20011

 1
83244-95020

JY30,LY20,30,RY20,3#

SENDER GAGE=83420-20020

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-29625

RY20,3#..LHD

 1
Common parts
83161-20380
83165-20020
83791-95011
83791-95012
90159-50020
90461-08183
90461-08202
90461-08535
90461-10418
91651-40816
93540-13016
94115-40400
Linked diagrams
3304
