RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

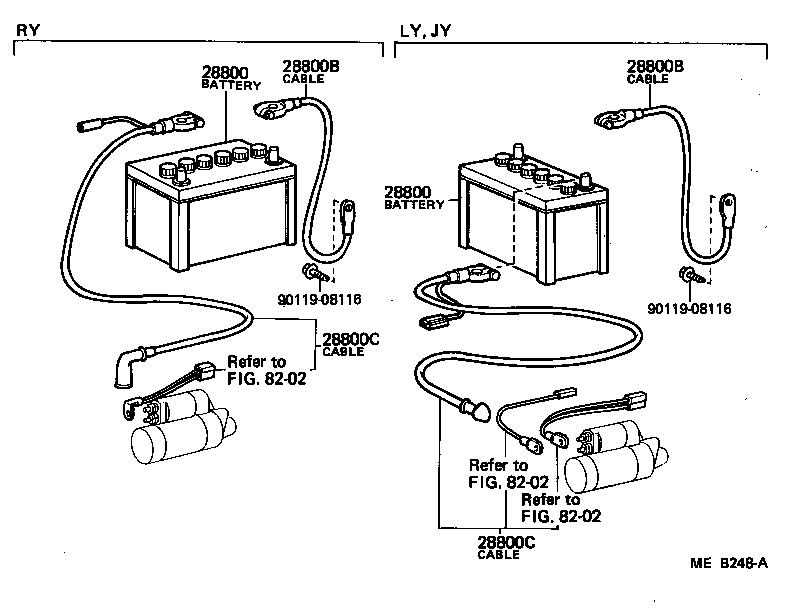

Click highlighted areas on diagram

diagram 28800 28800 28800B 28800B 28800C 28800C 8202 8202 8202 9011908116 9011908116
Part # Description Qty Price
28800 - BATTERY
28800-30082

12R,5R..RY20,3#

48D26R,N50

 1
28800-26040

12R,5R..RY20,3#

34B19L,NS40ZAL

 1
28800 - BATTERY
28800-30082

12R,5R..RY20,3#

48D26R,N50

 1
28800-26040

12R,5R..RY20,3#

34B19L,NS40ZAL

 1
28800B - CABLE, BATTERY TO GROUND
90982-02173

12R,5R..RY3#..125,15T

N50

 1
90982-02161

12R,5R..RY3#..125,15T

NS40ZAL

 1
28800B - CABLE, BATTERY TO GROUND
90982-02173

12R,5R..RY3#..125,15T

N50

 1
90982-02161

12R,5R..RY3#..125,15T

NS40ZAL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01319

12R,5R..RY3#..LHD..(125,15T)

N50

 1
90982-01281

12R,5R..RY3#..LHD

NS40ZAL

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01319

12R,5R..RY3#..LHD..(125,15T)

N50

 1
90982-01281

12R,5R..RY3#..LHD

NS40ZAL

 1
Common parts
90119-08116
Linked diagrams
8202
