RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

Click highlighted areas on diagram

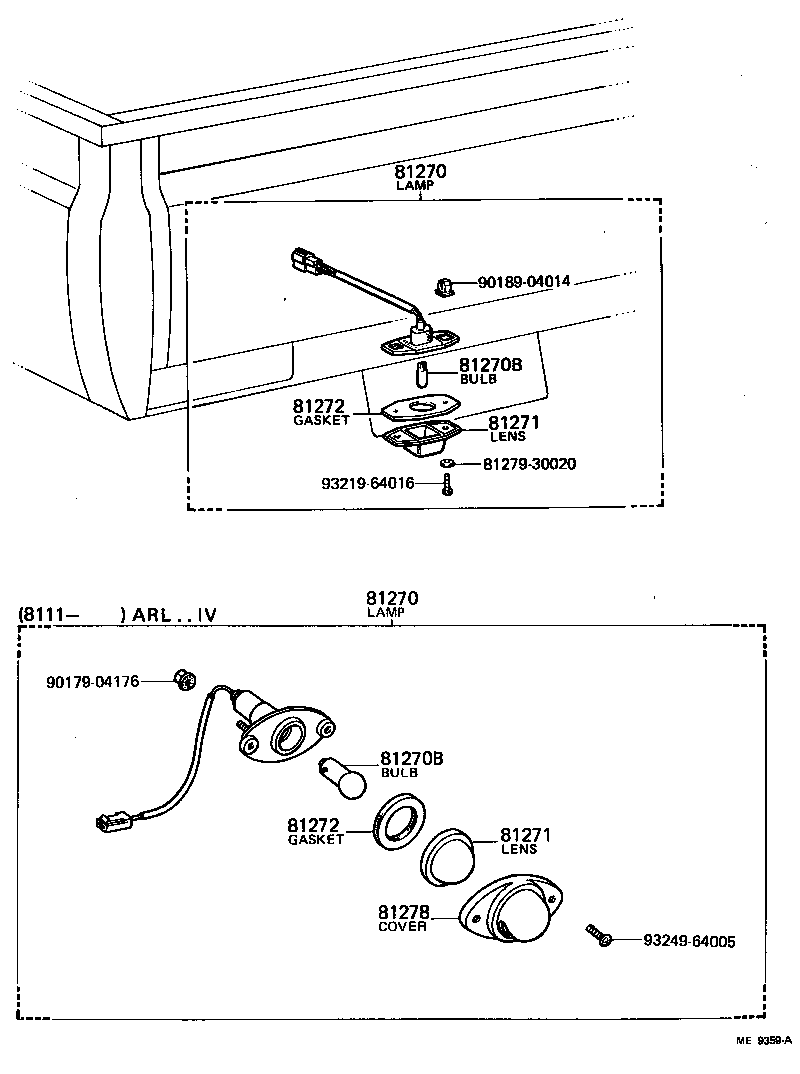

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 81278 8127930020 9017904176 9018904014 9321964016 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-29395

JY30,LY20,30,RY20,3#

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-29395

JY30,LY20,30,RY20,3#

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

JY30,LY20,30,RY20,3#

12V 5W,12V 5W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050

JY30,LY20,30,RY20,3#

12V 5W,12V 5W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

JY30,LY20,30,RY20,3#

 2
81271 - LENS, LICENSE PLATE LAMP
81271-89110

JY30,LY20,30,RY20,3#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

JY30,LY20,30,RY20,3#

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-89110

JY30,LY20,30,RY20,3#

 2
Common parts
81279-30020
90179-04176
90189-04014
93219-64016
93249-64005
