RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8201)

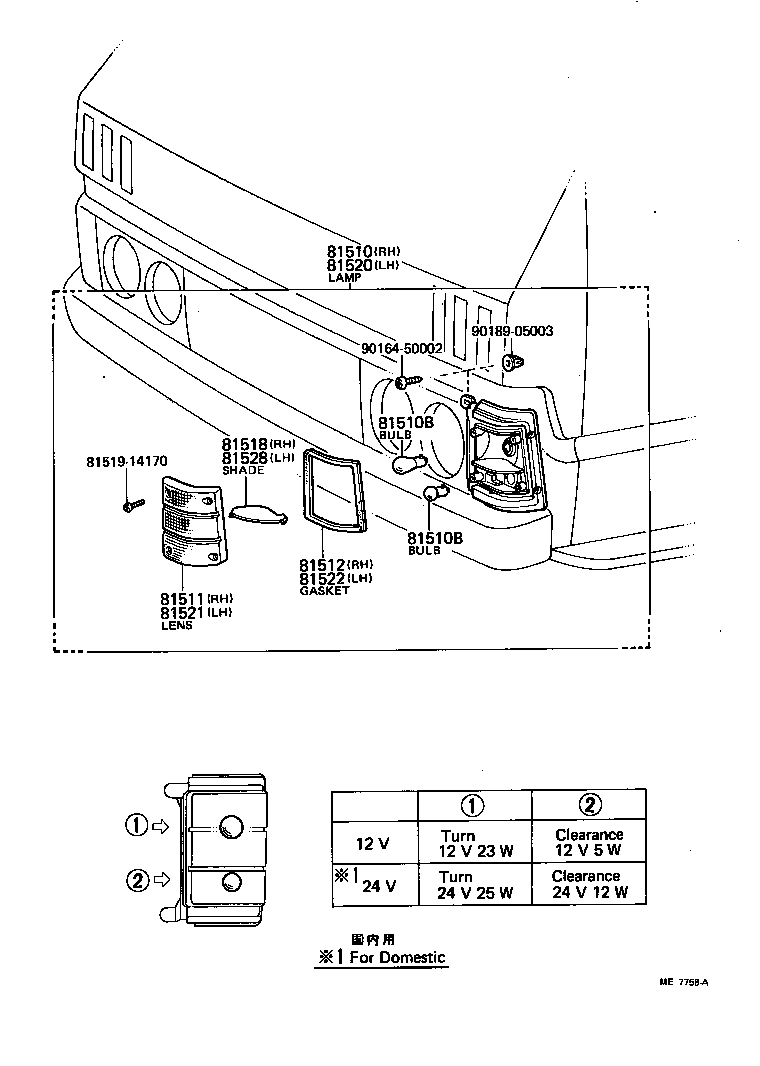

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81512 81518 8151914170 81520 81521 81522 81528 9016450002 9018905003
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29545

JY30,LY20,30,RY20,3#..GEN

CLEAR

 1
81510-29525

JY30,LY20,30,RY20,3#..GEN

AMBER

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 2
99132-11050

JY30,LY20,3#,RY20,3#

12V 5W,12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11230

JY30,LY20,3#,RY20,3#

12V 23W,12V 23W

 2
99132-11050

JY30,LY20,3#,RY20,3#

12V 5W,12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95012

JY30,LY20,30,RY20,3#..GEN

CLEAR

 1
81511-95010

JY30,LY20,30,RY20,3#..GEN

AMBER

 1
81512 - GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81512-95010

JY30,LY20,30,RY20,3#

 1
81518 - SHADE, FRONT TURN SIGNAL LAMP, RH
81517-95010

JY30,LY20,30,RY20,3#

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29525

JY30,LY20,30,RY20,3#..GEN

AMBER

 1
81520-29545

JY30,LY20,30,RY20,3#..GEN

CLEAR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95012

JY30,LY20,30,RY20,3#..GEN

CLEAR

 1
81521-95010

JY30,LY20,30,RY20,3#..GEN

AMBER

 1
81522 - GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81512-95010

JY30,LY20,30,RY20,3#

 1
81528 - SHADE, FRONT TURN SIGNAL LAMP, LH
81517-95010

JY30,LY20,30,RY20,3#

 1
Common parts
81519-14170
90164-50002
90189-05003
