RY31L-JD (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )LY20,3#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95041 |
RY31..LHD |
1 | ||
| 78180-95044 |
RY31..LHD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-20041 |
RY31 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95014 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95050 |
RY31 |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78191-95010 |
LY20,3# |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90386-10138 | ||||
| 90461-08426 | ||||
| 90461-08574 | ||||
| 90461-10357 | ||||
| 90468-06009 | ||||
| 90508-16010 | ||||
| 90508-18029 | ||||
| 90508-20016 | ||||
| 90989-01007 | ||||
| 91131-40670 | ||||
| 91131-40871 | ||||
| 91611-40614 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40620 | ||||
| 91655-40820 | ||||
| 94110-40800 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
(7903-8308)RY31..LHD

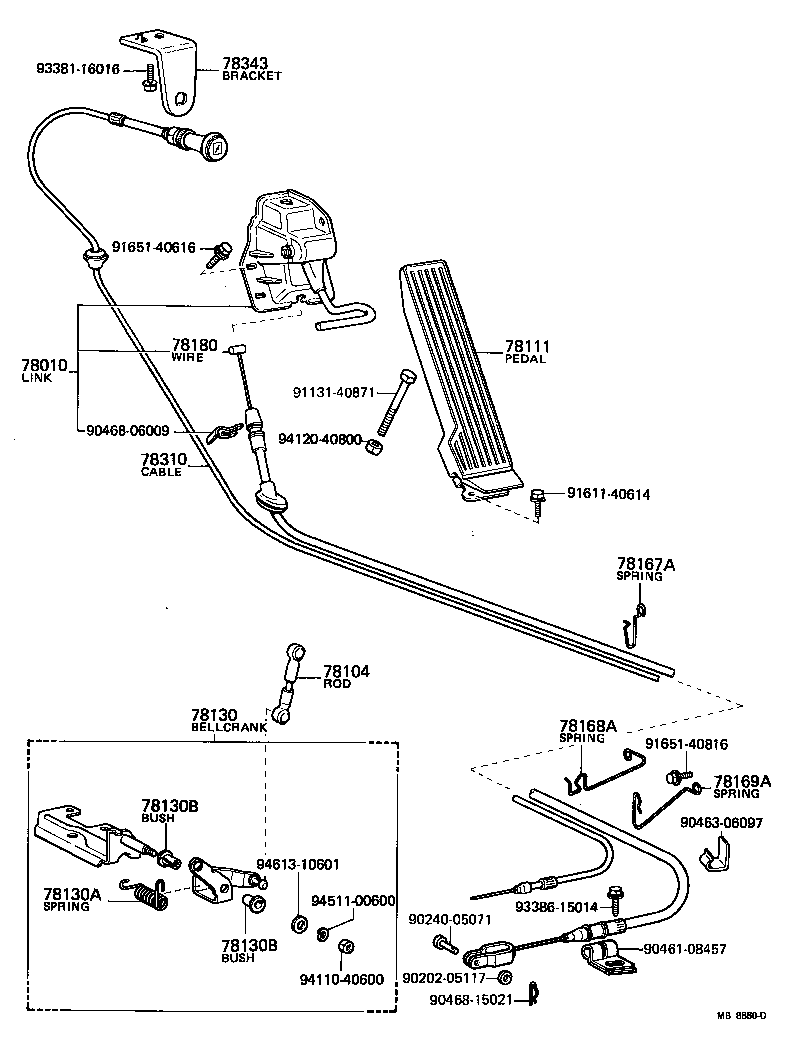

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95041 |
RY31..LHD |
1 | ||
| 78180-95044 |
RY31..LHD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-20041 |
RY31 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95014 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-95011 |
RY31 |
1 | ||
| 78130A - SPRING (FOR ACCELERATOR ROD RETURN) | ||||
| 90508-16027 |
RY31 |
1 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08024 |
RY31 |
2 | ||
| 78130B - BUSH, ACCELERATOR BELLCRANK | ||||
| 90386-08024 |
RY31 |
2 | ||
| 78167A - SPRING, CLAMP, NO.2 | ||||
| 78167-95010 |
JY30,RY20,3#..LHD |
1 | ||
| 78168A - SPRING, CLAMP, NO.3 | ||||
| 78168-95010 |
JY30,RY20,3# |
1 | ||
| 78169A - SPRING, CLAMP, NO.4 | ||||
| 78169-95014 |
RY20,3# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95050 |
RY31 |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95029 |
RY31..LHD |
1 | ||
| 78343 - BRACKET, CHOKE ROD | ||||
| 78312-95011 |
RY20,3#..LHD INSTRUMENT PANEL |
1 | ||
| Common parts | ||||
| 90202-05117 | ||||
| 90240-05071 | ||||
| 90461-08457 | ||||
| 90463-06097 | ||||
| 90468-06009 | ||||
| 90468-15021 | ||||
| 91131-40871 | ||||
| 91611-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 93381-16016 | ||||
| 93386-15014 | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00601 | ||||
| 94613-10601 | ||||
