RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

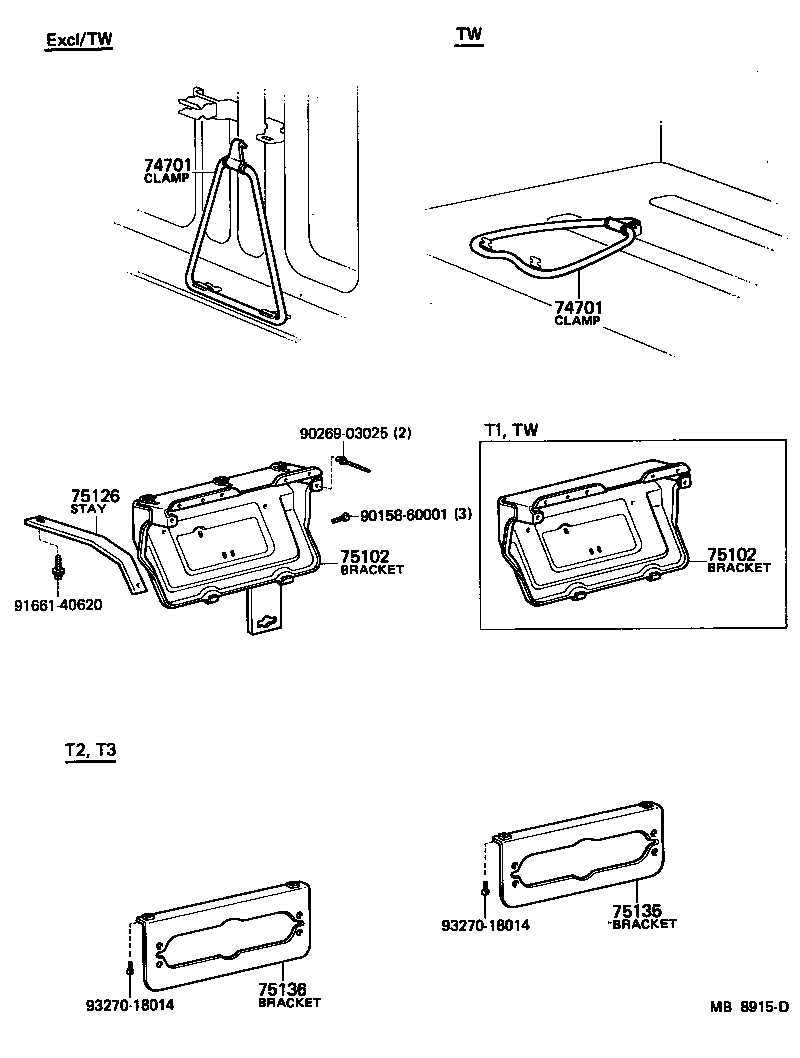

Click highlighted areas on diagram

diagram 74701 74701 75102 75102 75126 75135 75136 9015860001 9026903025 9166140620 9327018014 9327018014
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

JY30,LY20,3#,RY20,3#

 1
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

JY30,LY20,3#,RY20,3#

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY20..CBU;RY20,3#..T1,T2,TW;JY30,LY30..(T1,TW)..(125,20T)

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95019

LY20..CBU;RY20,3#..T1,T2,TW;JY30,LY30..(T1,TW)..(125,20T)

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95017

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
Common parts
90158-60001
90269-03025
91661-40620
93270-18014
