RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

Click highlighted areas on diagram

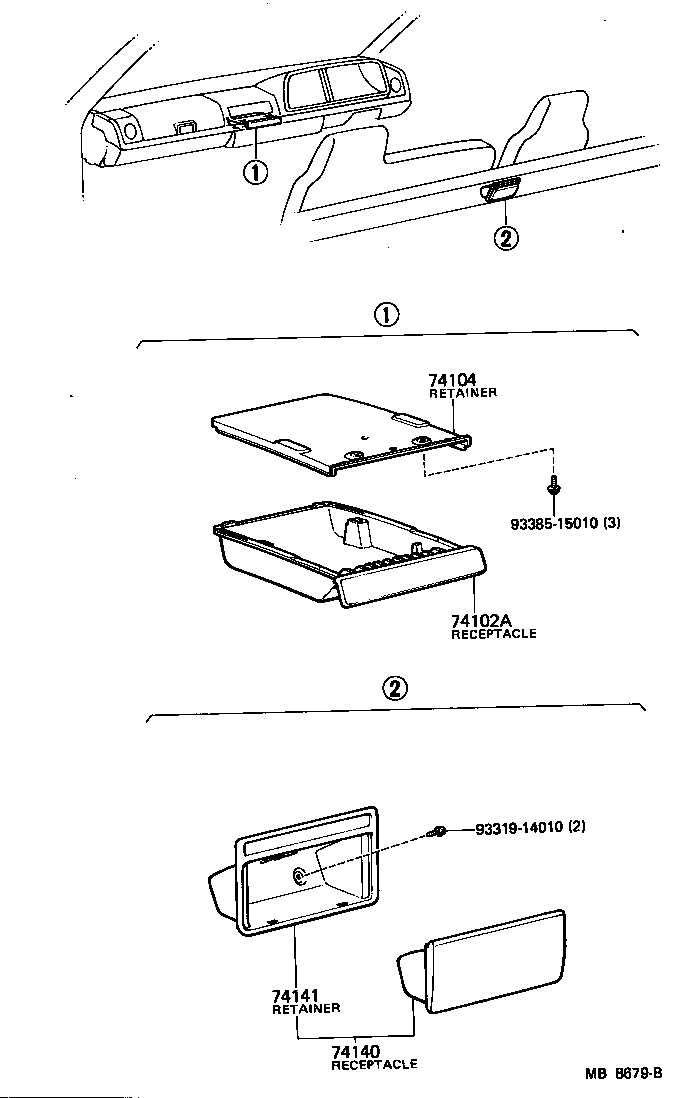

diagram 74102A 74104 74140 74141 9331914010 9338515010
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74101-95013

JY30,LY20,30,RY20,3#

 1
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-95010

JY30,LY20,3#,RY20,3#

 1
Common parts
93319-14010
93385-15010
