RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

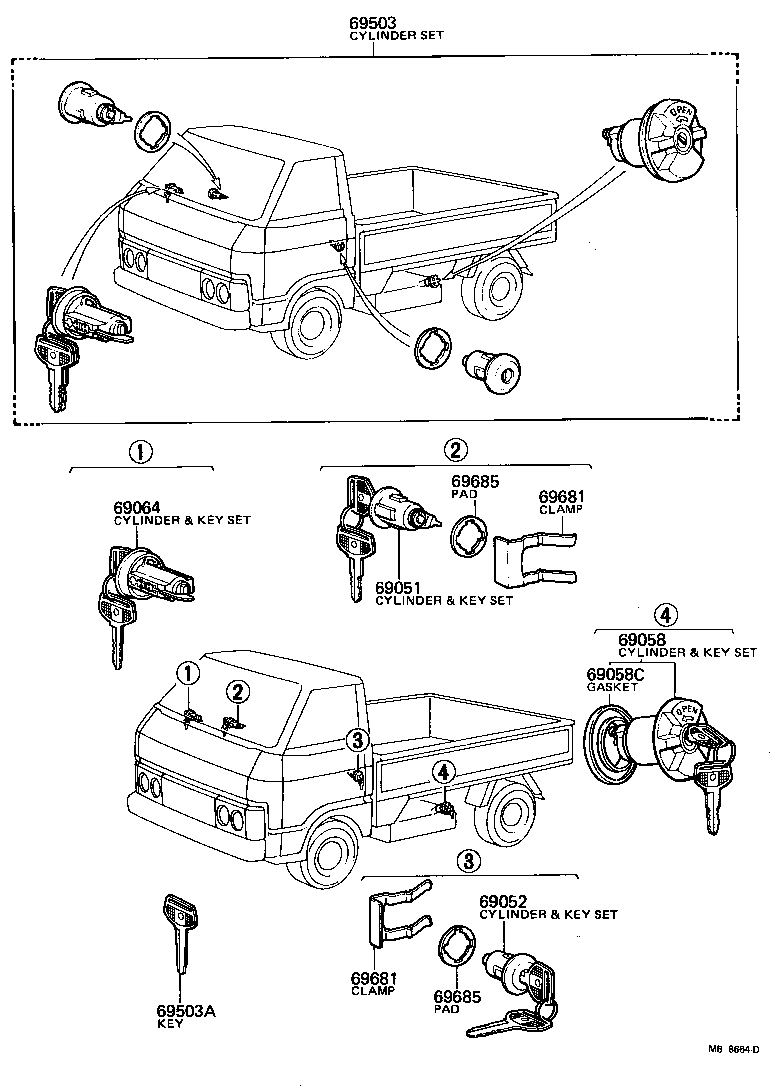

Click highlighted areas on diagram

diagram 69051 69052 69058 69058C 69064 69503 69503A 69681 69681 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95012

JY30,LY20,3#,RY20,3#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95012

JY30,LY20,3#,RY20,3#

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95400

RY20,3#

 1
69058C - GASKET, FUEL FILLER LID CYLINDER
77316-12031

JY30,LY20,3#,RY20,3#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-90742

RY20,3#..LHD

 1
69503 - CYLINDER SET, LOCK
69005-95012

RY20,3#..LHD

 1
69503A - KEY, BLANK
90999-00066

JY30,LY20,3#

MASTER KEY,DOOR & FUEL FILLER LID

 1
90999-00072

JY30,LY20,3#

MASTER KEY,IGNITION SW

 1
90999-00066

RY20,3#

MASTER KEY

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

JY30,LY20,30,RY20,3#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-95402

JY30,LY20,30,RY20,3#

 2
69685 - PAD, LOCK CYLINDER
69685-95400

JY30,LY20,30,RY20,3#

 2
69685 - PAD, LOCK CYLINDER
69685-95400

JY30,LY20,30,RY20,3#

 2
