RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

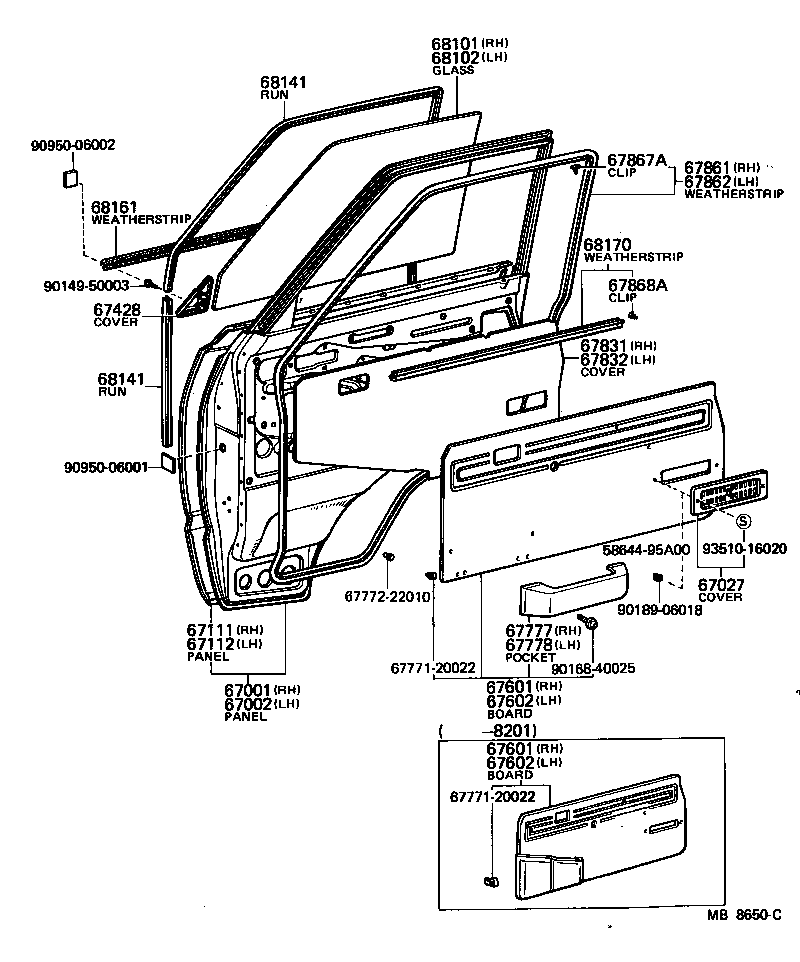

Click highlighted areas on diagram

diagram 5864495A00 67001 67002 67027 67111 67112 67428 67601 67601 67602 67602 6777120022 6777120022 6777222010 67777 67778 67831 67832 67861 67862 67867A 67868A 68101 68102 68141 68141 68161 68170 9014950003 9016840025 9018906018 9095006001 9095006002 9351016020
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-95011

JY30,RY20,3#..LHD

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-95011

JY30,RY20,3#..LHD

 1
67027 - COVER SUB-ASSY, DOOR VENTILATING HOLE
68300-9540006

JY30,LY20,3#,RY20,3#

BROWN,BROWN

 2
67111 - PANEL, FRONT DOOR, OUTER RH
67111-95019

JY30,LY20,30,RY20,3#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-95018

JY30,LY20,30,RY20,3#

 1
67428 - COVER, FRONT DOOR WINDOW CORNER
67427-95011

JY30,LY20,3#,RY20,3#

RH

 1
67428-95011

JY30,LY20,3#,RY20,3#

LH

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-95014

JY30,LY20,30,RY20,3#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-95014

JY30,LY20,30,RY20,3#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-95013

JY30,LY20,30,RY20,3#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-95013

JY30,LY20,30,RY20,3#

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95010

JY30,LY20,3#,RY20,3#

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-95010

JY30,LY20,3#,RY20,3#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-95014

JY30,LY20,3#,RY20,3#

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-95014

JY30,LY20,3#,RY20,3#

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-95401

JY30,LY20,30,RY20,3#

 60
67868A - CLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
90467-08071

JY30,LY20,3#,RY20,3#

 14
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95015

JY30,LY20,3#,RY20,3#

*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95014

JY30,LY20,3#,RY20,3#

*TEM,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-95012

JY30,LY20,3#,RY20,3#

L=1940

 2
68143-95010

JY30,LY20,3#,RY20,3#

L=467

 2
68141 - RUN, FRONT DOOR GLASS
68141-95012

JY30,LY20,3#,RY20,3#

L=1940

 2
68143-95010

JY30,LY20,3#,RY20,3#

L=467

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-95011

JY30,LY20,3#,RY20,3#

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-95010

JY30,LY20,3#,RY20,3#

 2
Common parts
58644-95A00
67771-20022
67772-22010
90149-50003
90168-40025
90189-06018
90950-06001
90950-06002
93510-16020
