RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )T1,TW

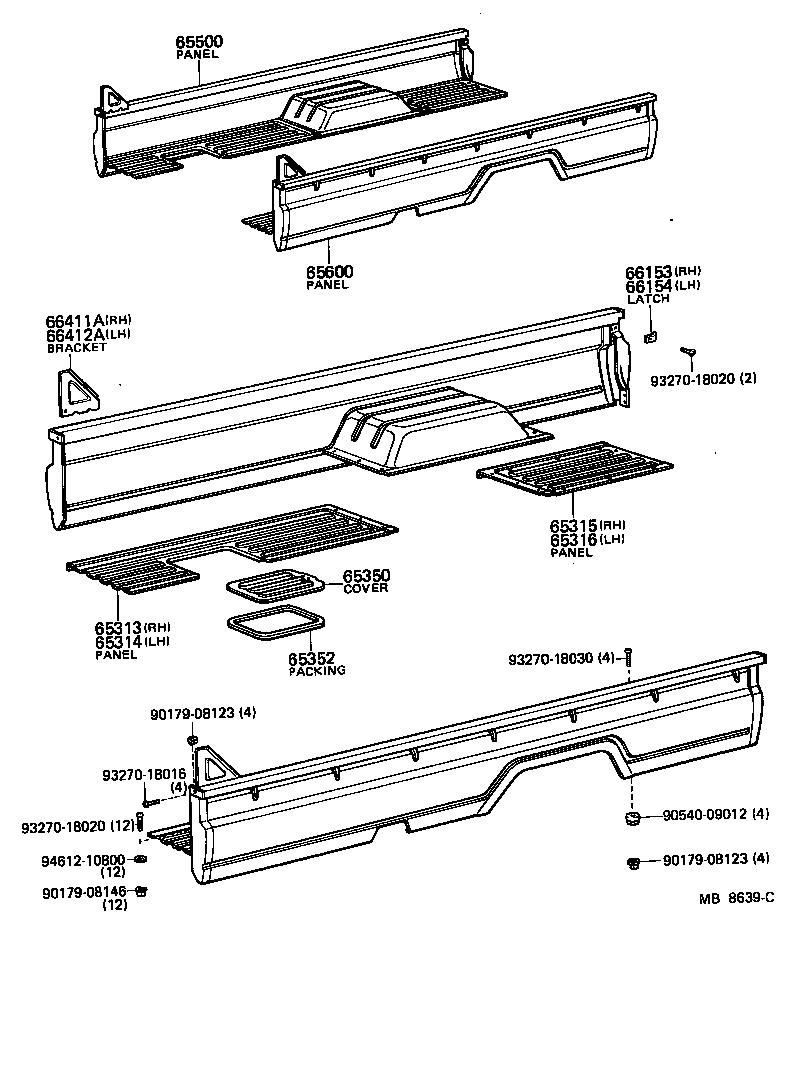

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65350 65352 65500 65600 66153 66154 66411A 66412A 9017908123 9017908123 9017908146 9054009012 9327018016 9327018020 9327018020 9327018030 9461210800
Part # Description Qty Price
65313 - PANEL, FLOOR FRONT CORNER, RH
65313-95021

JY30,RY3#..T1

 1
65314 - PANEL, FLOOR FRONT CORNER, LH
65314-95021

JY30,RY3#..T1

 1
65315 - PANEL, FLOOR REAR CORNER, RH
65315-95405

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-95405

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
65350 - COVER ASSY, BATTERY SERVICE HOLE
65305-95402

LY20..CBU;RY20,3#..T1,TW;JY30,LY30..(T1,TW)..(125,20T)

 1
65352 - PACKING, BATTERY SERVICE HOLE COVER
65352-95400

LY20..CBU;JY30,RY20,3#..T1,TW

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-95042

JY30,RY3#..T1

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-95043

RY3#..T1..15T

 1
66153 - LATCH, TAIL GATE FEMALE, RH
66153-95012

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66153-95012

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
66411A - BRACKET,GUARD FRAME, RH
66411-95018

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
66412A - BRACKET,GUARD FRAME, LH
66412-95017

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
Common parts
90179-08123
90179-08146
90540-09012
93270-18016
93270-18020
93270-18030
94612-10800
