RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )T1,TW

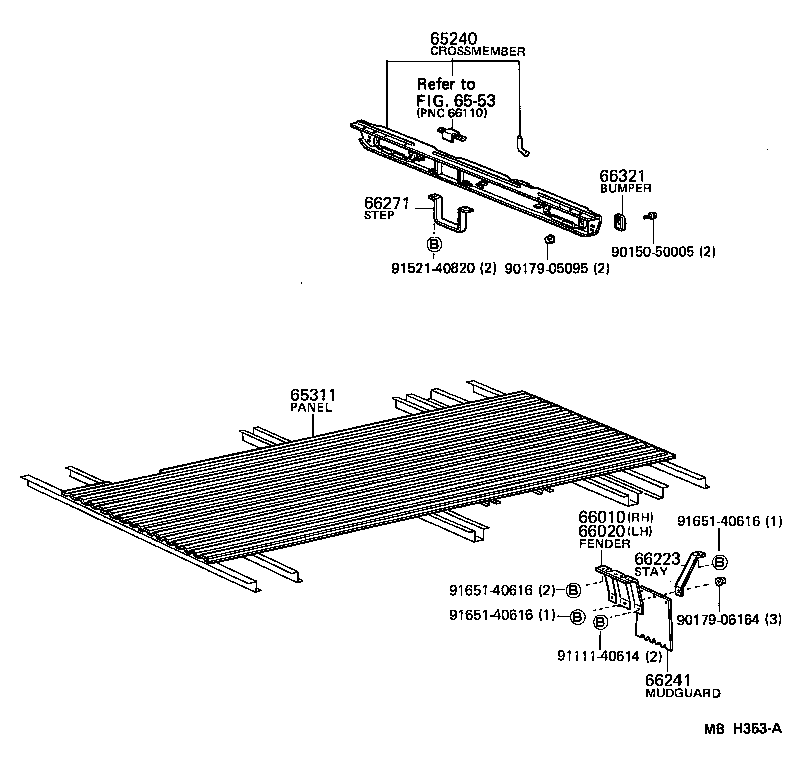

Click highlighted areas on diagram

diagram 65240 65311 6553 66010 66020 66223 66241 66271 66321 9015050005 9017905095 9017906164 9111140614 9152140820 9165140616 9165140616 9165140616
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95028

LY20..CBU;RY20,3#..(T1,TW)..(125,15T)

 1
65311 - PANEL, FLOOR, CENTER
65311-95020

JY30,RY3#..T1

 1
66010 - FENDER ASSY, REAR BODY, REAR RH
66225-95014

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66225-95014

JY30,LY20,3#,RY20,3#..ST..(15T,20T)

 1
66241 - MUDGUARD, REAR
66241-95600

JY30,LY20,3#,RY20,3#..ST..CBU

 2
66271 - STEP, REAR BODY
66271-95017

LY20..CBU;RY20,3#..T1,T2,TW;JY30,LY30..(T1,TW)..(125,20T)

 1
66321 - BUMPER, GATE RUBBER
66321-95406

LY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)

TAIL

 2
Common parts
90150-50005
90179-05095
90179-06164
91111-40614
91521-40820
91651-40616
Linked diagrams
6553
