RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

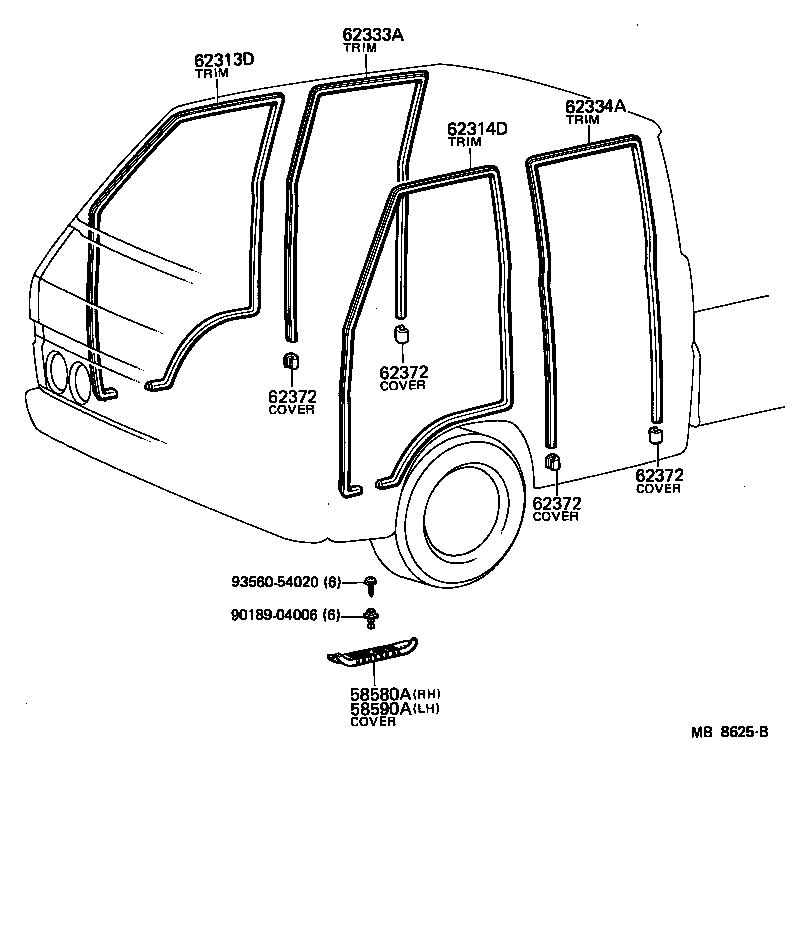

Click highlighted areas on diagram

diagram 58580A 58590A 62313D 62314D 62333A 62334A 62372 62372 62372 62372 9018904006 9356054020
Part # Description Qty Price
58580A - COVER, FRONT FLOOR SIDE, RH
58581-95010

JY30,LY20,30,RY20,3#

 1
58590A - COVER, FRONT FLOOR SIDE, LH
58591-95010

JY30,LY20,30,RY20,3#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95010

JY30,LY20,3#,RY20,3#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95010

JY30,LY20,3#,RY20,3#

 1
Common parts
90189-04006
93560-54020
