RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )15T,20T

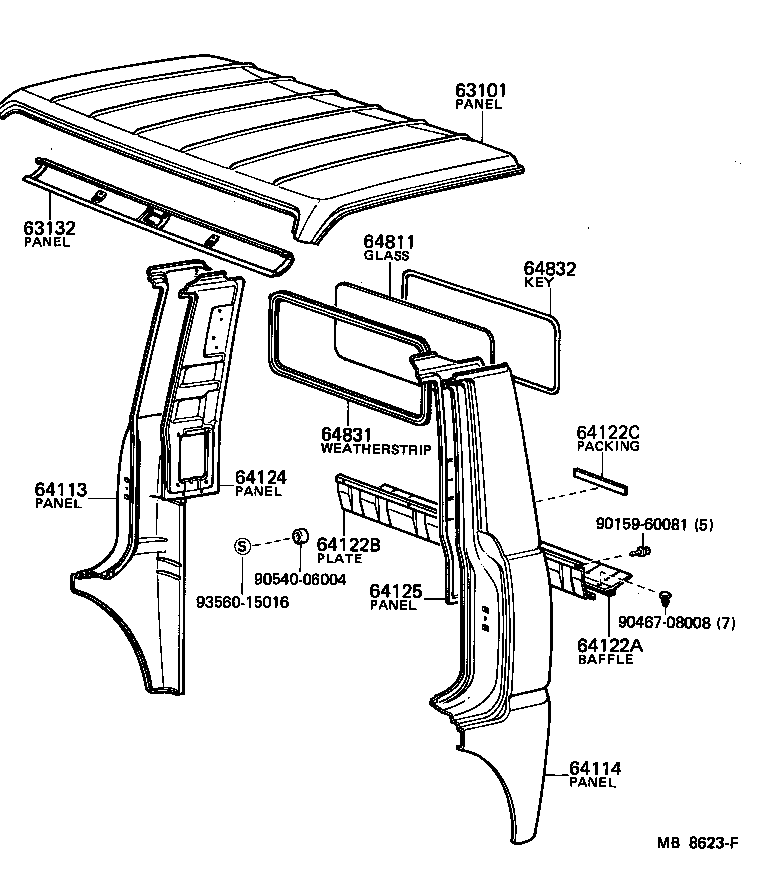

Click highlighted areas on diagram

diagram 63101 63132 64113 64114 64122A 64122B 64122C 64124 64125 64811 64831 64832 9015960081 9046708008 9054006004 9356015016
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95014

JY30,LY20,3#,RY20,3#..15T,20T

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95011

JY30,LY20,30,RY20,3#

 1
63103-95013

JY30,RY20,3#..LHD

W/(VISOR=DRIVER SIDE ONLY)

 1
64113 - PANEL, BACK CORNER, OUTER RH
64103-95012

JY30,LY20,3#,RY20,3#..(15T,20T)..GEN

 1
64114 - PANEL, BACK CORNER, OUTER LH
64104-95012

JY30,LY20,3#,RY20,3#..(15T,20T)..GEN

 1
64122A - BAFFLE, DUST REAR BODY
64122-95015

JY30,LY20,3#,RY20,3#..15T,20T

 1
64122B - PLATE, BAFFLE DUST REAR BODY
64127-95011

JY30,LY20,3#,RY20,3#..15T,20T

 1
64124 - PANEL, BACK CORNER, INSIDE, RH
64107-95013

JY30,LY20,3#,RY20,3#..(15T,20T)..GEN

 1
64125 - PANEL, BACK CORNER, INSIDE, LH
64108-95014

JY30,LY20,3#,RY20,3#..(15T,20T)..GEN

 1
64811 - GLASS, BACK WINDOW
64811-95015

JY30,LY20,3#,RY20,3#..15T,20T

*TEM,T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95015

JY30,LY20,3#,RY20,3#..15T,20T

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

JY30,LY20,3#,RY20,3#..15T,20T

 1
Common parts
90159-60081
90467-08008
90540-06004
93560-15016
