RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )LHD

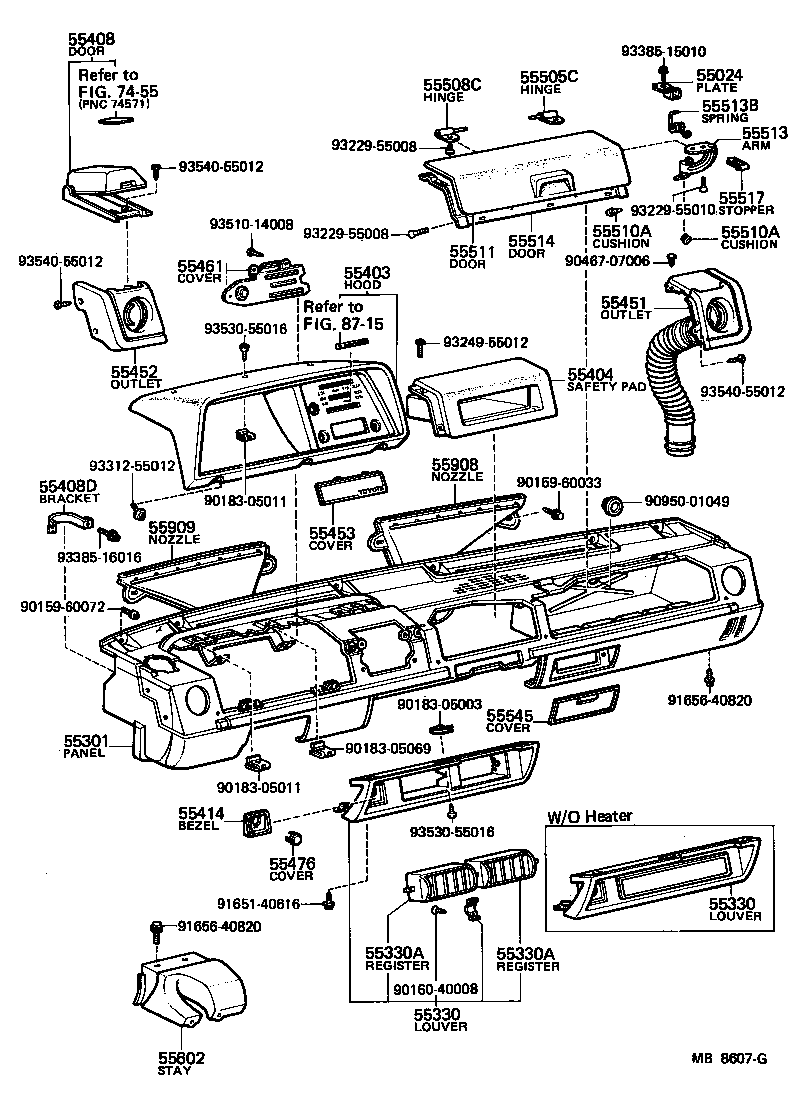

Click highlighted areas on diagram

diagram 55024 55301 55330 55330 55330A 55330A 55403 55404 55408 55408D 55414 55451 55452 55453 55461 55476 55505C 55508C 55510A 55510A 55511 55513 55513B 55514 55517 55545 55602 55908 55909 7455 8715 9015960033 9015960072 9016040008 9018305003 9018305011 9018305011 9018305069 9046707006 9095001049 9165140616 9165640820 9165640820 9322955008 9322955008 9322955010 9324955012 9331255012 9338515010 9338516016 9351014008 9353055016 9353055016 9354055012 9354055012 9354055012
Part # Description Qty Price
55024 - PLATE SUB-ASSY, TORSION SPRING
55024-95012

JY30,LY20,3#,RY20,3#

 1
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-95022

JY30,RY20,3#..LHD

 1
55330 - LOUVER ASSY, CENTER VENTILATOR
55460-95013

JY30,LY20,30,RY20,3#..GEN

W/O HEATER

 1
55460-95012

JY30,LY20,30,RY20,3#

 1
55330 - LOUVER ASSY, CENTER VENTILATOR
55460-95013

JY30,LY20,30,RY20,3#..GEN

W/O HEATER

 1
55460-95012

JY30,LY20,30,RY20,3#

 1
55330A - REGISTER, CENTER VENTILATOR, LOUVER
55065-20030

JY30,LY20,3#,RY20,3#

 2
55330A - REGISTER, CENTER VENTILATOR, LOUVER
55065-20030

JY30,LY20,3#,RY20,3#

 2
55403 - HOOD SUB-ASSY, METER
55421-95011

JY30,RY20,3#..LHD

 1
55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
55410-95054

JY30,LY20,30,RY20,3#

 1
55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE
55402-95011

JY30,RY20,3#..LHD

 1
55408D - BRACKET SUB-ASSY, RESERVOIR
47202-95010

JY30,LY20,3#,RY20,3#

 1
55414 - BEZEL, CIGAR LIGHTER HOLE
55414-95011

JY30,LY20,3#,RY20,3#

 1
55451 - OUTLET, AIR OUTER, RH
55408-95012

JY30,RY20,3#..LHD

 1
55452 - OUTLET, AIR OUTER, LH
55409-95011

JY30,RY20,3#..LHD

 1
55453 - COVER, RADIO TUNER OPENING
55463-20041

JY30,LY20,3#,RY20,3#..ST..CBU

 1
55461 - COVER, HEATER CONTROL HOLE
55465-95011

JY30,RY20,3#..LHD

 1
55476 - COVER, CIGARETTE LIGHTER HOLE
55476-2201006

JY30,LY20,3#,RY20,3#

BROWN,BROWN

 1
55505C - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR MALE, RH
55505-95012

JY30,LY20,3#,RY20,3#

 1
55508C - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR MALE, LH
55508-95010

JY30,LY20,3#,RY20,3#

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55536-95011

JY30,LY20,3#,RY20,3#

DOOR

 3
90541-05005

JY30,LY20,3#,RY20,3#

ARM

 1
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55536-95011

JY30,LY20,3#,RY20,3#

DOOR

 3
90541-05005

JY30,LY20,3#,RY20,3#

ARM

 1
55511 - DOOR, GLOVE COMPARTMENT
55501-95012

JY30,RY20,3#..LHD

 1
55513 - ARM, GLOVE COMPARTMENT DOOR CHECK
55513-95011

JY30,RY20,3#..LHD

 1
55513B - SPRING, TORSION(FOR GLOVE COMPARTMENT DOOR CHECK ARM)
90508-23020

JY30,RY20,3#..LHD

 1
55514 - DOOR, GLOVE COMPARTMENT, INNER
55512-95013

JY30,RY20,3#..LHD

 1
55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM
55517-95010

JY30,LY20,30,RY20,3#

 1
55545 - COVER, FUSE BOX OPENING
55806-95010

JY30,LY20,30,RY20,3#

 1
55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER
55602-95029

JY30,RY20,3#..LHD

 1
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-95010

JY30,LY20,3#,RY20,3#

W/HEATER

 1
55909 - NOZZLE SUB-ASSY, DEFROSTER, LH
55960-95011

JY30,RY20,3#..LHD

 1
Common parts
90159-60033
90159-60072
90160-40008
90183-05003
90183-05011
90183-05069
90467-07006
90950-01049
91651-40616
91656-40820
93229-55008
93229-55010
93249-55012
93312-55012
93385-15010
93385-16016
93510-14008
93530-55016
93540-55012
Linked diagrams
7455
8715
