RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

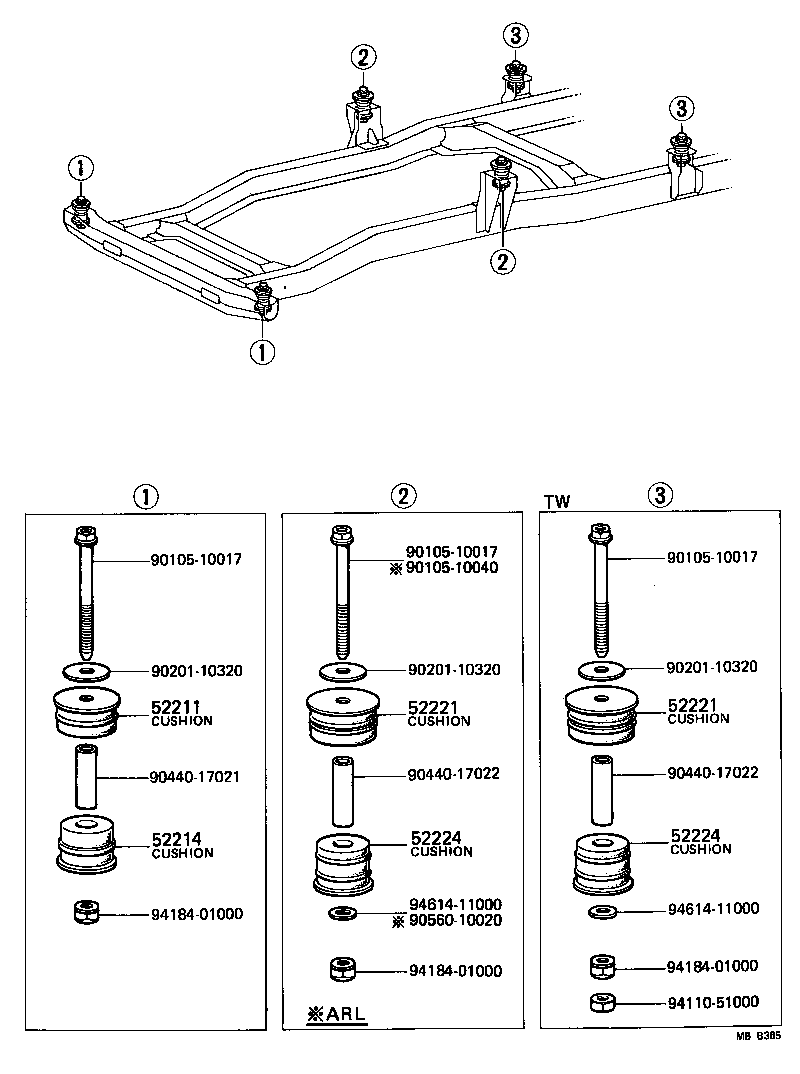

Click highlighted areas on diagram

diagram 52211 52214 52221 52221 52224 52224 9010510017 9010510017 9010510017 9010510040 9020110320 9020110320 9020110320 9044017021 9044017022 9044017022 9056010020 9411051000 9418401000 9418401000 9418401000 9461411000 9461411000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
52201-25020

JY30,LY20,3#,RY20,3#

 2
52214 - CUSHION, BODY MOUNT, NO.1 LOWER
52202-25020

JY30,LY20,3#,RY20,3#

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-25030

JY30,LY20,3#,RY20,3#..15T,20T

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-25030

JY30,LY20,3#,RY20,3#..15T,20T

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-25020

JY30,LY20,3#,RY20,3#..15T,20T

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-25020

JY30,LY20,3#,RY20,3#..15T,20T

 2
Common parts
90105-10017
90105-10040
90201-10320
90440-17021
90440-17022
90560-10020
94110-51000
94184-01000
94614-11000
