RY31L-JD (1979)
Toyota Toyoace
Production
Mar 1979
-
Jan 1982
Engine
5R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7903- )

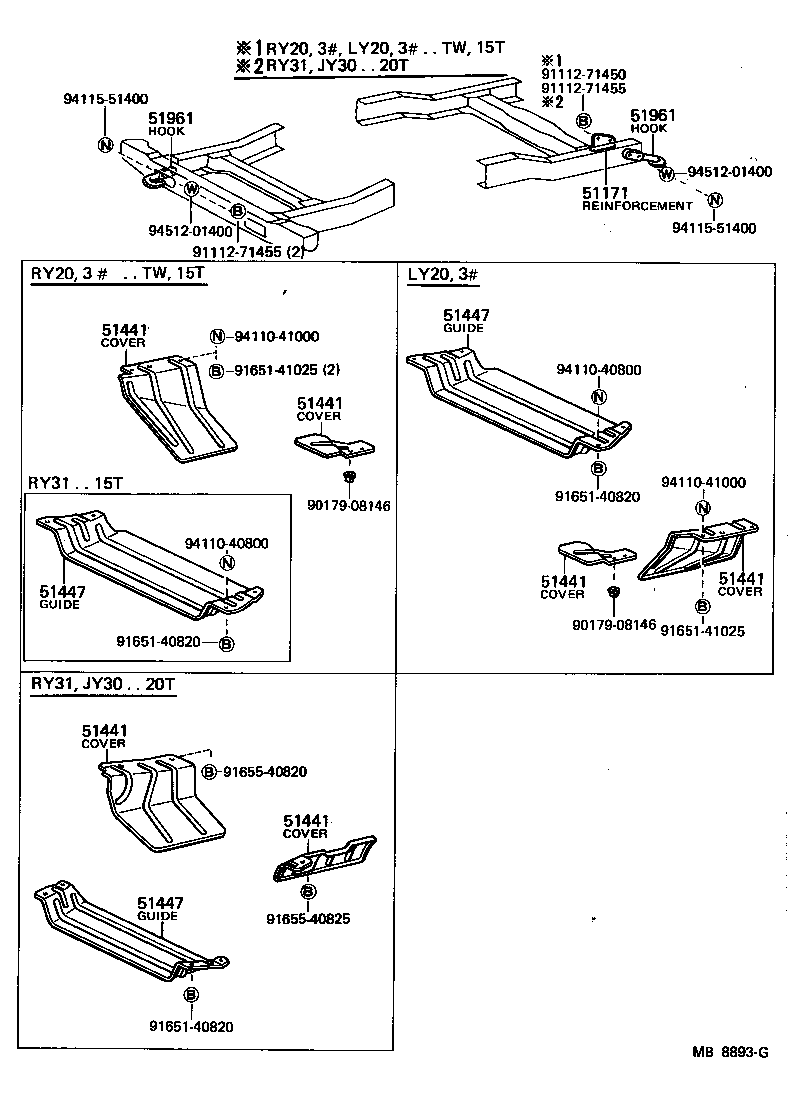

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51442-25030 |
RY20,3#..125,15T LH |
1 | ||
| 51442-25010 |
LY20,3# LH,RR |
1 | ||
| 51441-25130 |
RY20,3#..125,15T RH |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51442-25030 |
RY20,3#..125,15T LH |
1 | ||
| 51442-25010 |
LY20,3# LH,RR |
1 | ||
| 51441-25130 |
RY20,3#..125,15T RH |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51442-25030 |
RY20,3#..125,15T LH |
1 | ||
| 51442-25010 |
LY20,3# LH,RR |
1 | ||
| 51441-25130 |
RY20,3#..125,15T RH |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51442-25030 |
RY20,3#..125,15T LH |
1 | ||
| 51442-25010 |
LY20,3# LH,RR |
1 | ||
| 51441-25130 |
RY20,3#..125,15T RH |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51442-25030 |
RY20,3#..125,15T LH |
1 | ||
| 51442-25010 |
LY20,3# LH,RR |
1 | ||
| 51441-25130 |
RY20,3#..125,15T RH |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51442-25030 |
RY20,3#..125,15T LH |
1 | ||
| 51442-25010 |
LY20,3# LH,RR |
1 | ||
| 51441-25130 |
RY20,3#..125,15T RH |
1 | ||
| 51447 - GUIDE, ENGINE UNDER COVER AIR | ||||
| 51447-25040 |
LY20,30,RY31..15T |
1 | ||
| 51447 - GUIDE, ENGINE UNDER COVER AIR | ||||
| 51447-25040 |
LY20,30,RY31..15T |
1 | ||
| 51447 - GUIDE, ENGINE UNDER COVER AIR | ||||
| 51447-25040 |
LY20,30,RY31..15T |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36010 |
JY30,LY20,3#,RY20,3# RR |
1 | ||
| 51961-36020 |
JY30,LY20,3#,RY20,3# FR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36010 |
JY30,LY20,3#,RY20,3# RR |
1 | ||
| 51961-36020 |
JY30,LY20,3#,RY20,3# FR |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91112-71450 | ||||
| 91112-71455 | ||||
| 91651-40820 | ||||
| 91651-41025 | ||||
| 91655-40820 | ||||
| 91655-40825 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||
