RY31L-JD (1979)
Toyota Toyoace
(7903- )ST..125,15T

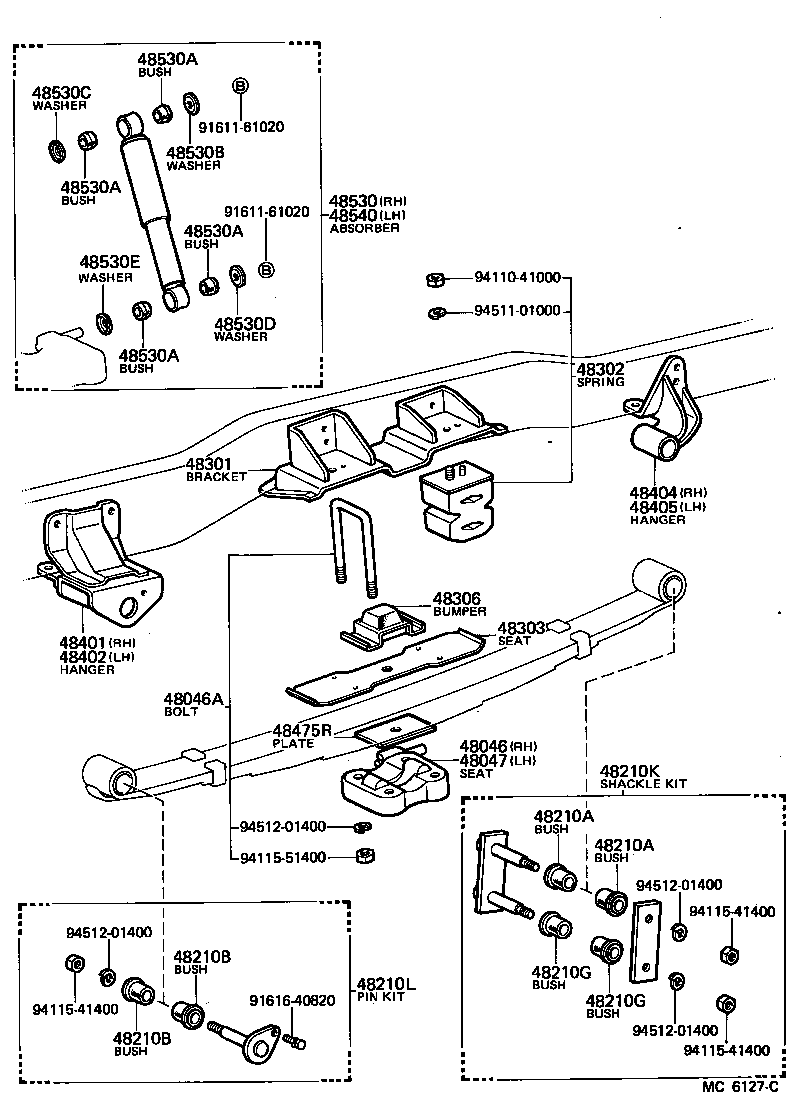

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-25050 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14172 |
LY20,3#,RY20,3#..125,15T L=162,L=162 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-25050 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18005 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-25010 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04482-25010 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 48301 - BRACKET SUB-ASSY, HOLLOW SPRING | ||||
| 48309-25010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU LH |
1 | ||
| 48301-25020 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU RH |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-29015 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
4 | ||
| 48303 - SEAT SUB-ASSY, HOLLOW SPRING | ||||
| 48317-25020 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-25050 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-25060 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-25060 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-25040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-25040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-25010 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29605 |
LY20,30,RY20,3#..15T |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03007 |
JY30,LY20,30,RY20,3# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03007 |
LY20,30,RY20,3#..125,15T |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29605 |
LY20,30,RY20,3#..15T |
1 | ||
| Common parts | ||||
| 91611-61020 | ||||
| 91616-40820 | ||||
| 94110-41000 | ||||
| 94115-41400 | ||||
| 94115-51400 | ||||
| 94511-01000 | ||||
| 94512-01400 | ||||
(7903- )ST..125,15T

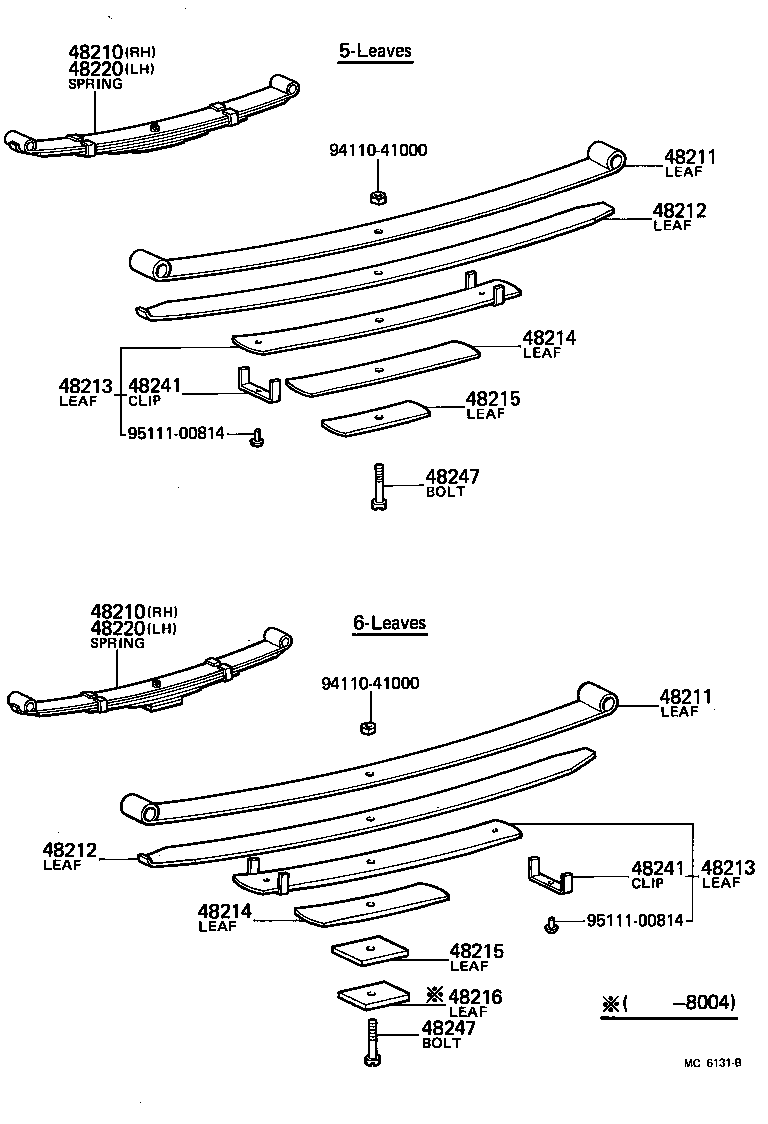

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25210 |
RY20,3#..LHD..15T |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-25210 |
RY20,3#..LHD..15T |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36070 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-36070 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
4 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-25160 |
LY20,3#,RY20,3#..ST..15T..CBU |
2 | ||
| Common parts | ||||
| 94110-41000 | ||||
| 95111-00814 | ||||
