RY31L-JD (1979)
Toyota Toyoace
(7903- )

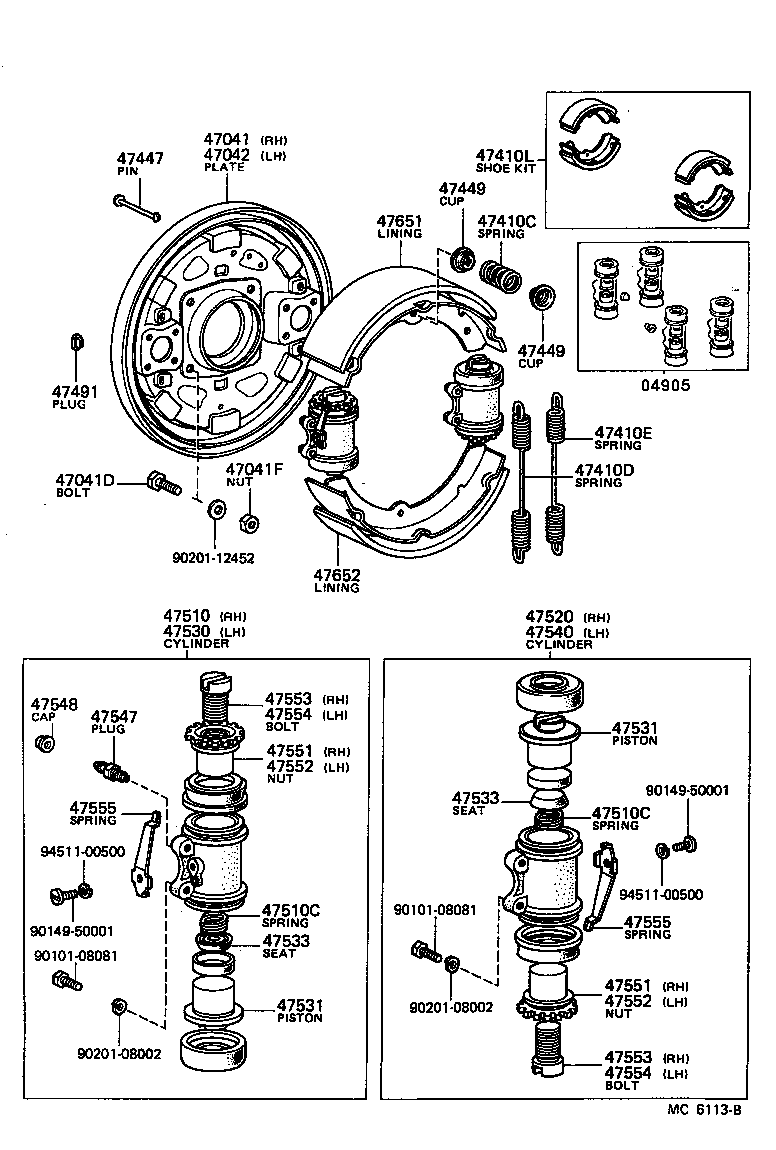

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04905 - CUP KIT, FRONT WHEEL CYLINDER | ||||
| 04905-25020 |
JY30,LY20,3#,RY20,3# ID=31.75 |
1 | ||
| 47041 - PLATE SUB-ASSY, BRAKE BACKING, FRONT RH | ||||
| 47041-25030 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47041D - BOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 90101-12021 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 47041F - NUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING) | ||||
| 94115-71200 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 47042 - PLATE SUB-ASSY, BRAKE BACKING, FRONT LH | ||||
| 47042-25020 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47410C - SPRING(FOR FRONT BRAKE SHOE HOLD DOWN) | ||||
| 90501-20756 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 47410D - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 47410E - SPRING, TENSION(FOR FRONT BRAKE SHOE RETURN) | ||||
| 90506-26009 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 47410L - SHOE KIT, FRONT BRAKE | ||||
| 04494-25020 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 47447 - PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47447-20010 |
LY20,3#,RY20,3#..125,15T |
4 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 47449 - CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE) | ||||
| 47449-30020 |
JY30,LY20,3#,RY20,3# |
8 | ||
| 47491 - PLUG, HOLE(FOR FRONT BRAKE) | ||||
| 47491-36010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47510 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER | ||||
| 47510-29185 |
LY20,3#,RY20,3#..125,15T ID=31.75 |
1 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-10759 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47510C - SPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER) | ||||
| 90501-10759 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47520 - CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER) | ||||
| 47520-29115 |
JY30,LY20,3#,RY20,3# ID=31.75 |
1 | ||
| 47530 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER | ||||
| 47530-29185 |
LY20,3#,RY20,3#..125,15T ID=31.75 |
1 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-60010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47531 - PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE) | ||||
| 47531-60010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-25010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47533 - SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE) | ||||
| 47533-25010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47540 - CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER) | ||||
| 47540-29115 |
JY30,LY20,3#,RY20,3# ID=31.75 |
1 | ||
| 47547 - PLUG, BLEEDER(FOR FRONT DRUM BRAKE) | ||||
| 47547-12010 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 47548 - CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT) | ||||
| 31478-30010 |
JY30,LY20,3#,RY20,3# |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-25050 |
JY30,LY20,3#,RY20,3# LH SCREW |
2 | ||
| 47551 - NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE | ||||
| 47551-25050 |
JY30,LY20,3#,RY20,3# LH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-25050 |
JY30,LY20,3#,RY20,3# RH SCREW |
2 | ||
| 47552 - NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE | ||||
| 47552-25050 |
JY30,LY20,3#,RY20,3# RH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36021 |
JY30,LY20,3#,RY20,3# LH SCREW |
2 | ||
| 47553 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAK | ||||
| 47553-36021 |
JY30,LY20,3#,RY20,3# LH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36021 |
JY30,LY20,3#,RY20,3# RH SCREW |
2 | ||
| 47554 - BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAK | ||||
| 47554-36021 |
JY30,LY20,3#,RY20,3# RH SCREW |
2 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-25010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47555 - SPRING, ADJUSTER LOCK(FOR FRONT BRAKE) | ||||
| 47555-25010 |
JY30,LY20,3#,RY20,3# |
4 | ||
| 47651 - LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47651-25011 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 47652 - LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47651-25011 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| Common parts | ||||
| 90101-08081 | ||||
| 90149-50001 | ||||
| 90201-08002 | ||||
| 90201-12452 | ||||
| 94511-00500 | ||||
