RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903-8201)GEN ; (8201- )LHD

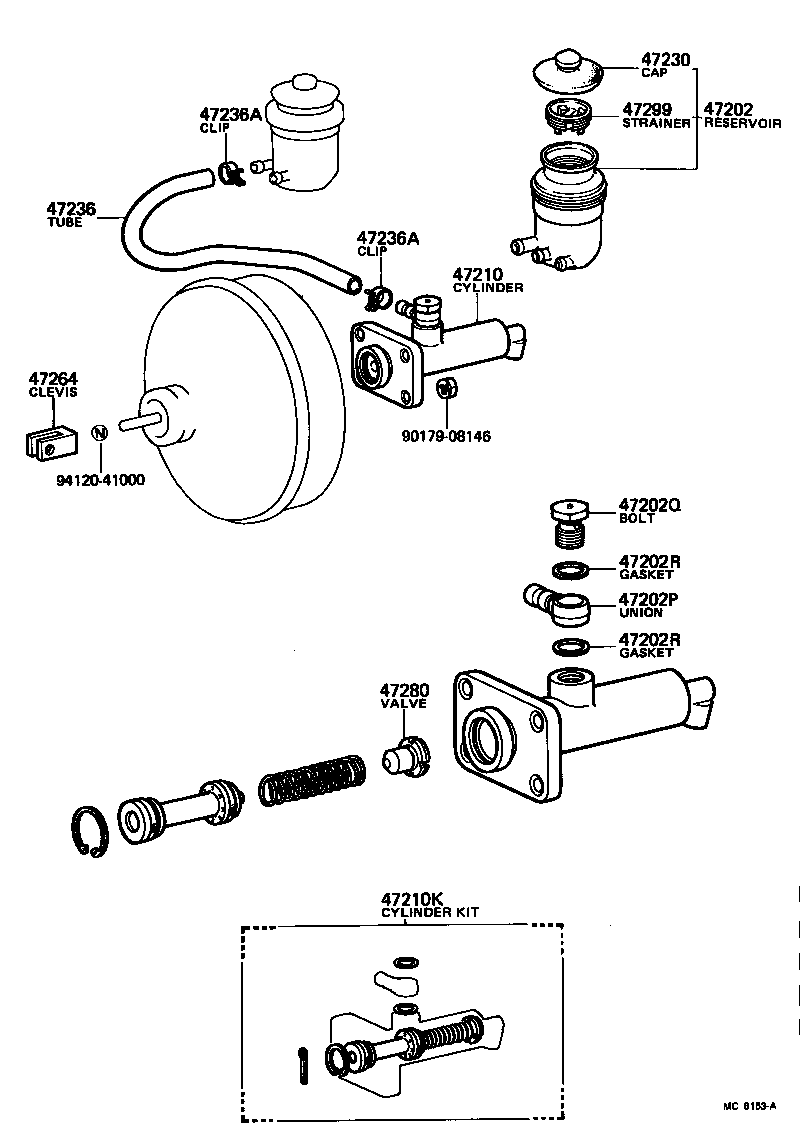

Click highlighted areas on diagram

diagram 47202 47202P 47202Q 47202R 47202R 47210 47210K 47230 47236 47236A 47236A 47264 47280 47299 9017908146 9412041000
Part # Description Qty Price
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-26031

JY30,LY20,30,RY20,3#

 1
47220-26032

JY30,LY20,30,RY20,3#

 1
47220-25021

JY30,LY20,30,RY20,3#..GEN

 1
47220-25022

JY30,LY20,30,RY20,3#..GEN

 1
47220-25020

JY30,LY20,30,RY20,3#..GEN

 1
47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)
90405-13137

JY30,LY20,3#,RY20,3#

 1
47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90401-16002

JY30,LY20,3#,RY20,3#

 1
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242

JY30,LY20,3#,RY20,3#

 2
47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)
90430-16242

JY30,LY20,3#,RY20,3#

 2
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-25050

JY30,LY20,30,RY20,3#..GEN

 1
47210K - CYLINDER KIT, BRAKE MASTER
04471-25040

JY30,LY20,30,RY20,3#..GEN

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
31440-35010

JY30,LY20,30,RY20,3#

 1
47236 - TUBE, RESERVOIR BRAKE
47234-25050

JY30,RY20,3#..LHD

 1
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16141

JY30,LY20,3#,RY20,3#

 2
47236A - CLIP(FOR RESERVOIR TUBE)
90467-16141

JY30,LY20,3#,RY20,3#

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-26020

JY30,LY20,3#,RY20,3#

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-35020

JY30,LY20,30,RY20,3#..GEN

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-22010

JY30,LY20,30,RY20,3#

 1
47299-36010

JY30,LY20,30,RY20,3#

 1
Common parts
90179-08146
94120-41000
