RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )

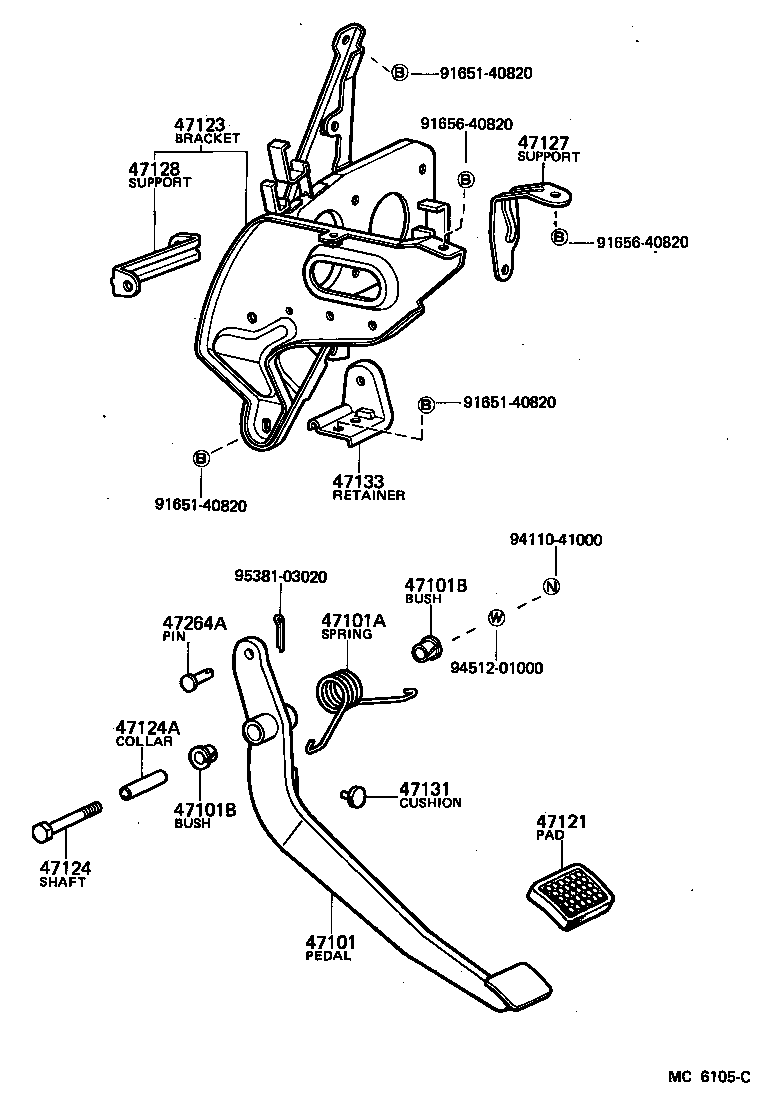

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47127 47128 47131 47133 47264A 9165140820 9165140820 9165140820 9165640820 9165640820 9411041000 9451201000 9538103020
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-25070

JY30,RY20,3#..LHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90508-40005

JY30,LY20,3#,RY20,3#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

JY30,LY20,3#,RY20,3#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13192

JY30,LY20,3#,RY20,3#

 2
47121 - PAD, BRAKE PEDAL
31321-25030

JY30,LY20,3#,RY20,3#

 1
47123 - BRACKET, BRAKE PEDAL
55160-95022

JY30,RY20,3#..LHD

 1
47124 - SHAFT, BRAKE PEDAL
91111-51070

JY30,LY20,3#,RY20,3#

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10004

JY30,LY20,3#,RY20,3#

 1
47127 - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER
55105-95013

JY30,LY20,30,RY20,3#

 1
47128 - SUPPORT SUB-ASSY, PEDAL BRACKET
55172-95012

JY30,LY20,3#,RY20,3#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

JY30,LY20,3#,RY20,3#

 1
47133 - RETAINER, PEDAL BRACKET, LOWER
55702-95010

JY30,LY20,3#,RY20,3#

 1
47264A - PIN(FOR PUSH ROD)
90240-10015

JY30,LY20,3#,RY20,3#

 1
Common parts
91651-40820
91656-40820
94110-41000
94512-01000
95381-03020
