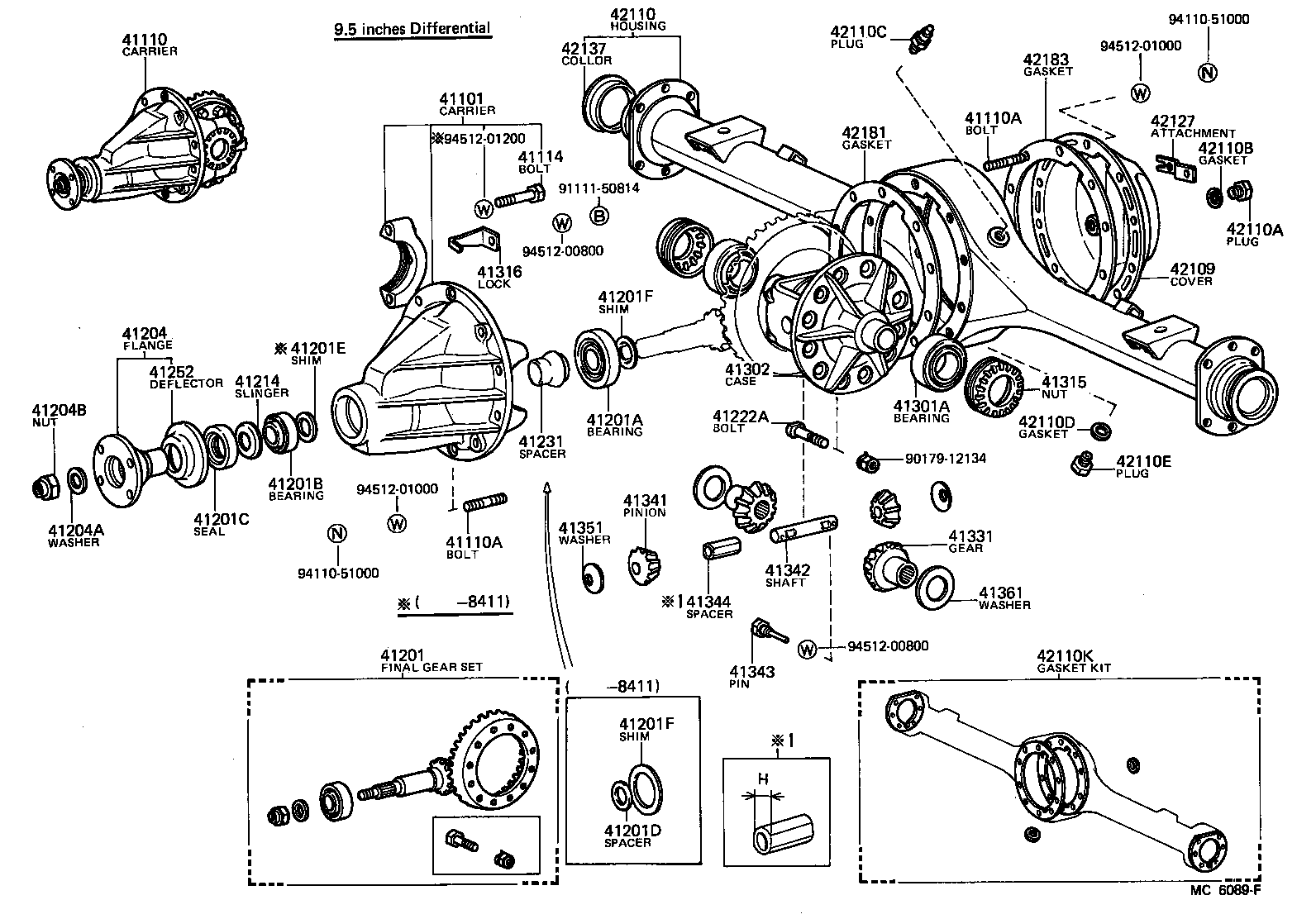

RY31L-JD (1979)
Toyota Toyoace
(7903- )ST..125,15T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-25010 |
LY20,3#,RY31..125,15T |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-25110 |
RY31..15T R=37:7=5.286 |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU L=37,S=12 & 25,L=37,S=16&12 |
8 | ||
| 90116-10104 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU L=50,S=12 & 18,L=50,S=18&12 |
2 | ||
| 90116-10107 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU L=32,S=12 & 20,COVER,L=32,S=15&12 |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10103 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU L=37,S=12 & 25,L=37,S=16&12 |
8 | ||
| 90116-10104 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU L=50,S=12 & 18,L=50,S=18&12 |
2 | ||
| 90116-10107 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU L=32,S=12 & 20,COVER,L=32,S=15&12 |
10 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 41114-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU *12-1.5PX67-21 |
4 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29375 |
LY20,3#,RY31..15T R=37:7 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 97619-30308 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 97619-30306 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90560-30187 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.83-2.85,T=2.84 |
1 | ||
| 90560-30192 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.95-2.97,T=2.96 |
1 | ||
| 90560-30191 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.92-2.94,T=2.93 |
1 | ||
| 90560-30186 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.80-2.82,T=2.81 |
1 | ||
| 90560-30199 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.98-3.00,T=2.99 |
1 | ||
| 90560-30188 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.86-2.88,T=2.87 |
1 | ||
| 90560-30185 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.77-2.79,T=2.78 |
1 | ||
| 90560-30184 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.74-2.76,T=2.75 |
1 | ||
| 90560-30190 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=2.89-2.91,T=2.90 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-30035 |
LY20,3#,RY20,3#..125,15T T=0.25,T=0.25 |
4 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-68001 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.25,T=0.25 |
2 | ||
| 90564-68002 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.30,T=0.30 |
2 | ||
| 90564-68003 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.35,T=0.35 |
2 | ||
| 90564-68004 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.40,T=0.40 |
2 | ||
| 90564-68005 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.45,T=0.45 |
2 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-68001 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.25,T=0.25 |
2 | ||
| 90564-68002 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.30,T=0.30 |
2 | ||
| 90564-68003 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.35,T=0.35 |
2 | ||
| 90564-68004 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.40,T=0.40 |
2 | ||
| 90564-68005 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU T=0.45,T=0.45 |
2 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-60010 |
RY31..15T |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-20005 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-20001 |
LY20,3#,RY20,3#..125,15T |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-30010 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 41226-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
12 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 37341-30010 |
LY20,3#,RY20,3#..125,15T OD=92 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-45066 |
LY20,3#,RY20,3#..125,15T |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-36010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-30010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-30010 |
LY20,3#,RY20,3#..125,15T SINGLE TYPE |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35020 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU N=16 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-55012 |
JY30,LY20,3#,RY20,3#..ST..CBU N=10 |
4 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-55010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-55010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 41344 - SPACER, DIFFERENTIAL PINION SHAFT | ||||
| 41345-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU H=30.2 |
1 | ||
| 41344-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU H=29.8 |
1 | ||
| 41348-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU H=29.4 |
1 | ||
| 41347-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU H=29.0 |
1 | ||
| 41346-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU H=30.6 |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-35011 |
JY30,LY20,3#,RY20,3#..ST..CBU |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60010 |
JY30,LY20,3#,RY20,3#..ST..CBU T=1.60,T=1.60 |
2 | ||
| 41361-60040 |
JY30,LY20,3#,RY20,3#..ST..CBU T=2.05,T=2.05 |
2 | ||
| 41361-60020 |
JY30,LY20,3#,RY20,3#..ST..CBU T=1.75,T=1.75 |
2 | ||
| 41361-60030 |
JY30,LY20,3#,RY20,3#..ST..CBU T=1.90,T=1.90 |
2 | ||
| 42109 - COVER SUB-ASSY, REAR AXLE HOUSING | ||||
| 42109-60020 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-25100 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
LY20,30,RY20,3#..125,15T |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
JY30,LY20,3#,RY20,3# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-35040 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 42127 - ATTACHMENT, BRAKE TUBE CLAMP, NO.1 | ||||
| 42127-25010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 42137 - COLLAR, REAR AXLE HOUSING SIDE | ||||
| 42137-55010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-36010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| 42183 - GASKET, REAR AXLE HOUSING COVER | ||||
| 42183-35010 |
LY20,3#,RY20,3#..ST..(125,15T)..CBU |
1 | ||
| Common parts | ||||
| 90179-12134 | ||||
| 91111-50814 | ||||
| 94110-51000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
