RY31L-JD (1979)

Toyota Toyoace

Production Mar 1979 - Jan 1982
Engine 5R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7903- )12R,5R

Click highlighted areas on diagram

diagram 23300 23921 23921 9165140816
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-26060

12R,5R..RY20,3#

 1
23921 - SUPPORT, FUEL FILTER
90461-08345

12R,5R..RY20,3#

 1
23921 - SUPPORT, FUEL FILTER
90461-08345

12R,5R..RY20,3#

 1
Common parts
91651-40816

(7903-8308)L

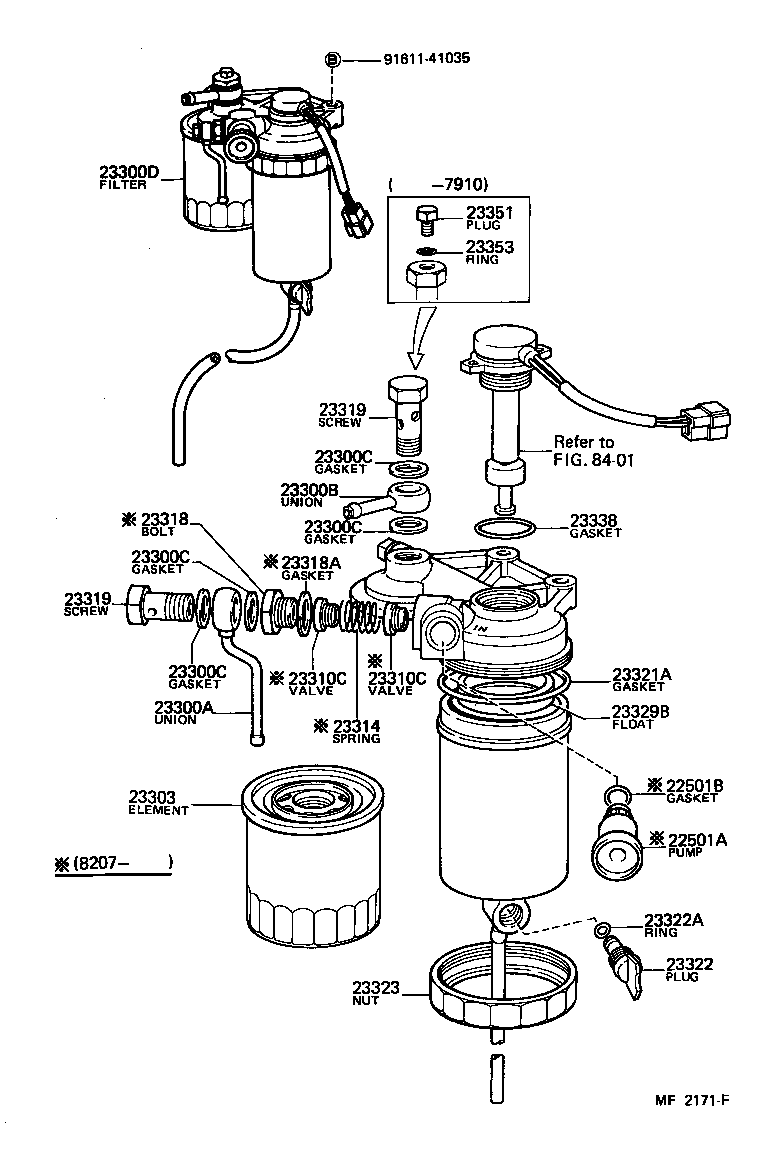

Click highlighted areas on diagram

diagram 22501A 22501B 23300A 23300B 23300C 23300C 23300C 23300C 23300D 23303 23310C 23310C 23314 23318 23318A 23319 23319 23321A 23322 23322A 23323 23329B 23338 23351 23353 8401 9161141035
Part # Description Qty Price
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

L,2L..LY20,3#

 5
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

L,2L..LY20,3#

 5
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

L,2L..LY20,3#

 5
23300C - GASKET, NIPPLE UNION(FOR FUEL)
22447-47030

L,2L..LY20,3#

 5
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

L,2L..LY20,3#

 1
Common parts
91611-41035
Linked diagrams
8401
